Ansaetze#

.. or Ansatzes as preferred by the english community. Anyway, we got various of the most-used Ansaetze implemented in this package.

You can load them manually by

from qml_essentials.ansaetze import Ansaetze
all_ansaetze = Ansaetze.get_available()

for ansatz in all_ansaetze:
    print(ansatz.__name__)

See the Overview at the end of this document for more details. However, usually you just want reference to them (by name) when instantiating a model. To get an overview of all the available Ansaetze, checkout the references.

Custom Ansatz#

If you want to implement your own ansatz, you can do so by inheriting from the Circuit class:

import pennylane as qml
import pennylane.numpy as np
from qml_essentials.ansaetze import Circuit
from qml_essentials.ansaetze import PulseInformation as pinfo
from typing import Optional

class MyHardwareEfficient(Circuit):
    @staticmethod
    def n_params_per_layer(n_qubits: int) -> int:
        return n_qubits * 3

    @staticmethod
    def n_pulse_params_per_layer(n_qubits: int) -> int:
        n_params_RY = pinfo.num_params("RY")
        n_params_RZ = pinfo.num_params("RZ")
        n_params_CZ = pinfo.num_params("CZ")

        n_pulse_params = (num_params_RY + num_params_RZ) * n_qubits
        n_pulse_params += num_params_CZ * (n_qubits - 1)

        return pulse_params

    @staticmethod
    def get_control_indices(n_qubits: int) -> Optional[np.ndarray]:
        return None

    @staticmethod
    def build(w: np.ndarray, n_qubits: int, **kwargs):
        w_idx = 0
        for q in range(n_qubits):
            qml.RY(w[w_idx], wires=q, **kwargs)
            w_idx += 1
            qml.RZ(w[w_idx], wires=q, **kwargs)
            w_idx += 1

        if n_qubits > 1:
            for q in range(n_qubits - 1):
                qml.CZ(wires=[q, q + 1], **kwargs)

and then pass it to the model:

from qml_essentials.model import Model

model = Model(
    n_qubits=2,
    n_layers=1,
    circuit_type=MyHardwareEfficient,
)

The **kwargs allow both noise simulation and pulse simulation. A custom Circuit should define n_pulse_params_per_layer if it will use pulse simulation at some point, but may be omitted otherwise.

Check out page Usage on how to proceed from here.

Custom Encoding#

On model instantiation, you can choose how your inputs are encoded. The default encoding is "RX" which will result in a single RX rotation per qubit. You can change this behavior, by setting the optional encoding argument to - a string or a list of strings where each is checked agains the Gates class - a callable or a list of callables

A callable must take an input, the wire where it's acting on and an optional noise_params dictionary. Let's look at an example, where we want to encode a two-dimensional input:

from qml_essentials.model import Model
from qml_essentials.ansaetze import Gates

def MyCustomEncoding(w, wires, **kwars):
    Gates.RX(w[0], wires, **kwargs)
    Gates.RY(w[1], wires, **kwargs)

model = Model(
    n_qubits=2,
    n_layers=1,
    circuit_type=MyHardwareEfficient,
    encoding=MyCustomEncoding,
)

model(inputs=[1, 2])

Noise#

You might have noticed, that the build method takes the additional input **kwargs, which we did not used so far. In general, all of the Ansatzes that are implemented in this package allow the additional input below which is a dictionary containing all the noise parameters of the circuit (here all with probability \(0.0\)):

noise_params = {
    "BitFlip": 0.0,
    "PhaseFlip": 0.0,
    "AmplitudeDamping": 0.0,
    "PhaseDamping": 0.0,
    "Depolarizing": 0.0,
    "MultiQubitDepolarizing": 0.0,
}

Providing this optional input will apply the corresponding noise to the model where the Bit Flip, Phase Flip, Depolarizing and Two-Qubit Depolarizing Channels are applied after each gate and the Amplitude and Phase Damping are applied at the end of the circuit.

To demonstrate this, let's recall the custom ansatz MyHardwareEfficient defined in Custom Ansatz and extend the model's usage:

model(
    model.params,
    inputs=None,
    execution_type="density",
    noise_params={
        "BitFlip": 0.01,
        "PhaseFlip": 0.02,
        "AmplitudeDamping": 0.03,
        "PhaseDamping": 0.04,
        "Depolarizing": 0.05,
        "MultiQubitDepolarizing": 0.06
})

In addition to these decoherent errors, we can also apply a GateError which affects each parameterized gate as \(w = w + \mathcal{N}(0, \epsilon)\), where \(\sqrt{\epsilon}\) is the standard deviation of the noise, specified by the GateError key in the noise_params argument. It's important to note that, depending on the flag set in Ansaetze.UnitaryGates.batch_gate_error, the error will be applied to the entire batch of parameters (all parameters are affected in the same way) or to each parameter individually (default). This can be particularly usefull in a scenario where one would like to apply noise e.g. only on the encoding gates but wants to change them all uniformly. An example of this is provided in the following code:

from qml_essentials.ansaetze import UnitaryGates

UnitaryGates.batch_gate_error = False
model(
    ...
    noise_params={
        "GateError": 0.01,
    }
)

def pqc_noise_free(*args, **kwargs):
    kwargs["noise_params"] = None
    return pqc(*args, **kwargs)
model.pqc = pqc_noise_free

Note: When using a noisy circuit, make sure to run the model with the density execution type.

Pulse Simulation#

Our framework allows constructing circuits at the pulse level, where each gate is implemented as a time-dependent control pulse rather than an abstract unitary.
This provides a more fine grained access to the simulation of the underlying physical process. While we provide a developer-oriented overview in this section, we would like to highlight Tilmann's Bachelor's Thesis if you want to have a more detailled read into pulse-level simulation and quantum Fourier models.

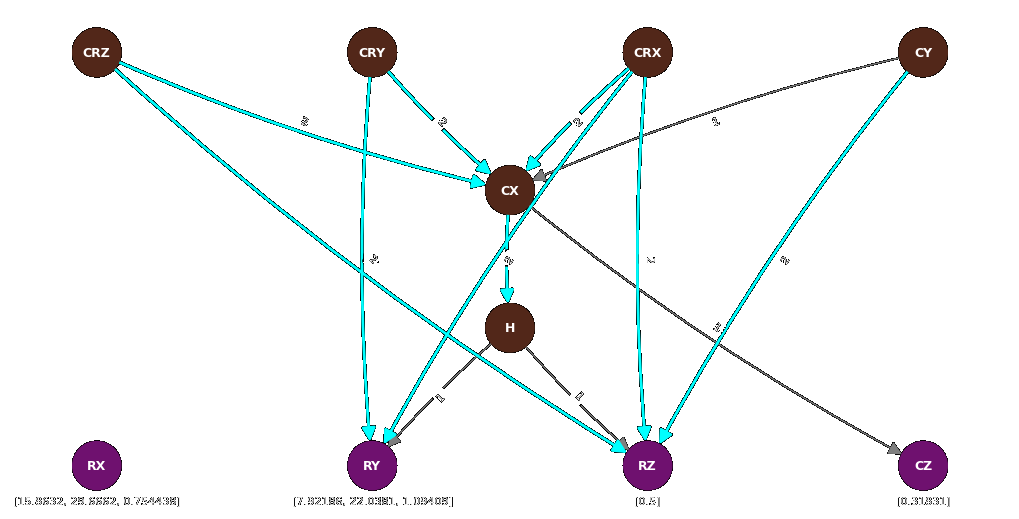

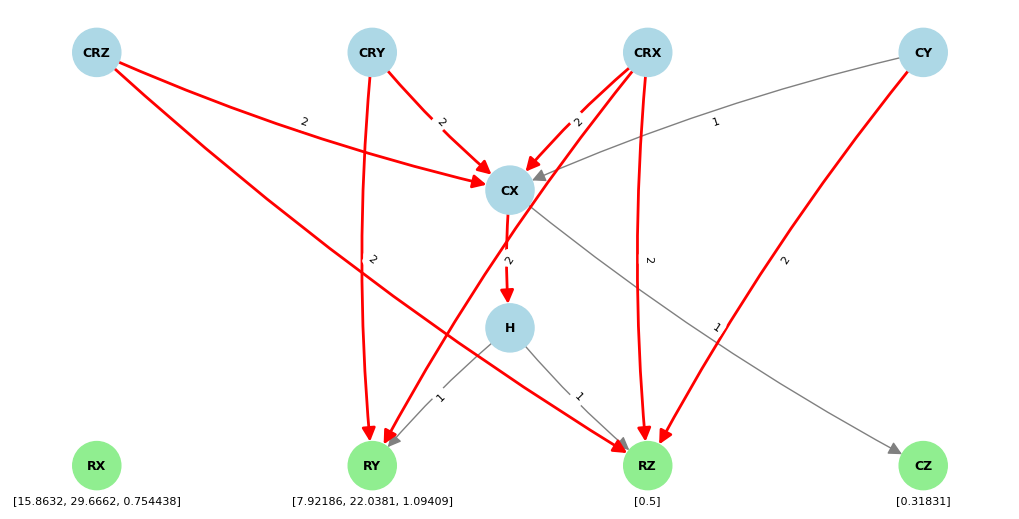

We implement a fundamental set of gates (RX, RY, RZ, CZ) upon which other, more complex gates can be built. The dependency graph is shown in the following figure: In this graph, the edge weights represent the number child gates required to implement a particular gate. The gates at the bottom represent the fundamental gates.

Generally, the gates are available through the same interface as the regular unitary gates. Pulse simulation can easily be enabled by adding the mode="pulse" keyword argument, e.g.:

from qml_essentials.ansaetze import Gates

Gates.CY(wires=[0, 1], mode="pulse")

Pulse Parameters per Gate#

You can use the PulseInformation class in qml_essentials.ansaetze to access both the number and optimized values of the pulse parameters for each gate. Consider the following code snippet:

from qml_essentials.ansaetze import PulseInformation as pinfo

gate = "CX"

print(f"Number of pulse parameters for {gate}: {pinfo.num_params(gate)}")
# Number of pulse parameters for CX: 9

gate_instance = pinfo.gate_by_name(gate)

print(f"Childs of {gate}: {gate_instance.childs}")
# Childs of CX: [H, CZ, H]

print(f"All parameters of {gate}: {len(gate_instance.params)}")
# All parameters of CX: 9

print(f"Leaf parameters of {gate}: {len(gate_instance.leaf_params)}")
# Leaf parameters of CX: 5

Looking back at the dependency graph, we can easily see where the discrepancy between the overall number parameters and the number of leaf parameters comes from. The CX gate is composed of two Hadamard gates which in turn are decomposed into RY and RZ gates respectively. By default, our implementation assumes, that you want to treat each rotational gate equally, thus the number of leaf parameters is just the "unique" number of parameter resulting after merging multiple occurencies of the same gate type. However, it is also possible to overwrite these behavior, as we will see in the following example.

Calling Gates in Pulse Mode#

To execute a gate in pulse mode, provide gate_mode="pulse" when calling the gate.
Optional pulse_params can be passed; if omitted, optimized default values are used:

w = 3.14159

# CX gate with default optimized pulse parameters
# (gates of equal type will recieve equal pulse parameters)
Gates.CX(w, wires=0, gate_mode="pulse")

# CX gate with custom pulse parameters (overwriting default pulse parameters)
pulse_params = [0.5, 7.9218643, 22.0381298, 1.09409231, 0.31830953, 0.5, 7.9218643, 22.0381298, 1.09409231]
Gates.RX(w, wires=0, gate_mode="pulse", pulse_params=pulse_params)

Building Ansatzes in Pulse Mode#

When building an ansatz in pulse mode (via a Model), the framework internally passes an array of ones as element-wise scalers for the optimized parameters.
If pulse_params are provided for a model or gate, these are treated similarly as element-wise scalers to modify the default pulses. We again take advantage of the **kwargs and call:

model(gate_mode="pulse", pulse_params=model.pulse_params_scaler * 1.5)

Here, input and params are inferred from the Model instance, and we scale all pulse parameters by a factor of 1.5. Currently there is no way to change the raw values of pulse parameter through the model api directly.

Similar to the input and standard parameters, we also support batching for the pulse_params argument, meaning that you can also pass a batched array of pulse parameters of e.g. size 2 to as follows:

model(pulse_params=np.repeat(model.pulse_params, 2, axis=-1), gate_mode="pulse")

Note: Pulse-level simulation currently does not support noise channels. Mixing with noise will raise an error.

Quantum Optimal Control (QOC)#

Our package provides a QOC interface for directly optimizing pulse parameters for specific gates.

QOC is currently WIP, therefore only minimal documentation is provided

Conceptually the provided QOC class contains methods to create test circuits (create_GATE) which return two circuits, one using the pulse level implementation of GATE and the other using the unitary level implementation of GATE. For the specific implementation of these methods, we refer to the documentation of the QOC class. To test a broad range of states, each of these circuits does not only include the GATE itself, but other, unitary based gates as well. Those usually take a paramter w, allowing to sweep through the parameter space and validate if GATE acutally mimics its unitary counterpart.

Without any parameter specification, we can initialize the QOC class:

from qml_essentials.qoc import QOC

qoc = QOC()

For a detailled description of available arguments, we refer to the documentation of the QOC class. Now, we can select a gate of pass sel_gates="all" when calling optimize_all:

qoc.optimize_all(sel_gates="GATE")

which will run the optimization for the specified gate. The output of the optimization is logged to qoc_logs.csv whereas the resulting pulse parameters are stored in qoc_results.csv.

For further examples we refer to our "Pulses" notebook .

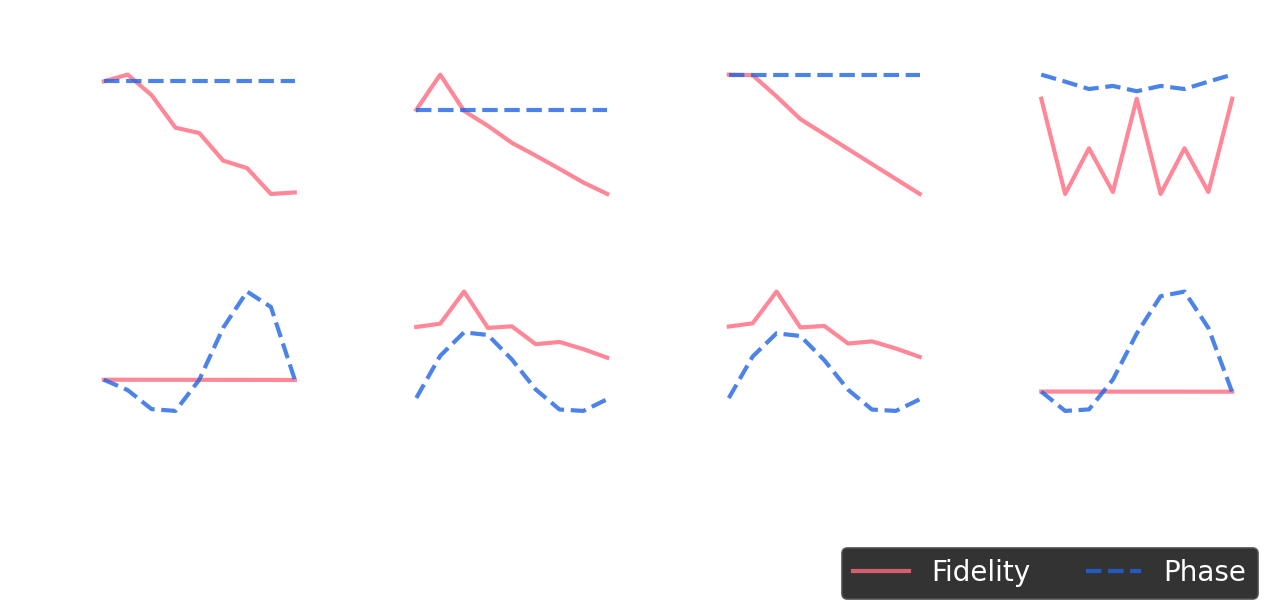

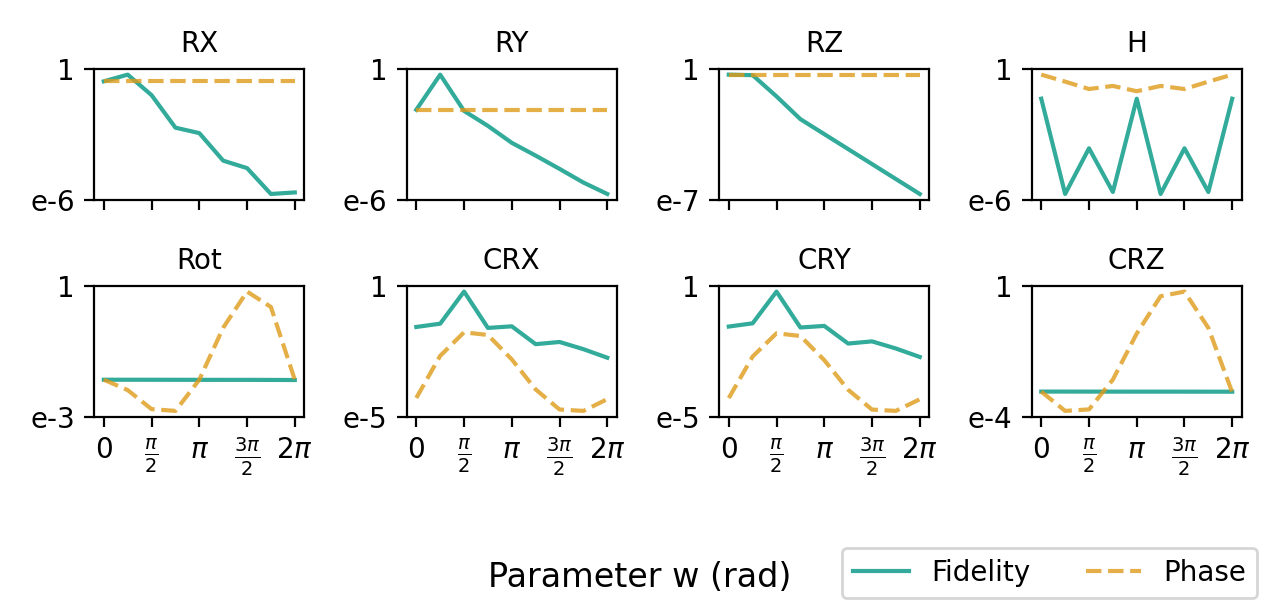

With the optimized pulse parameters we can generate a fidelities plot as follows:

Note that in this plot, the phase error is shown as \(1-\text{phase error}\) to align it with the fidelity scale.

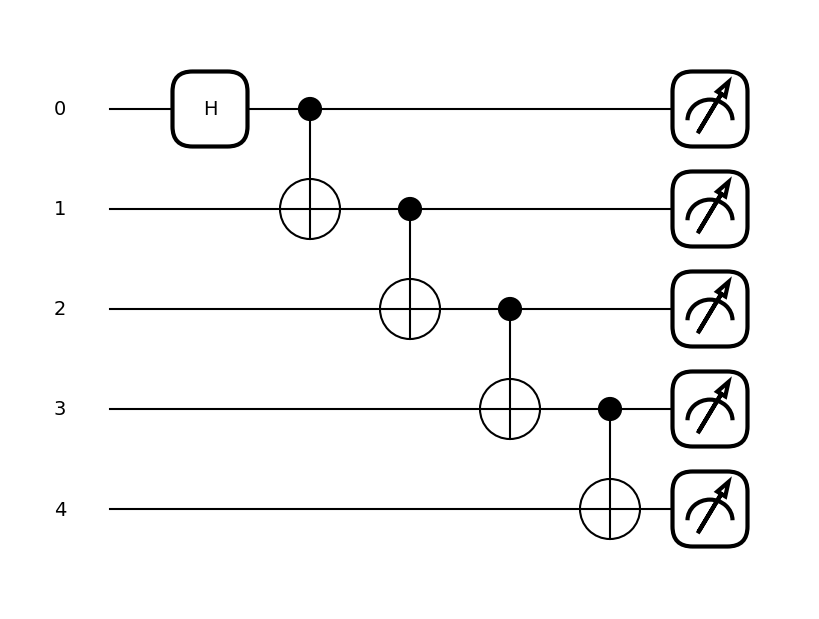

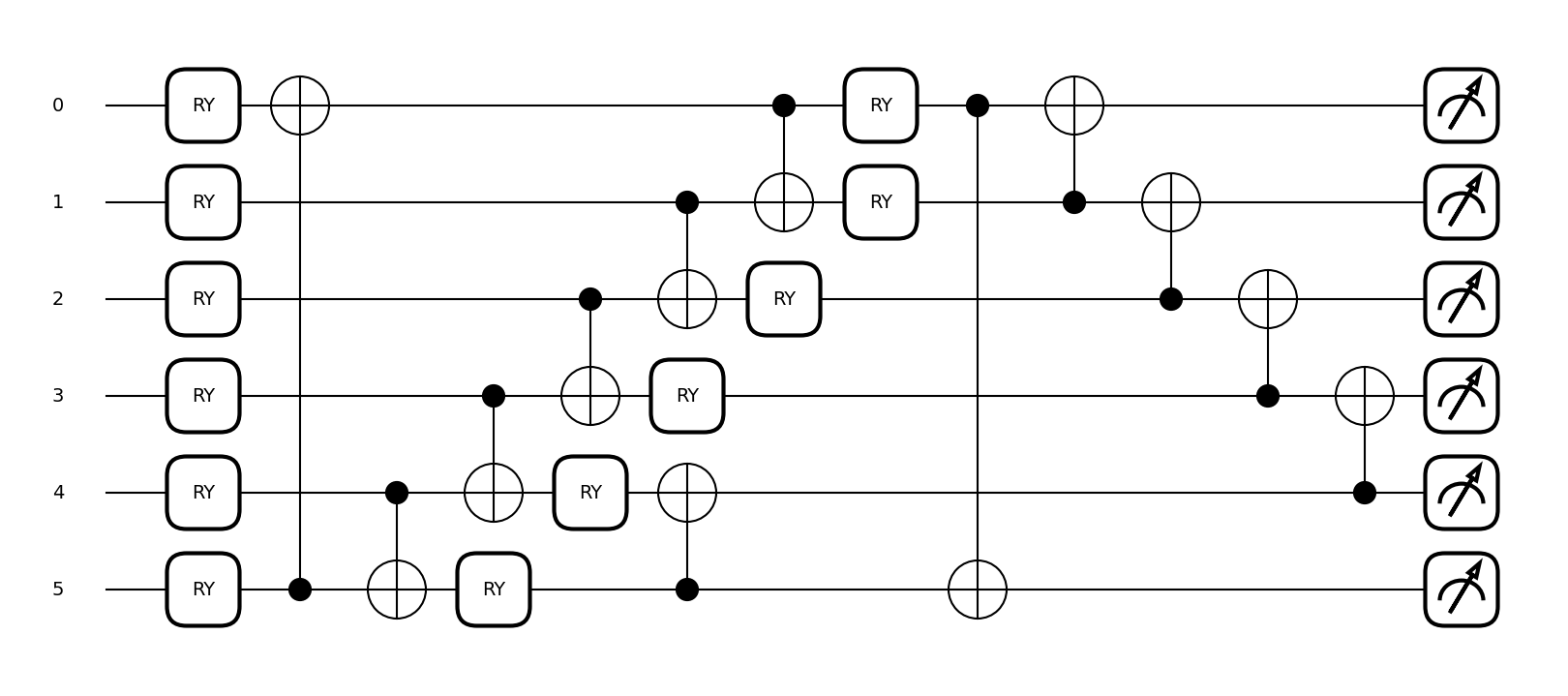

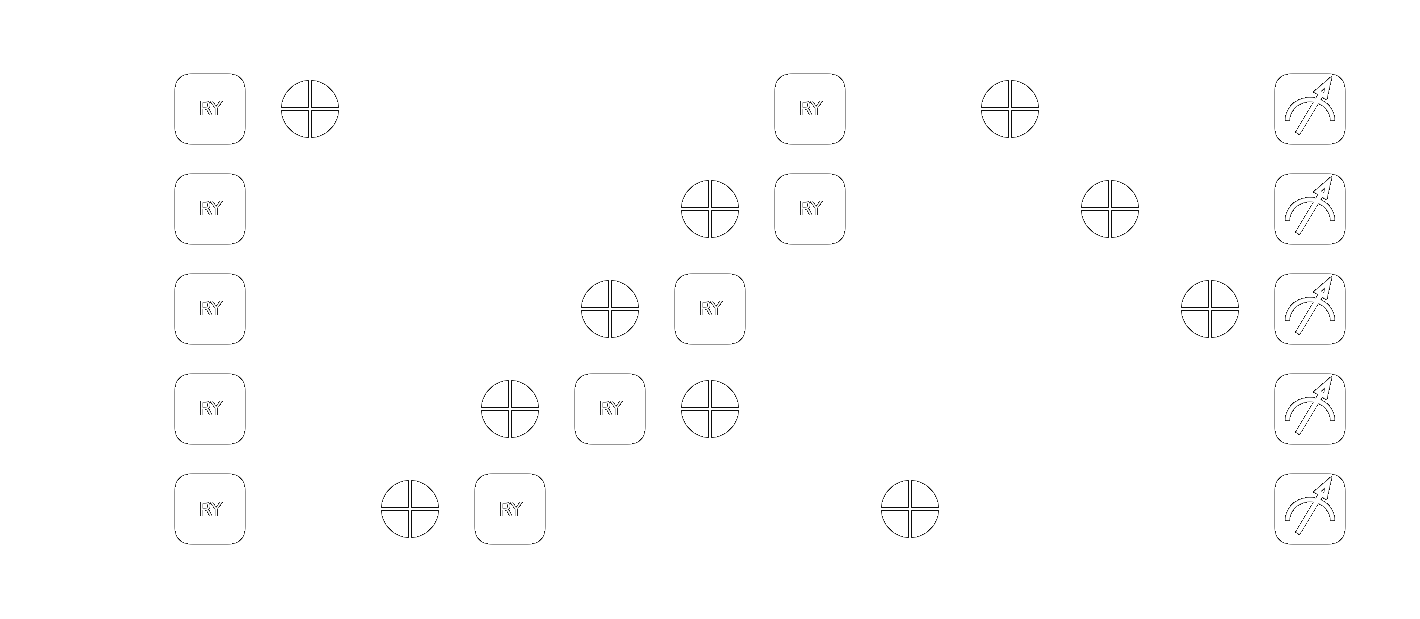

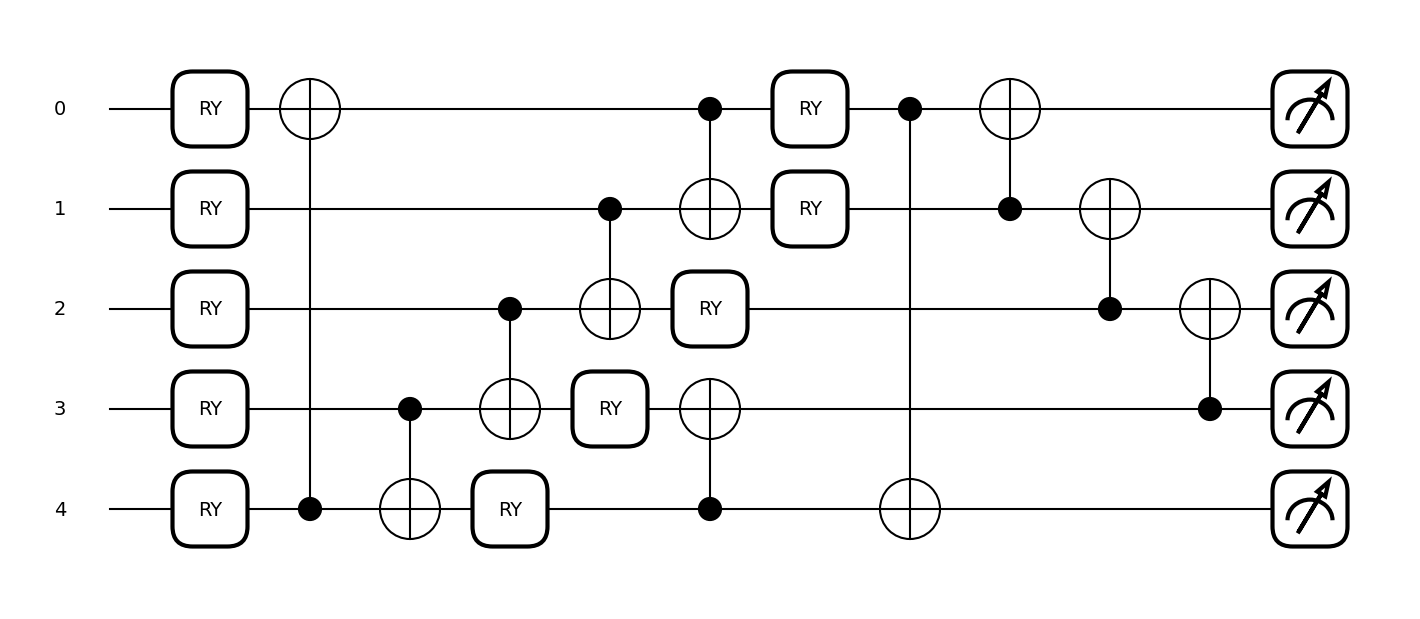

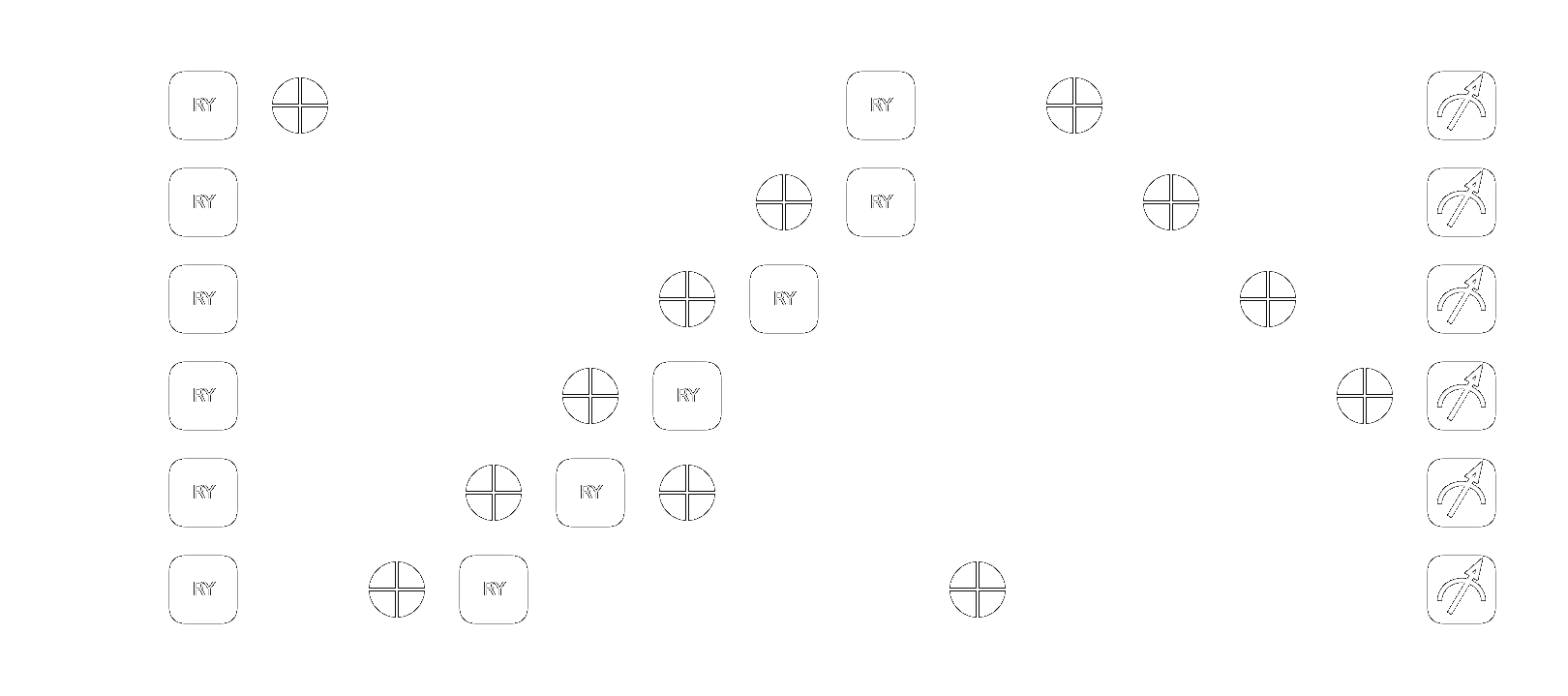

Overview#

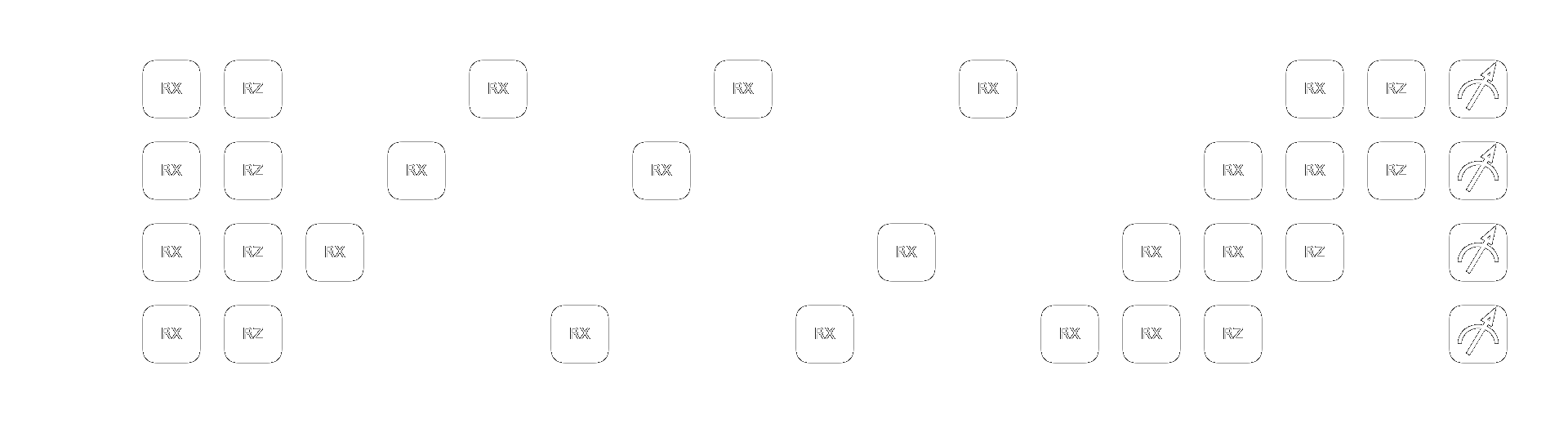

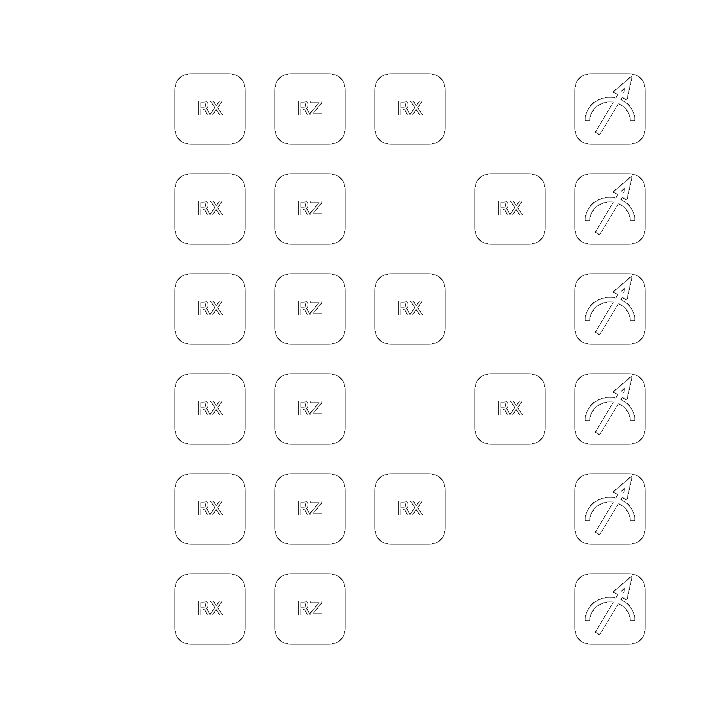

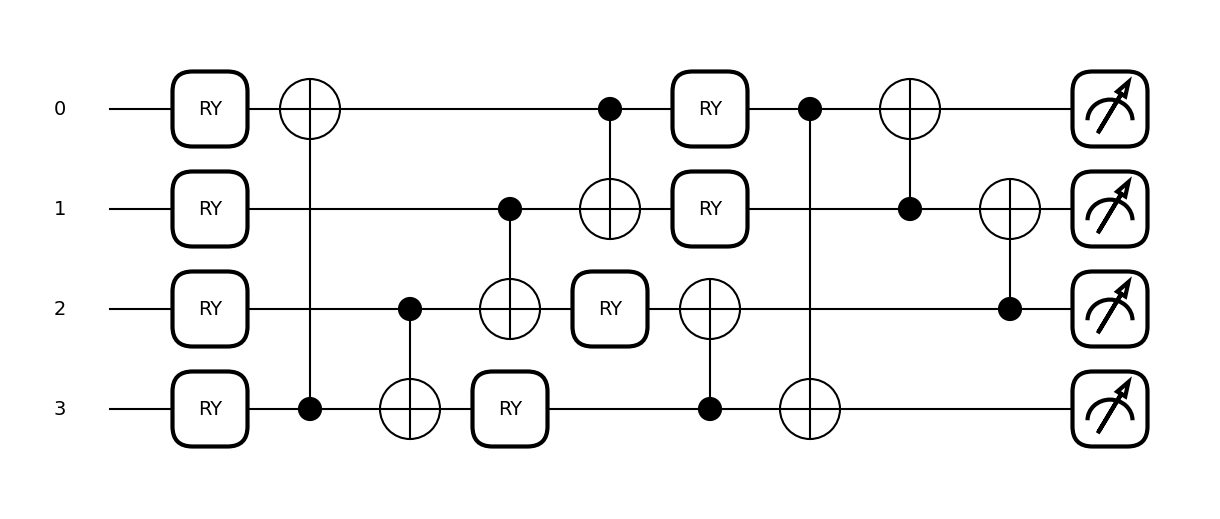

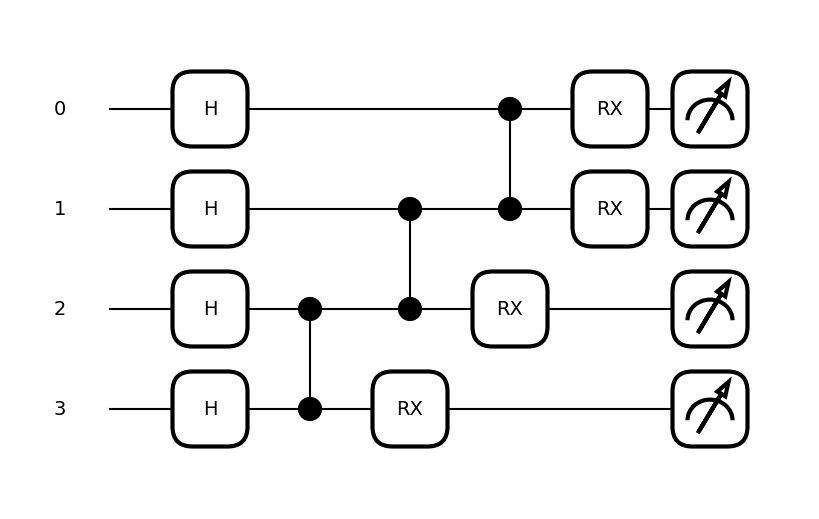

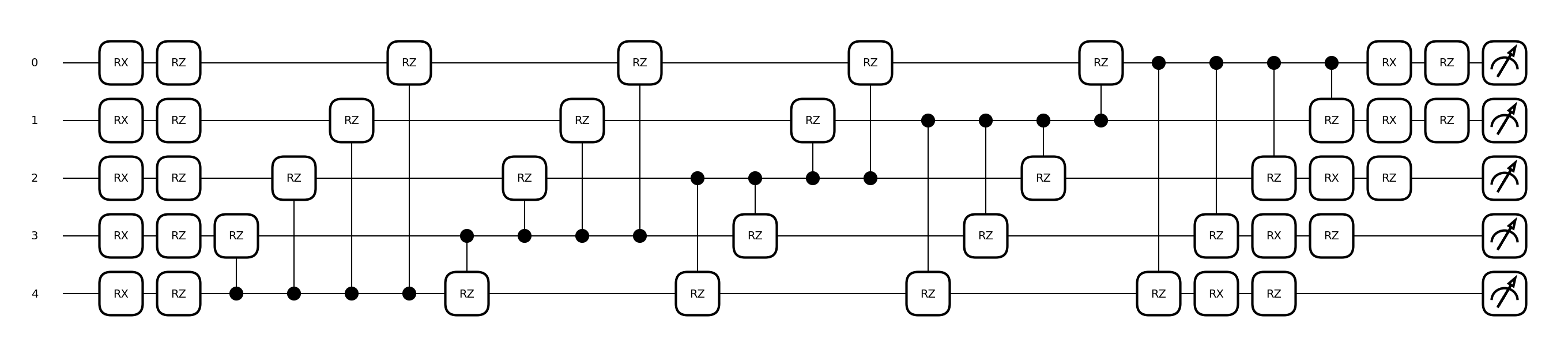

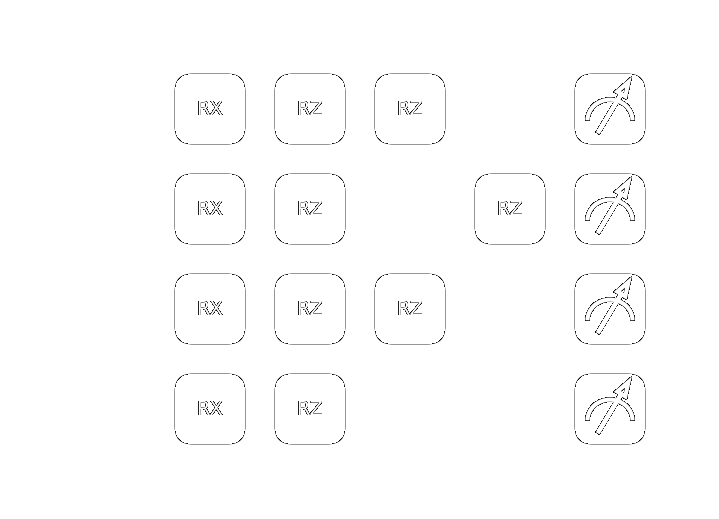

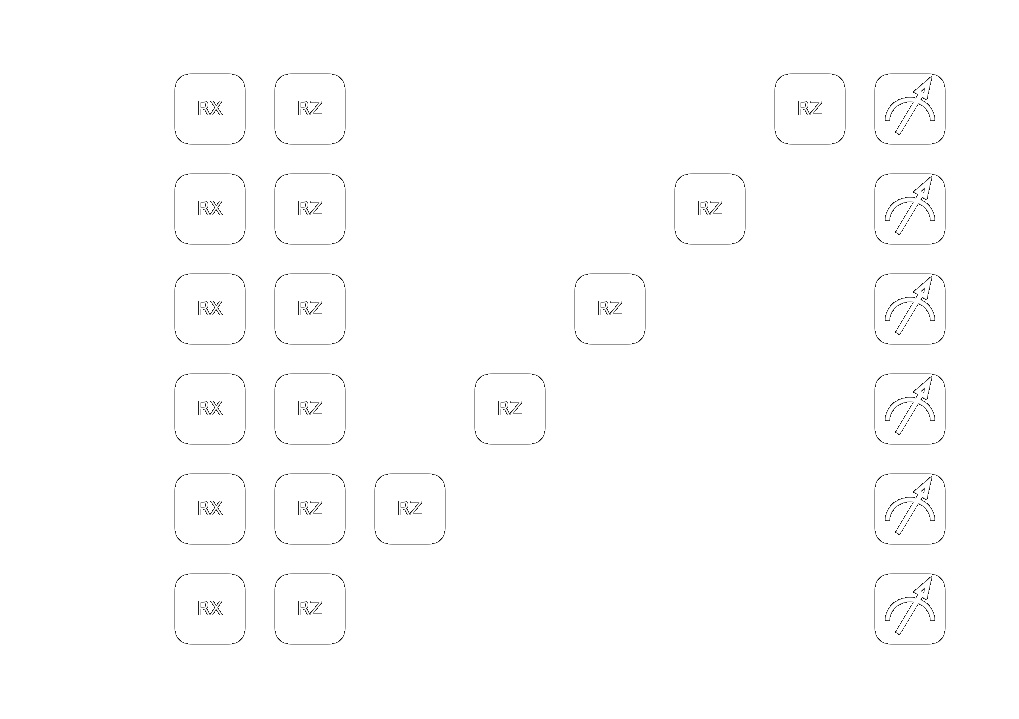

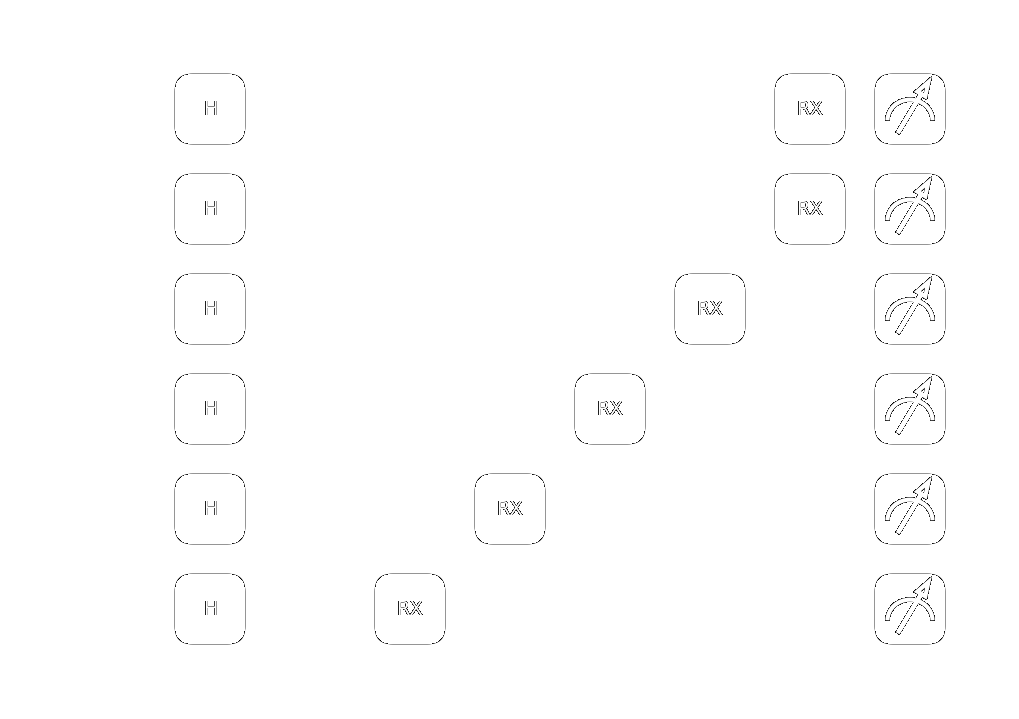

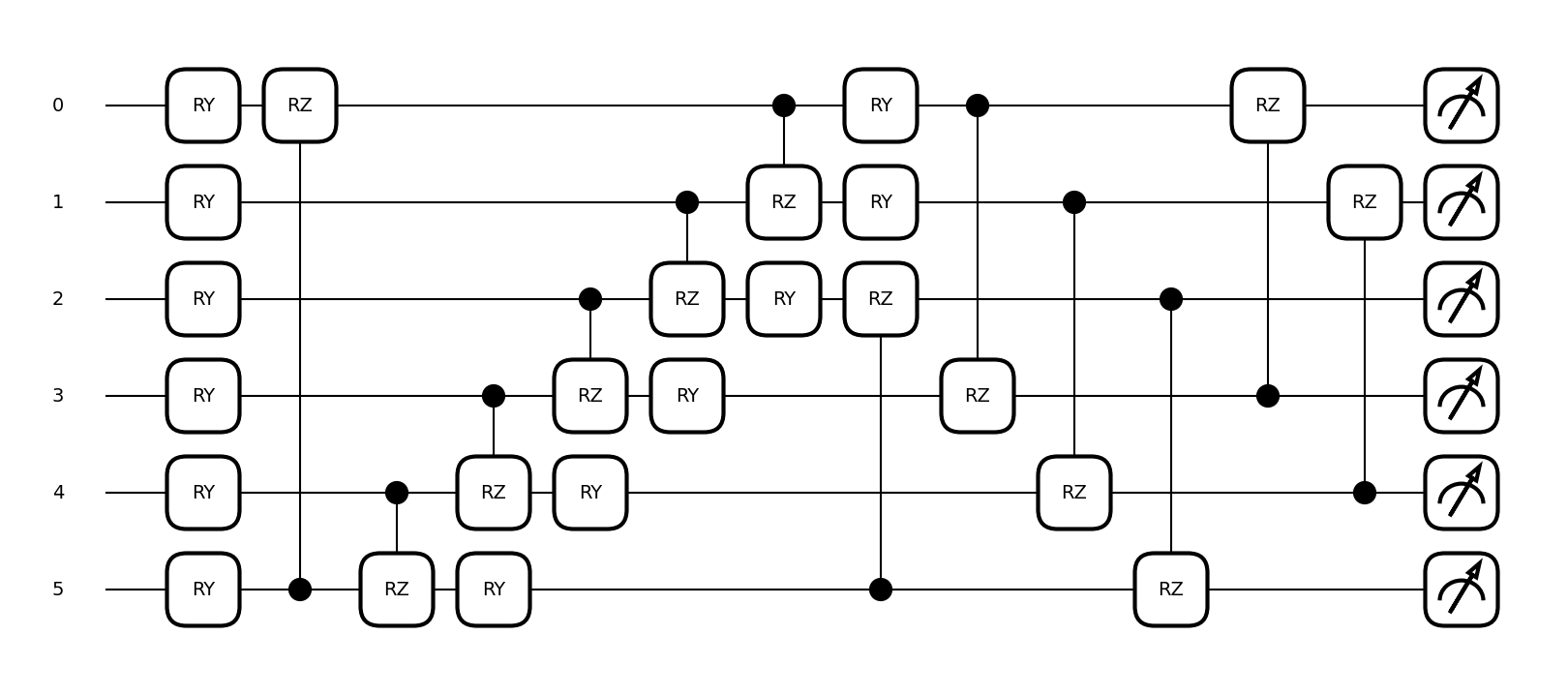

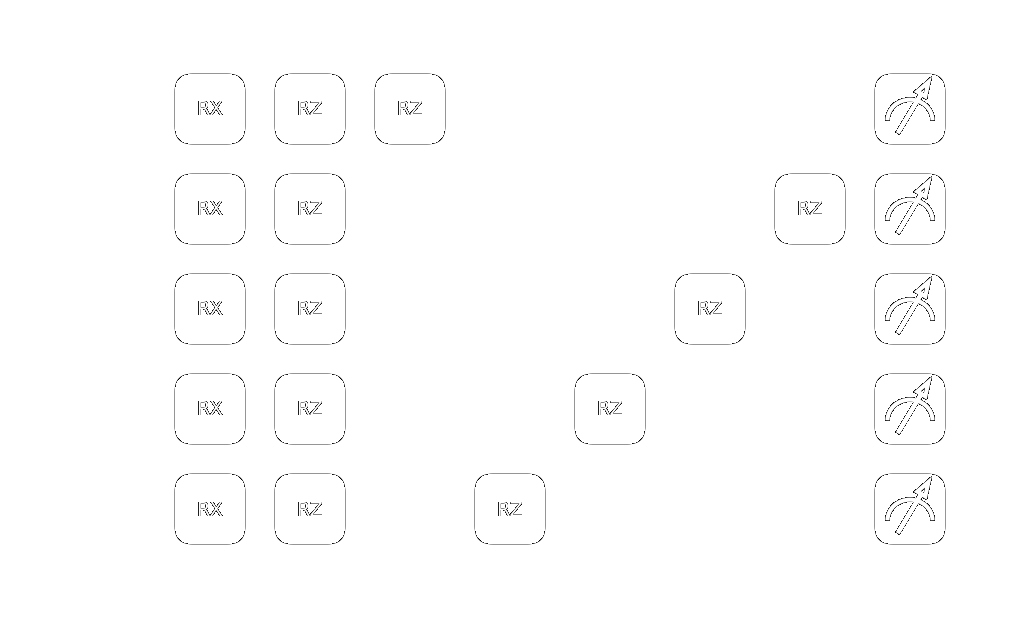

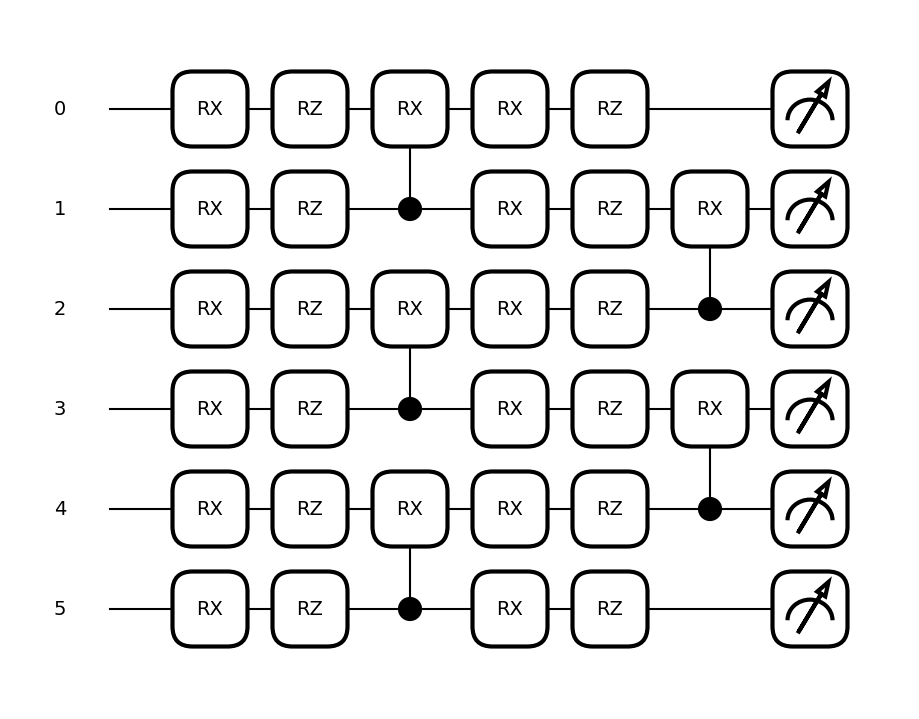

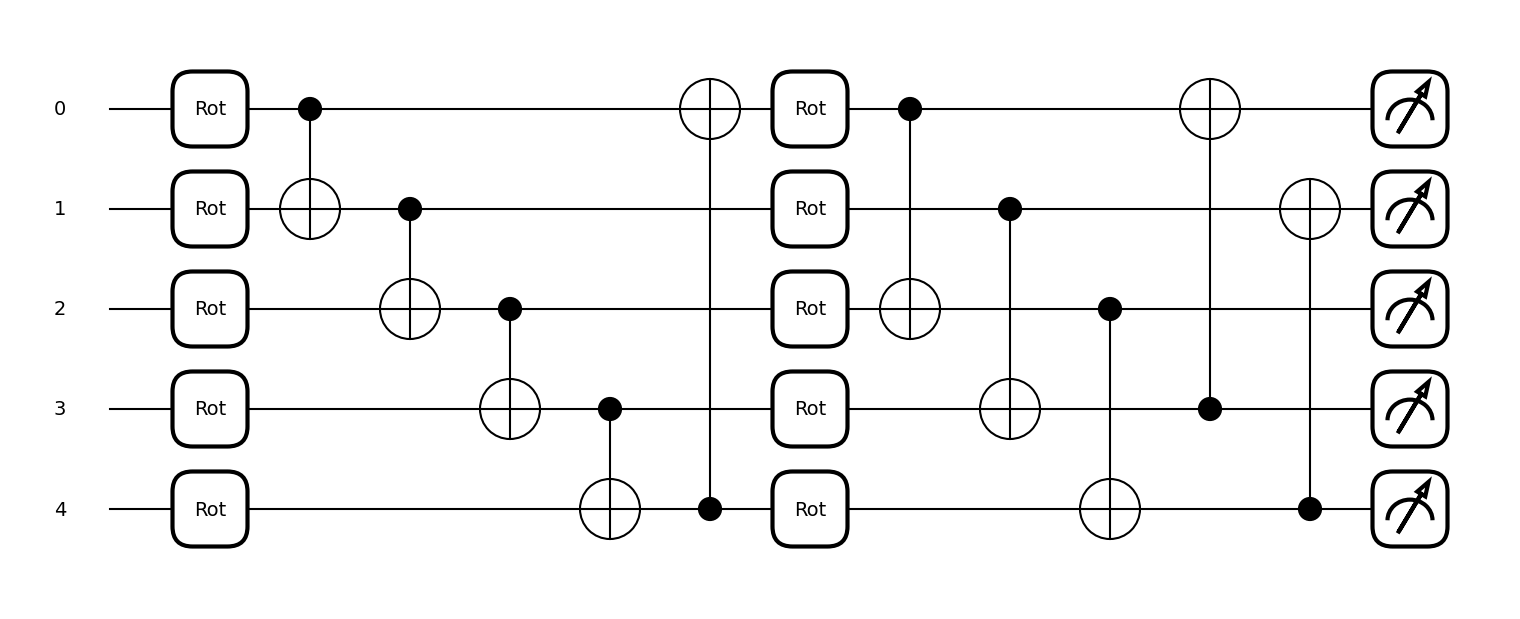

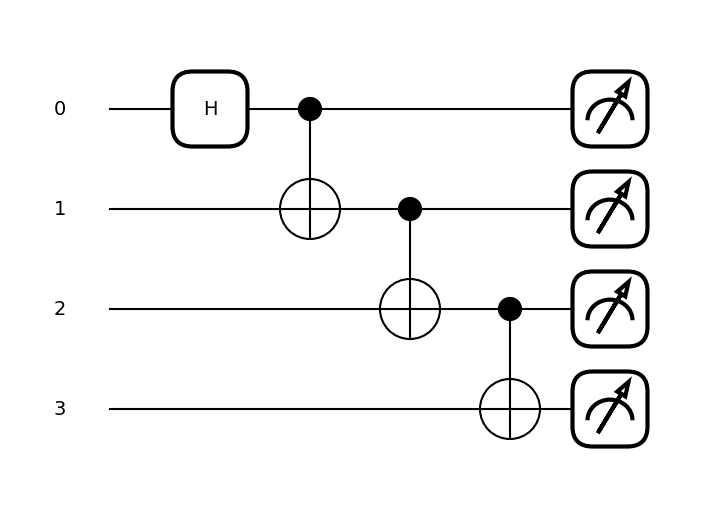

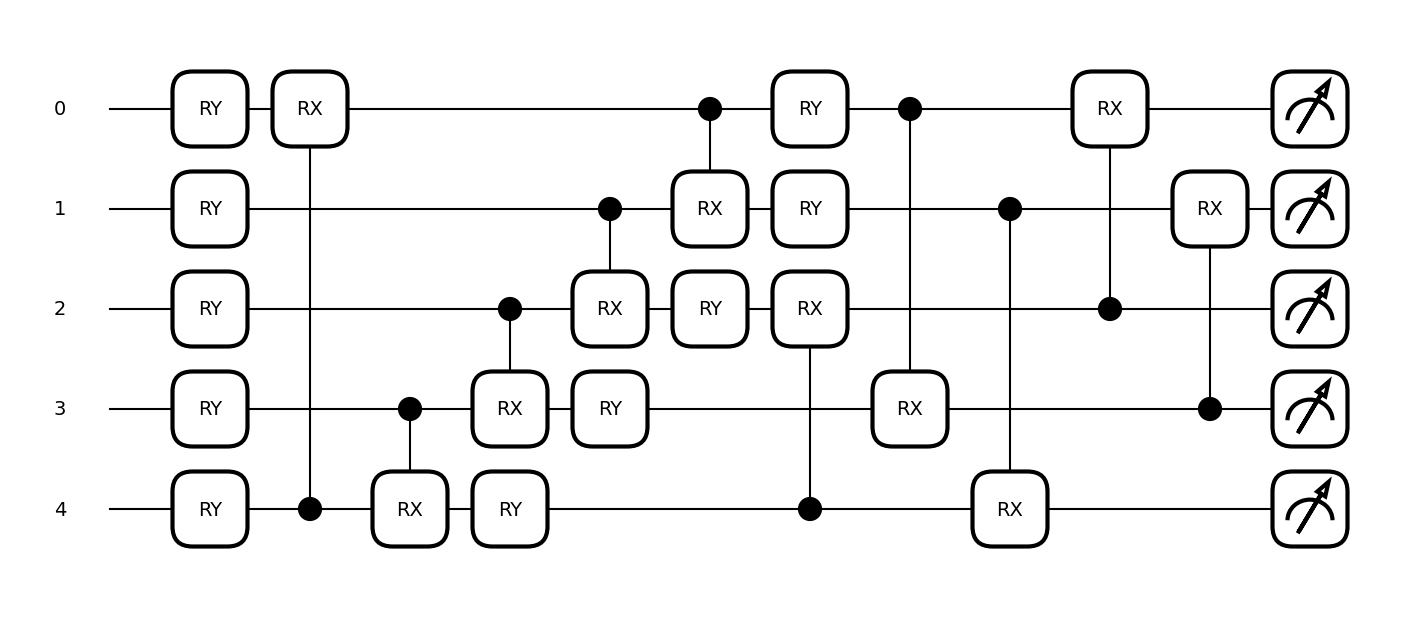

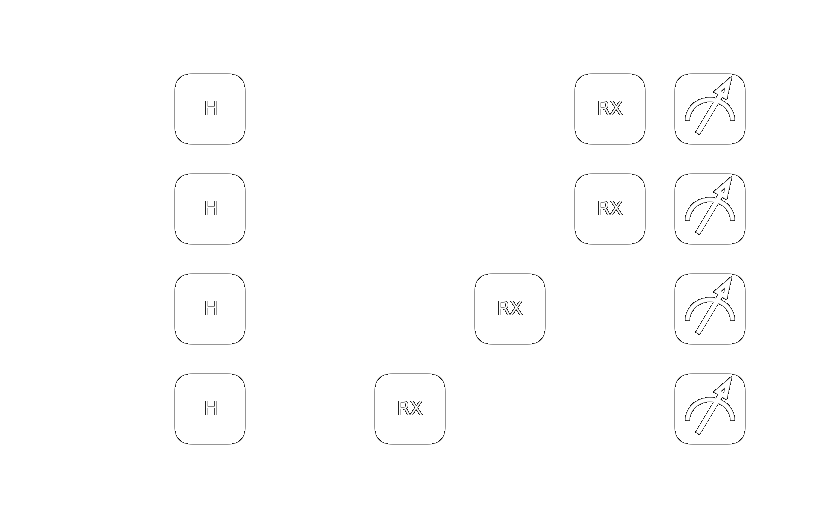

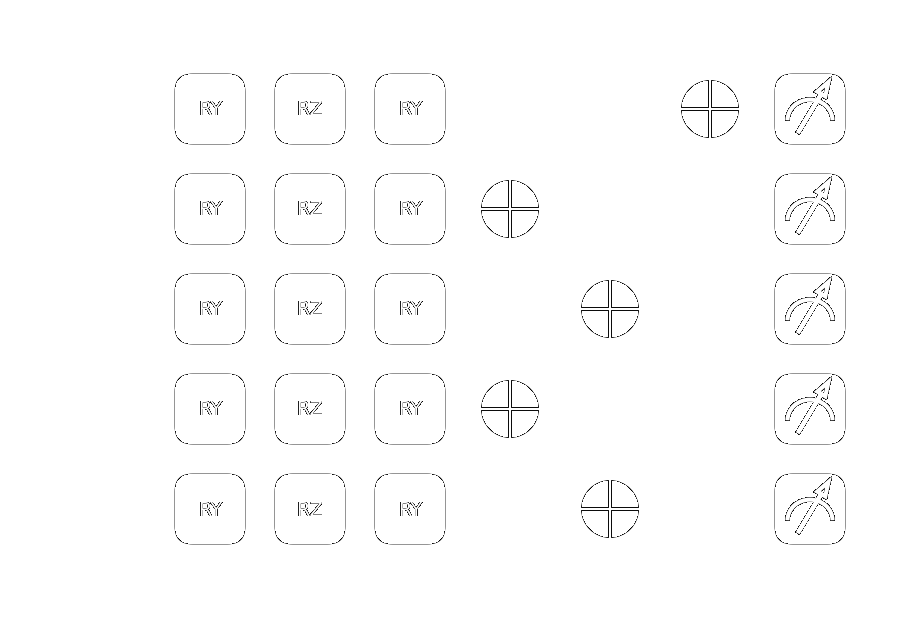

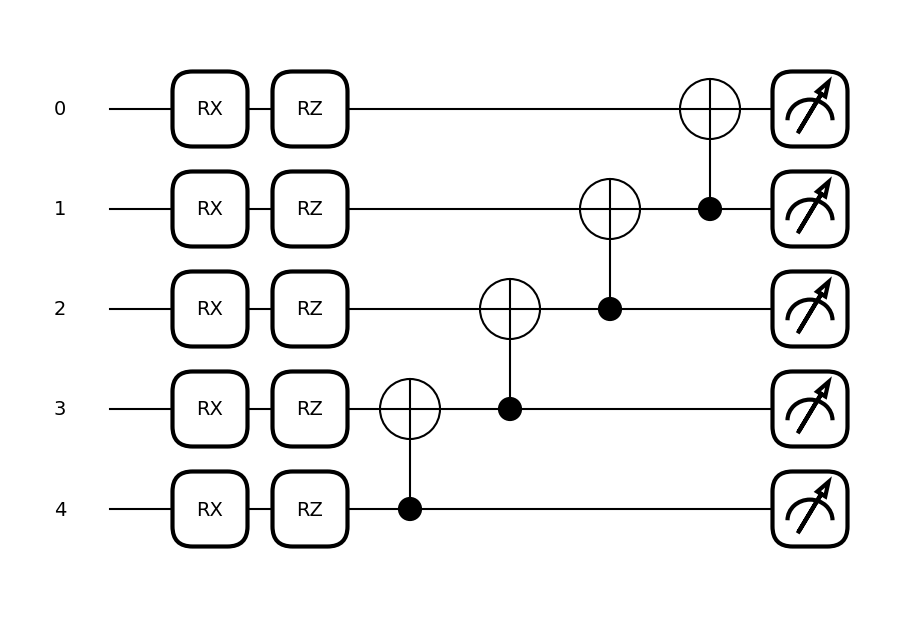

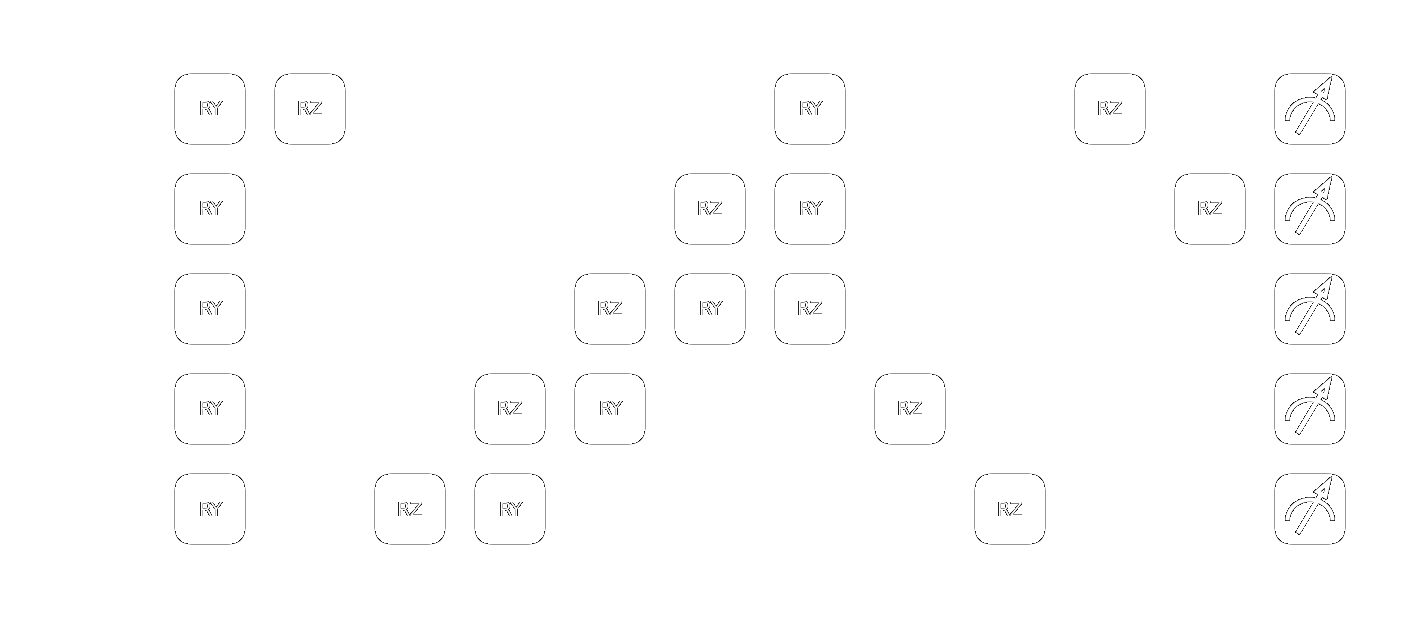

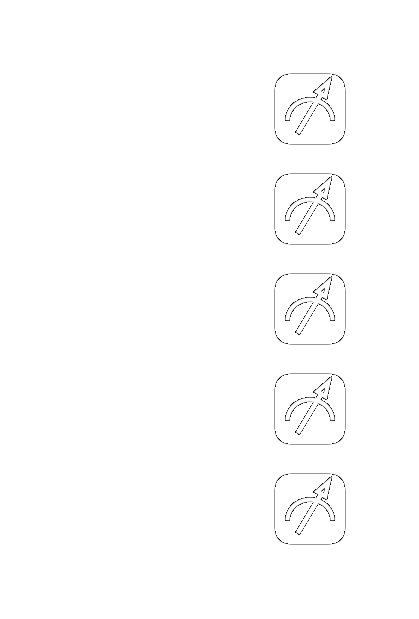

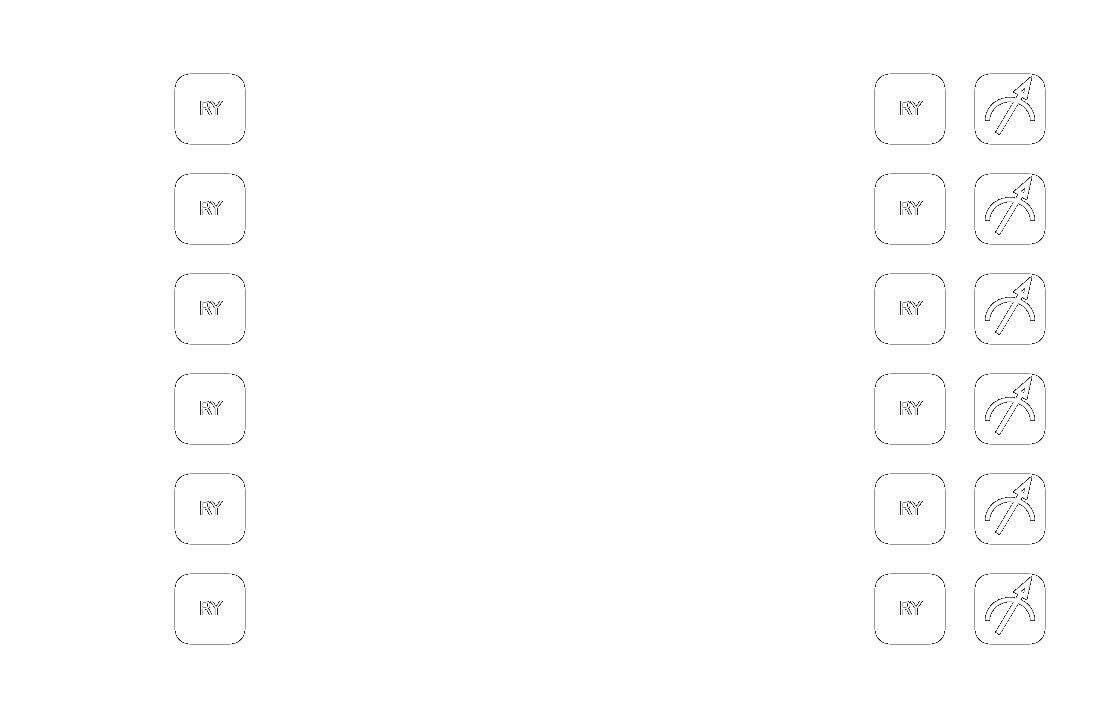

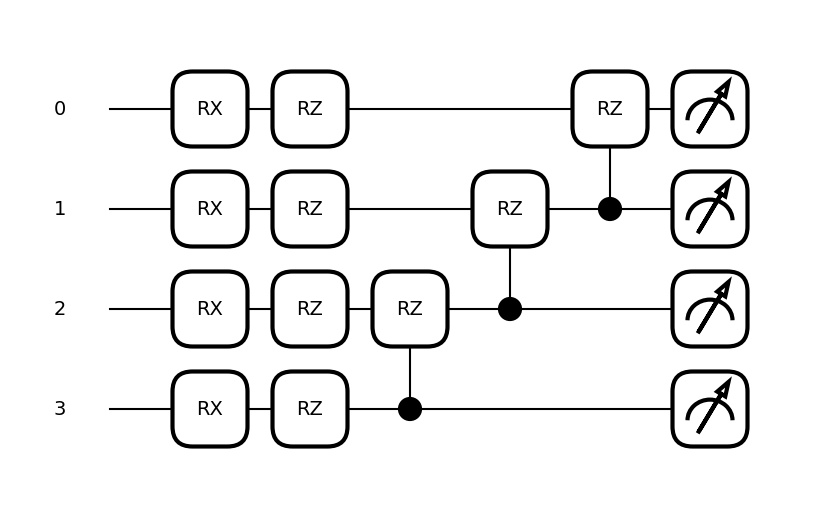

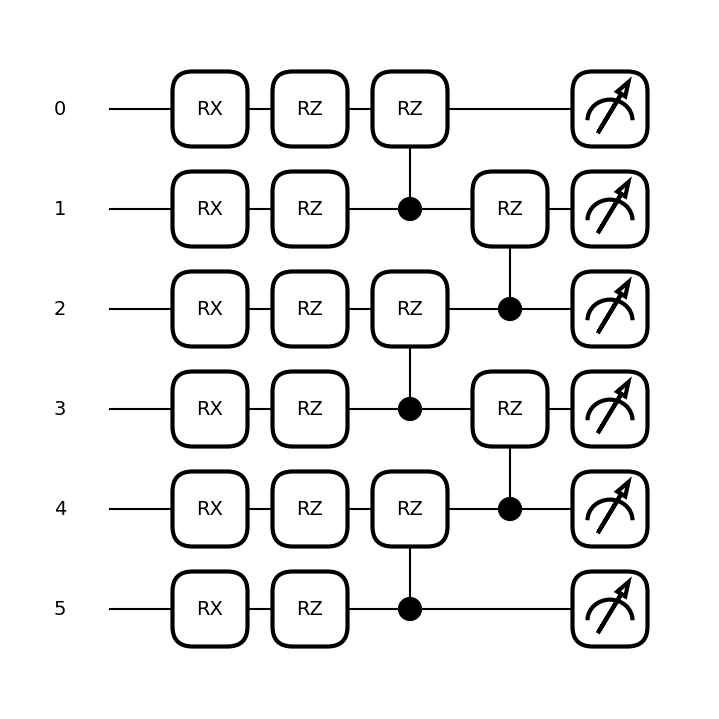

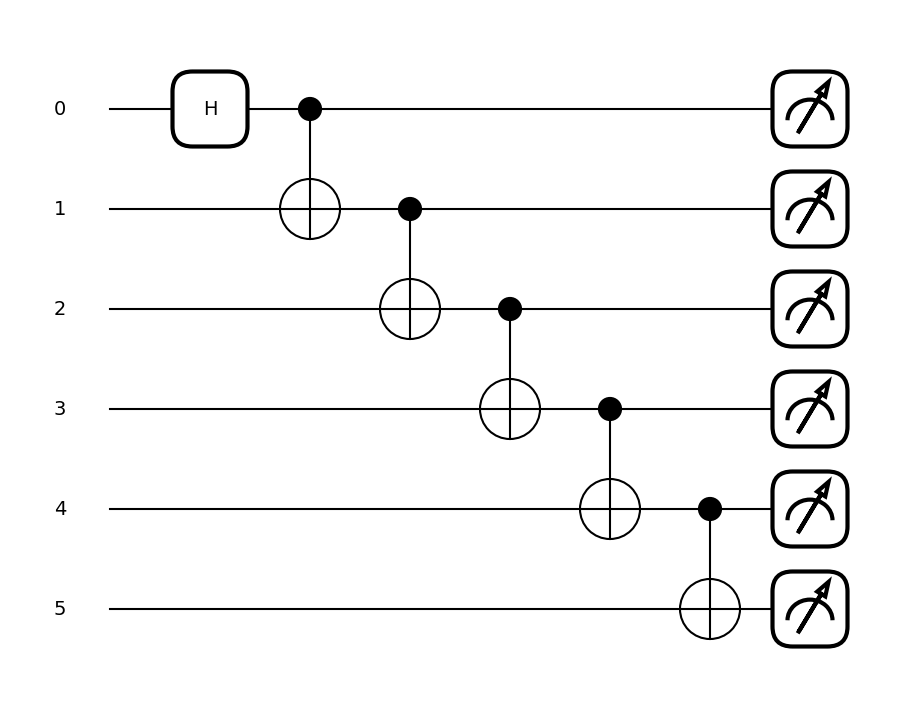

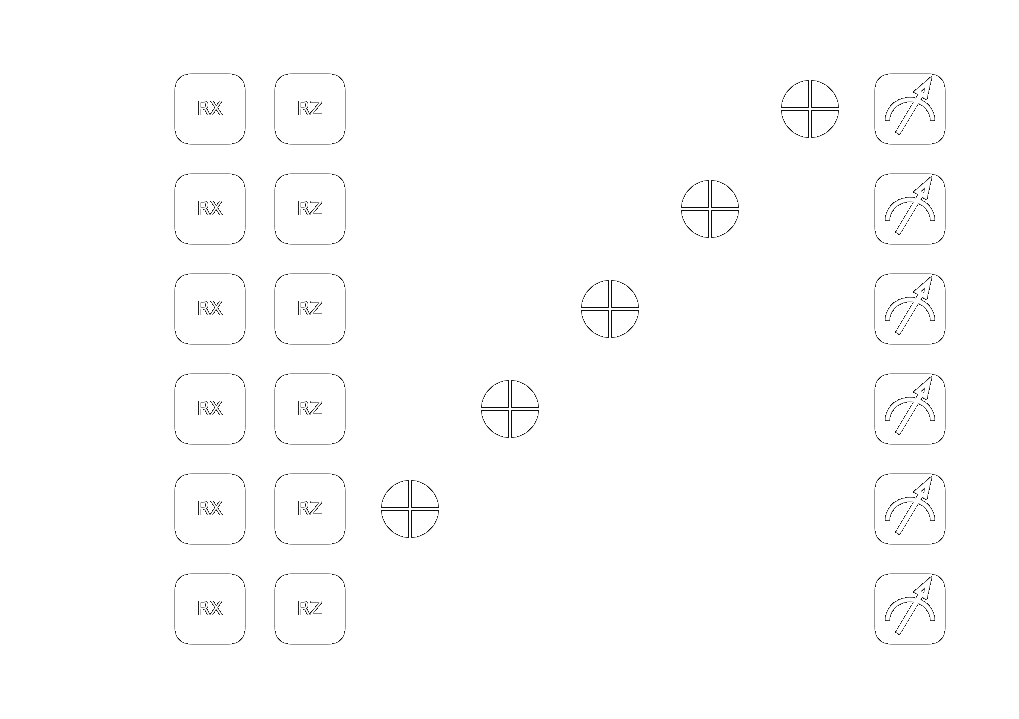

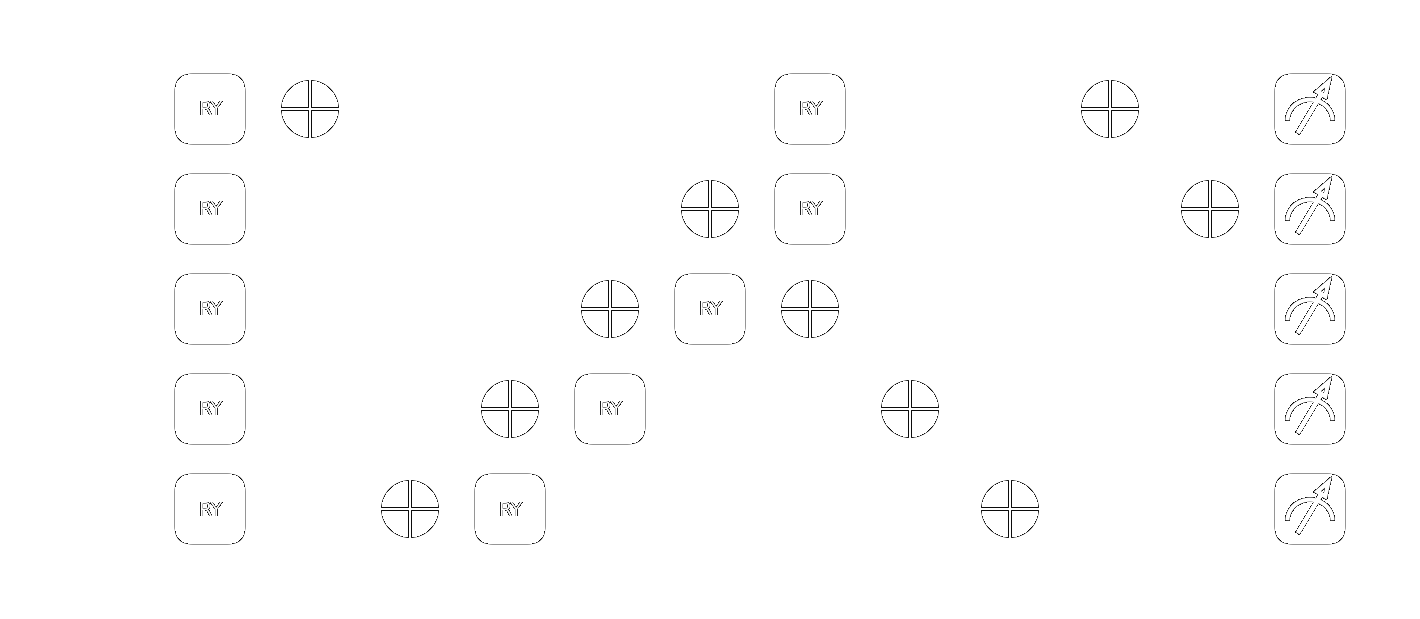

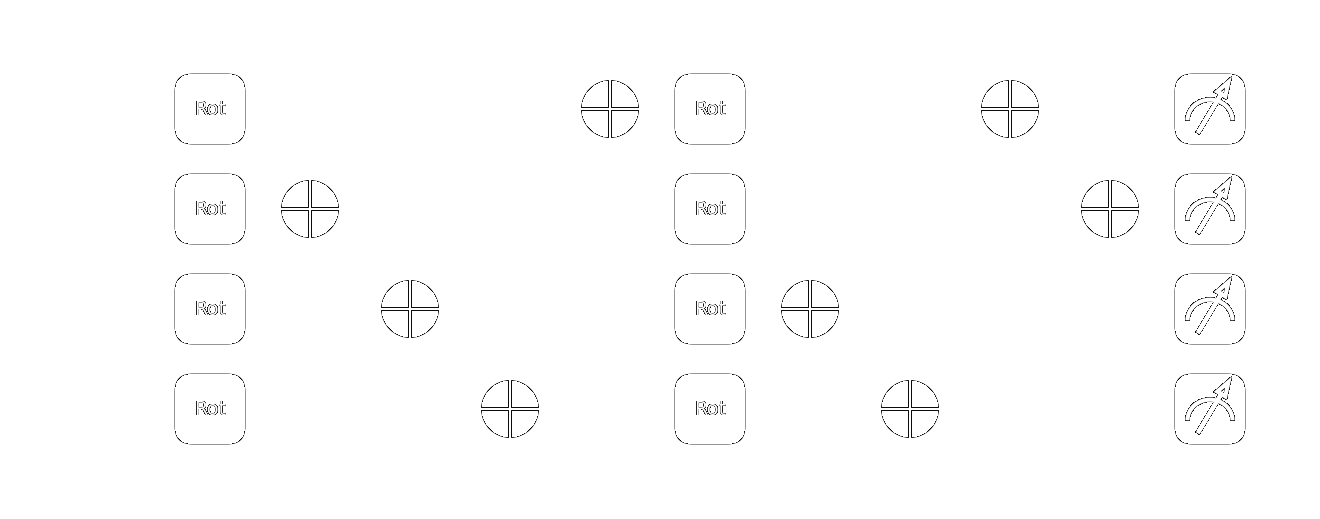

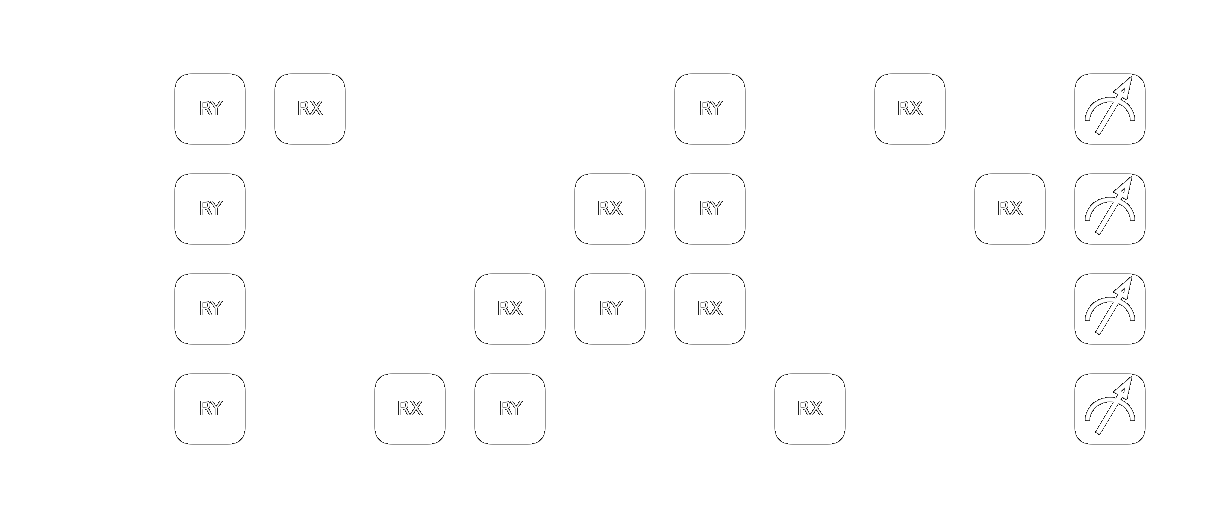

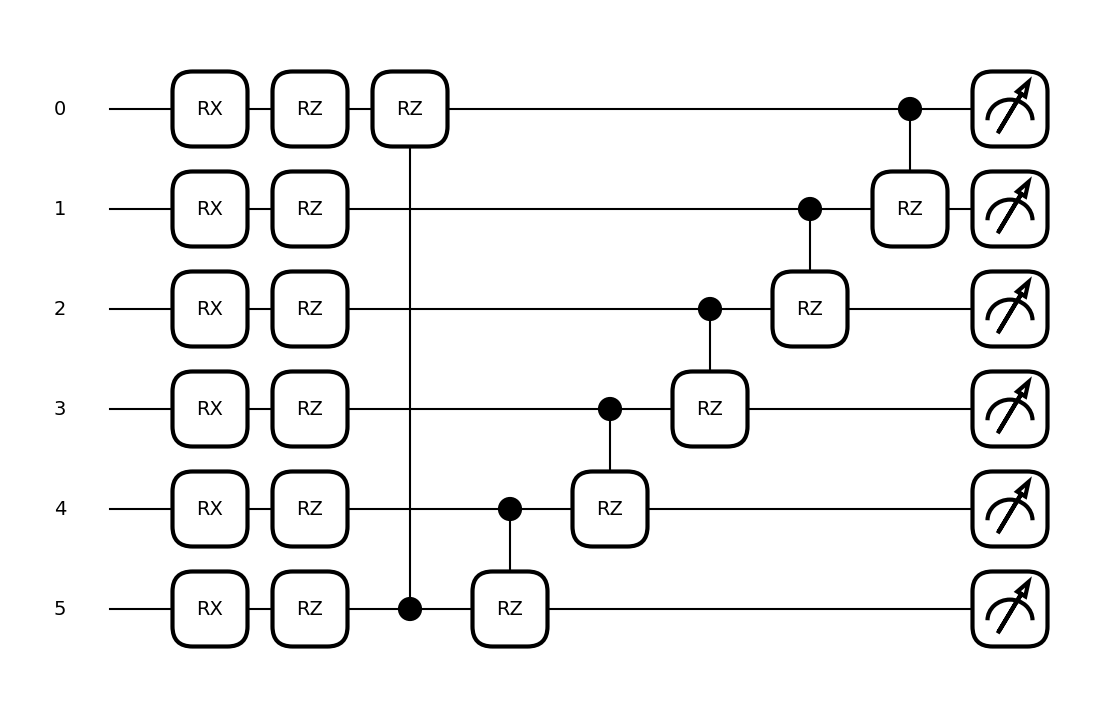

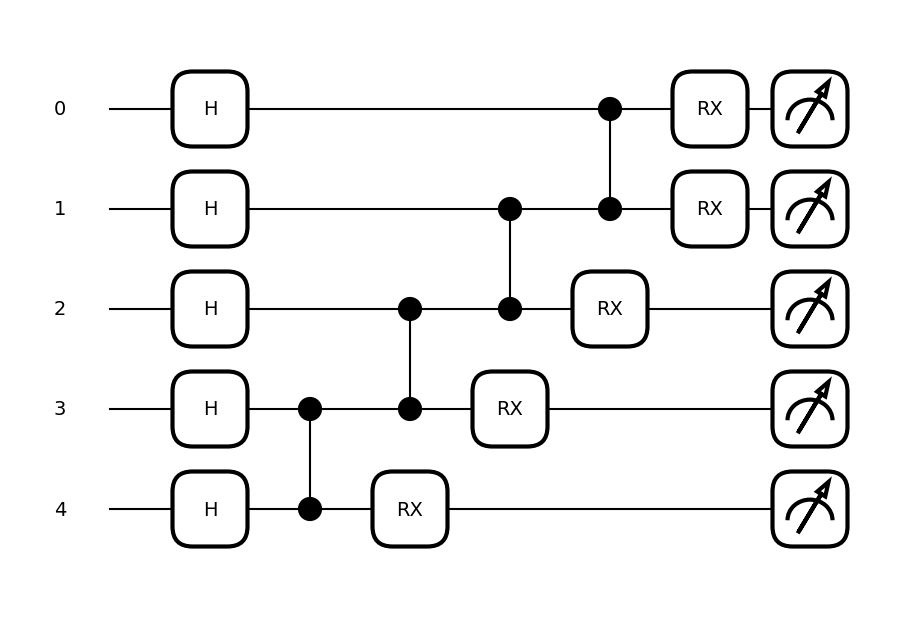

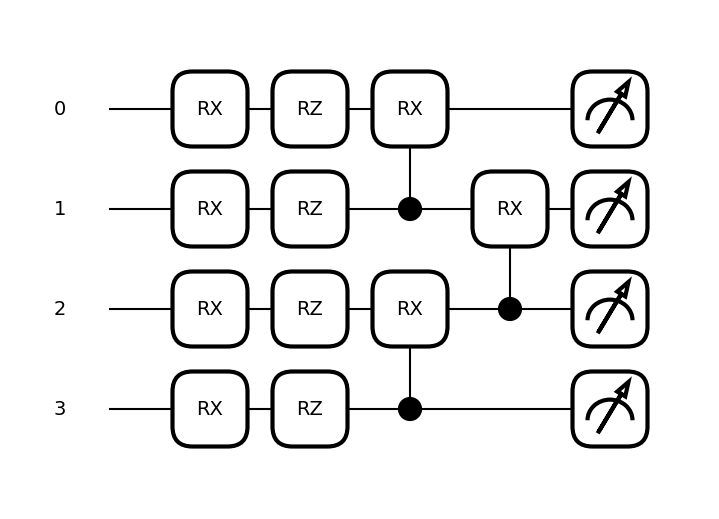

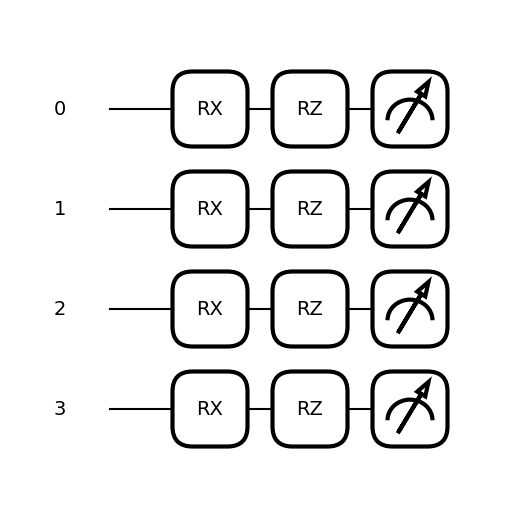

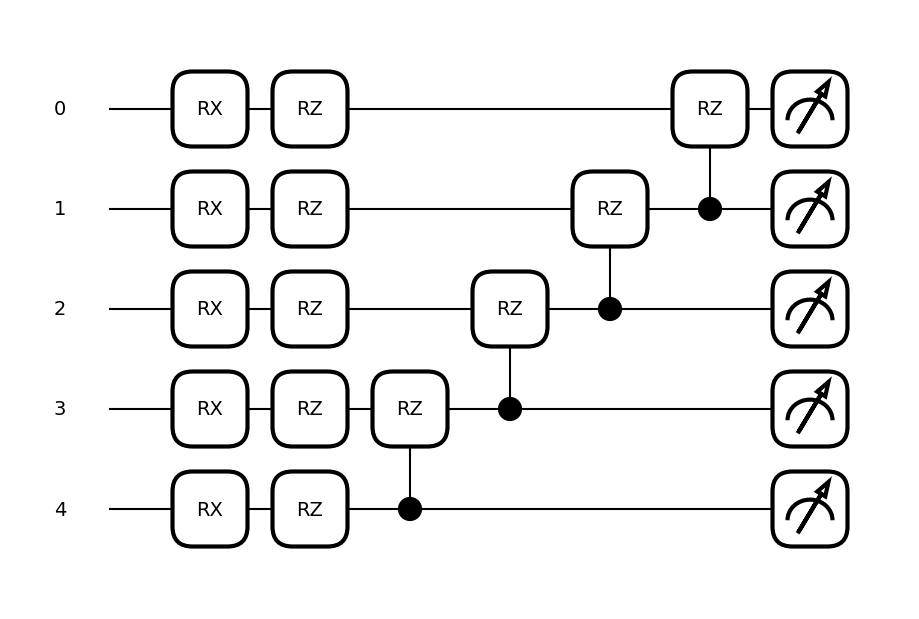

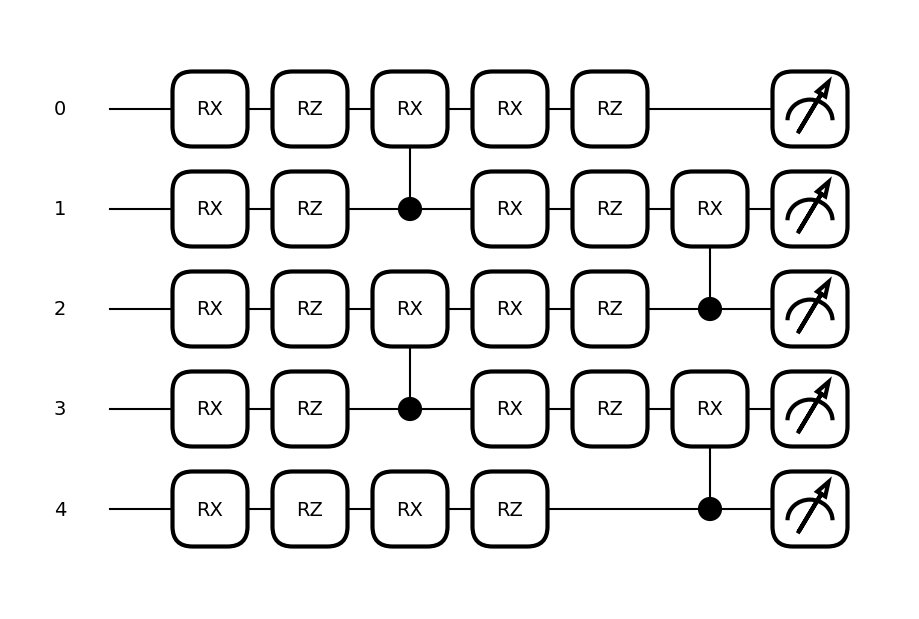

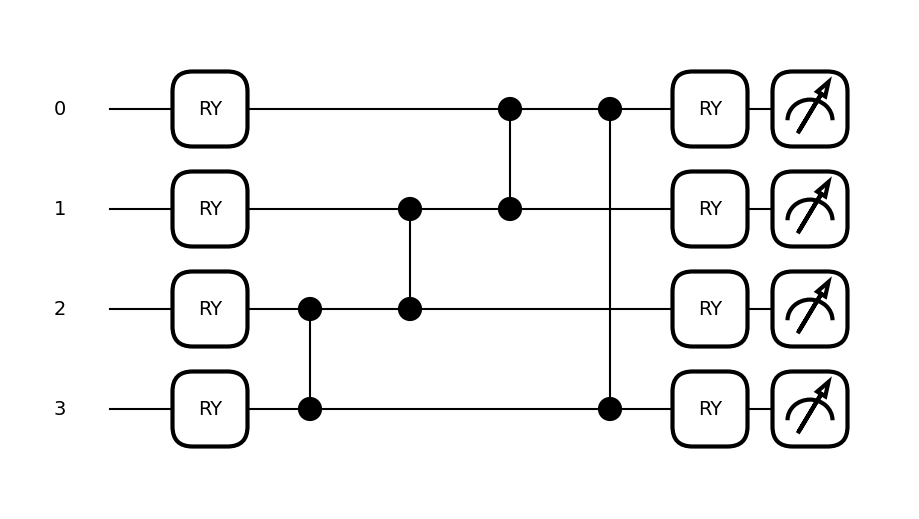

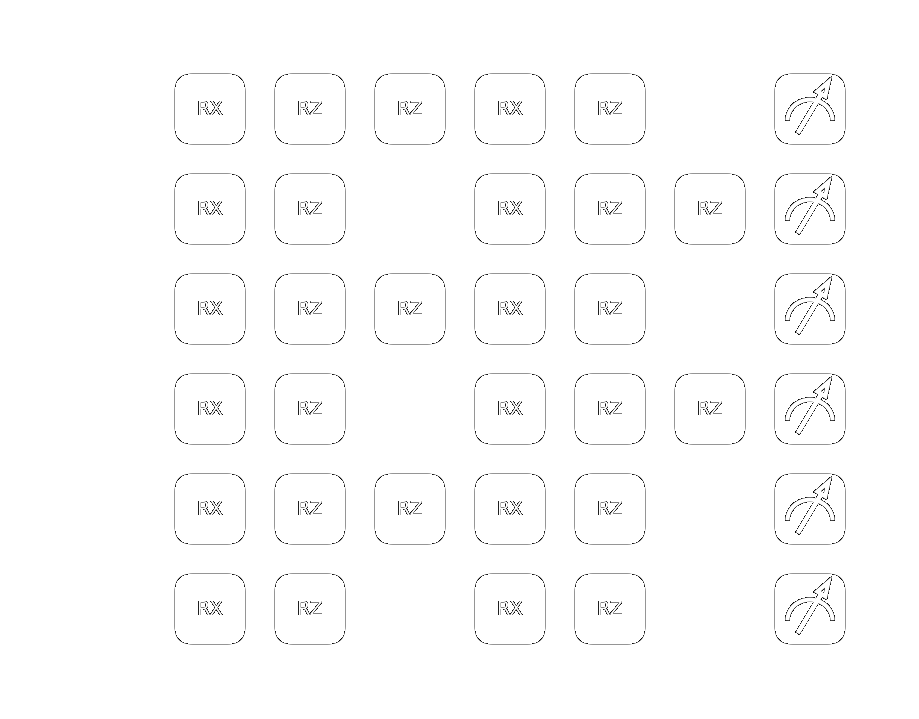

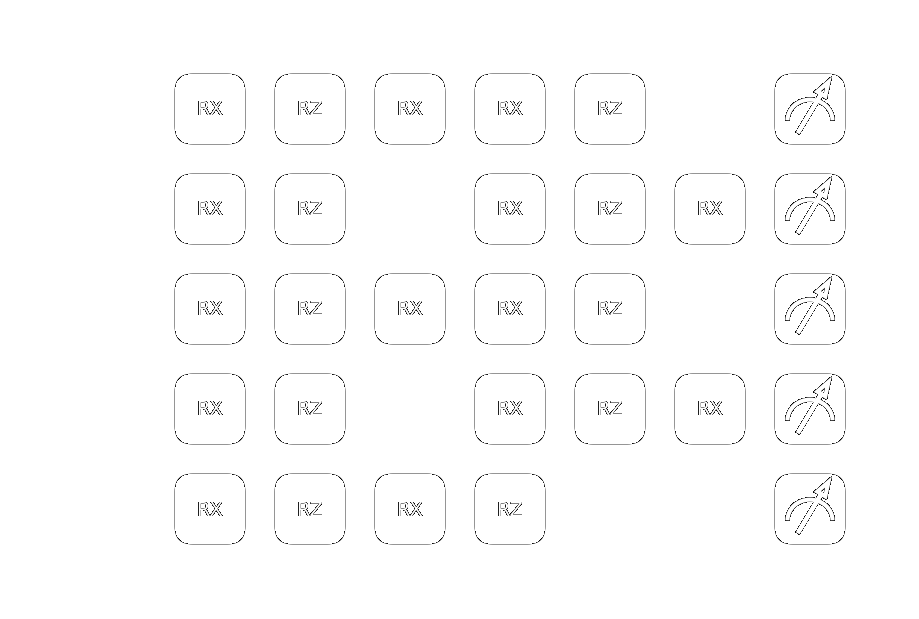

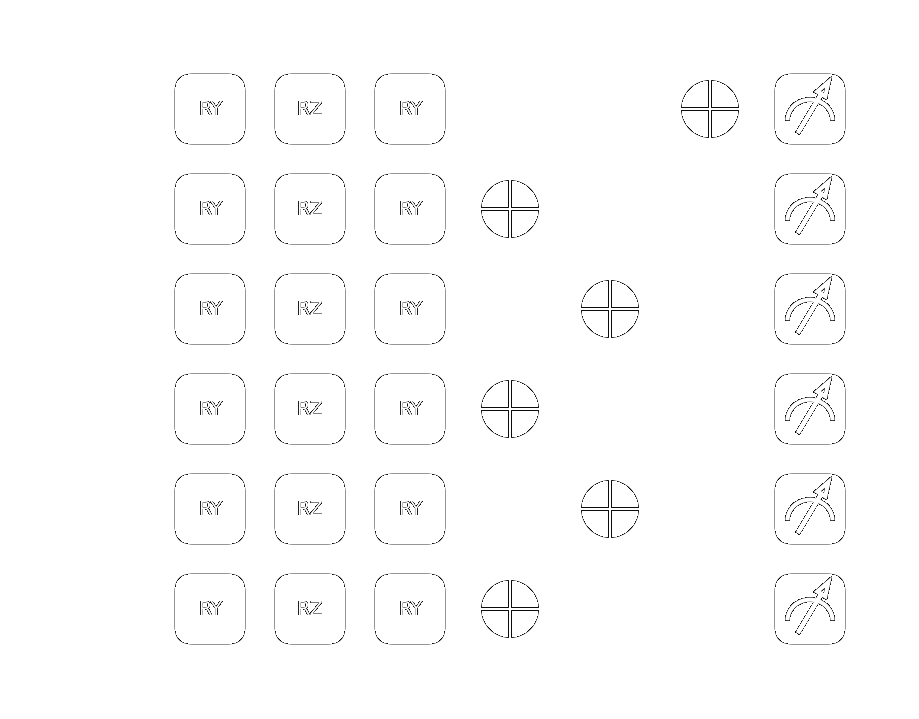

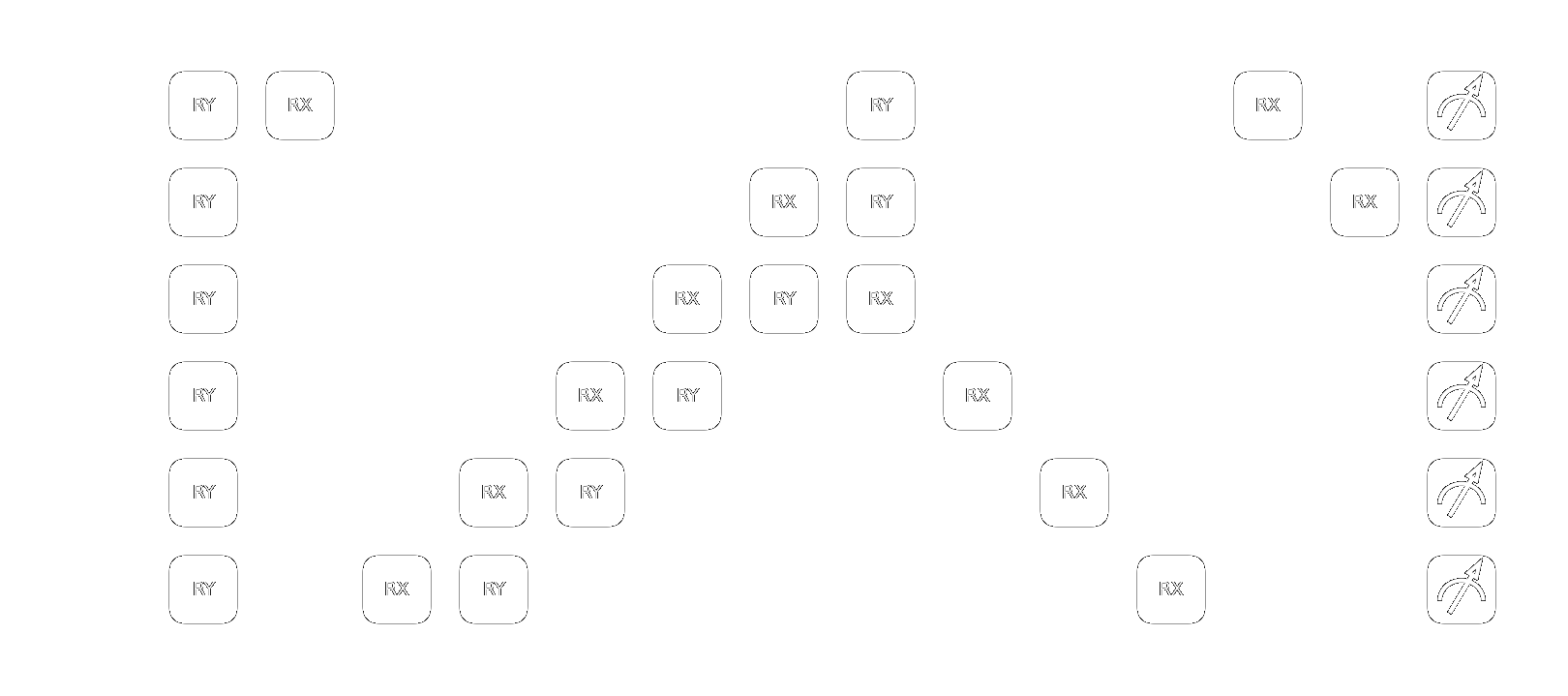

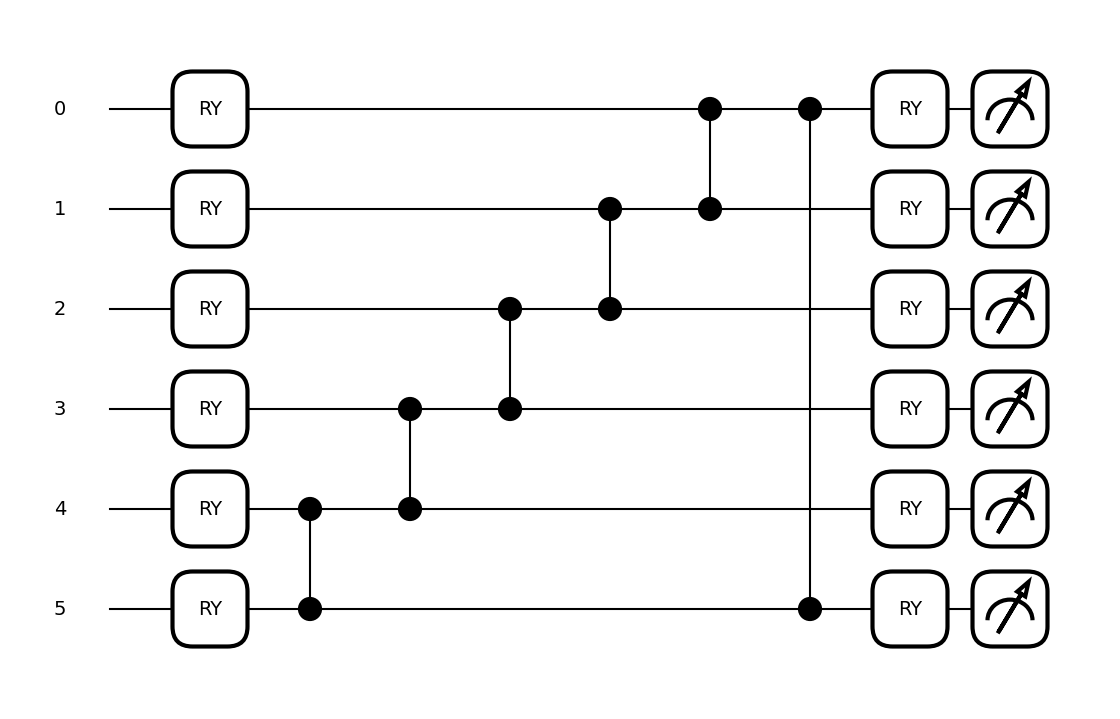

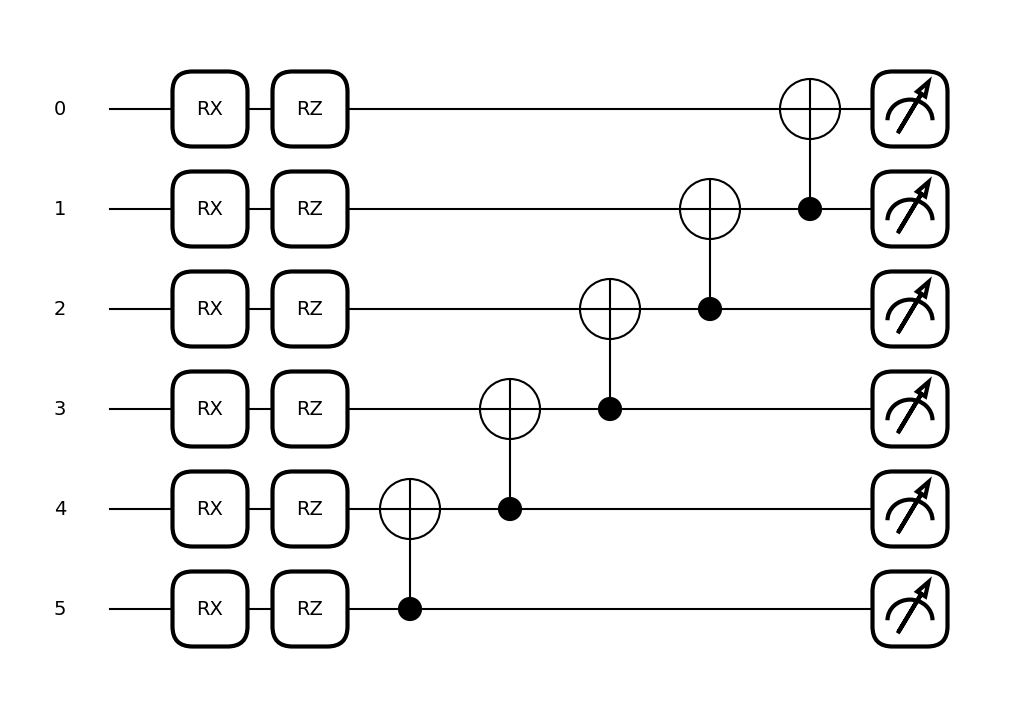

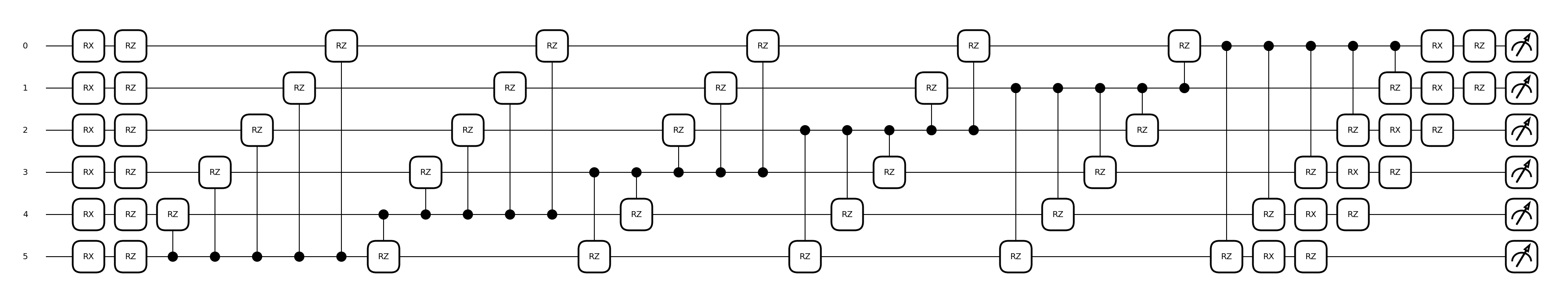

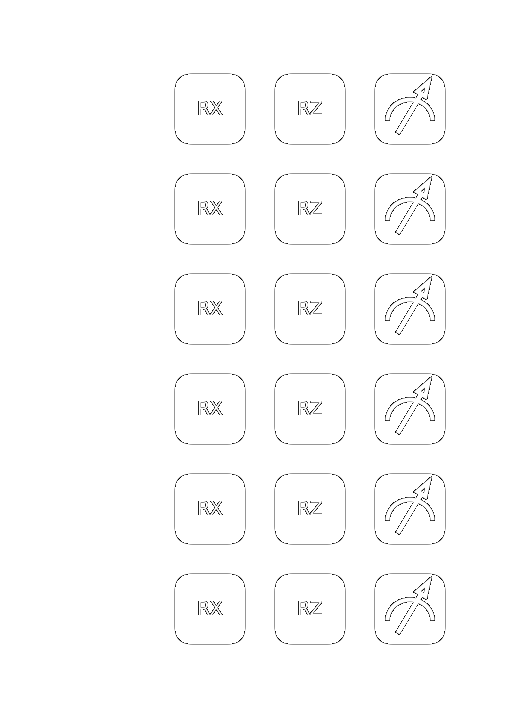

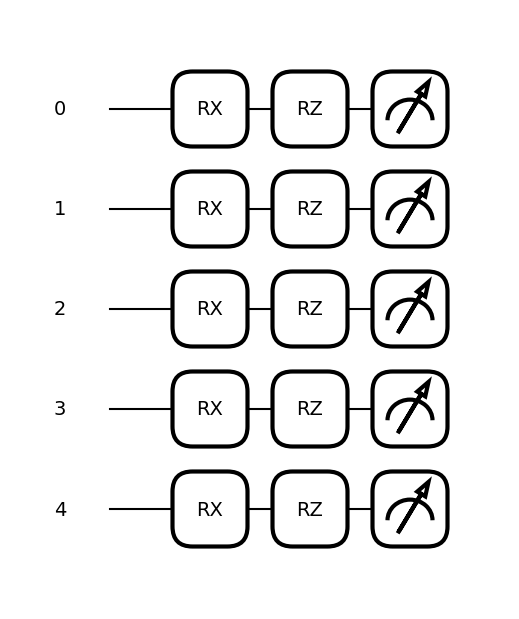

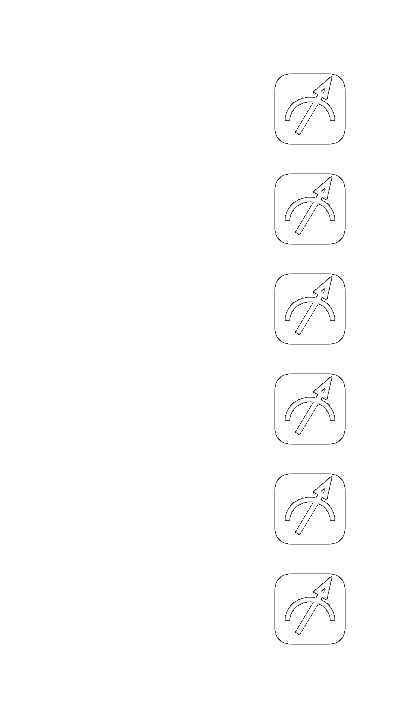

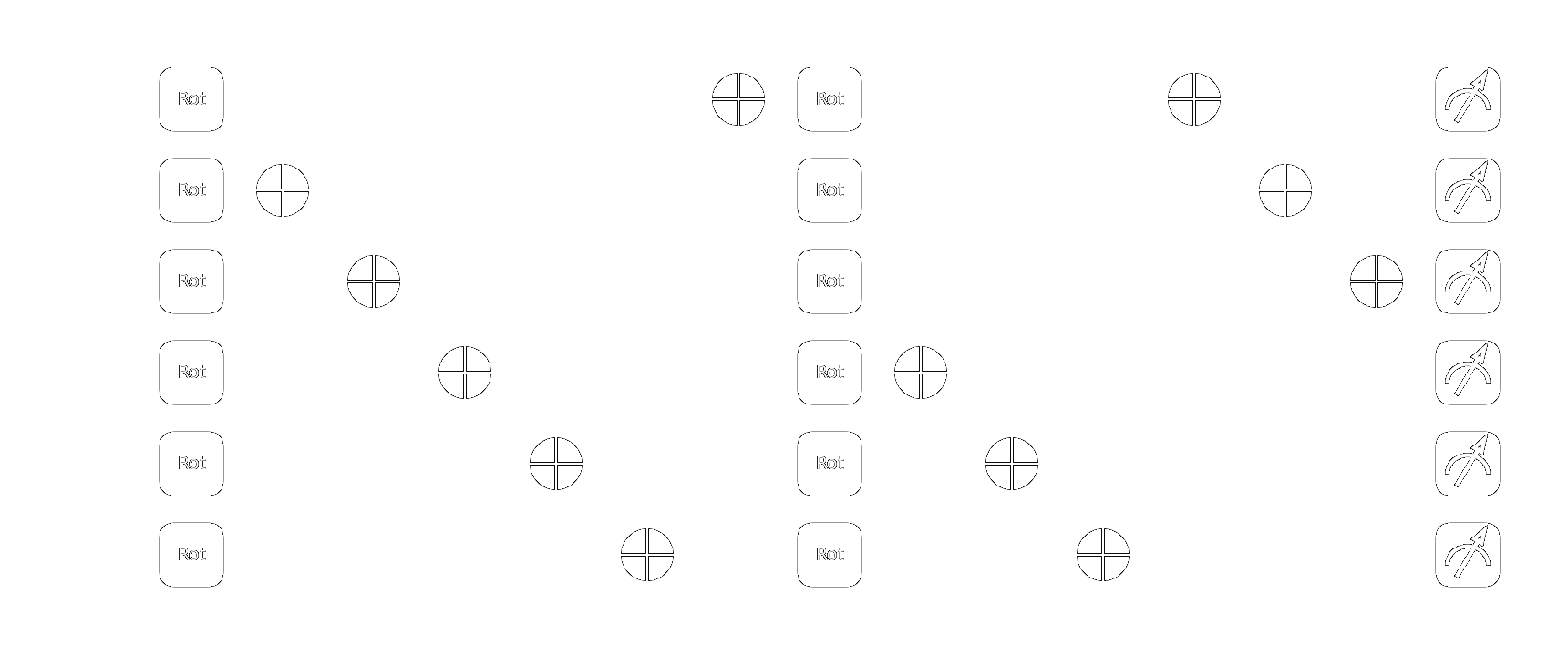

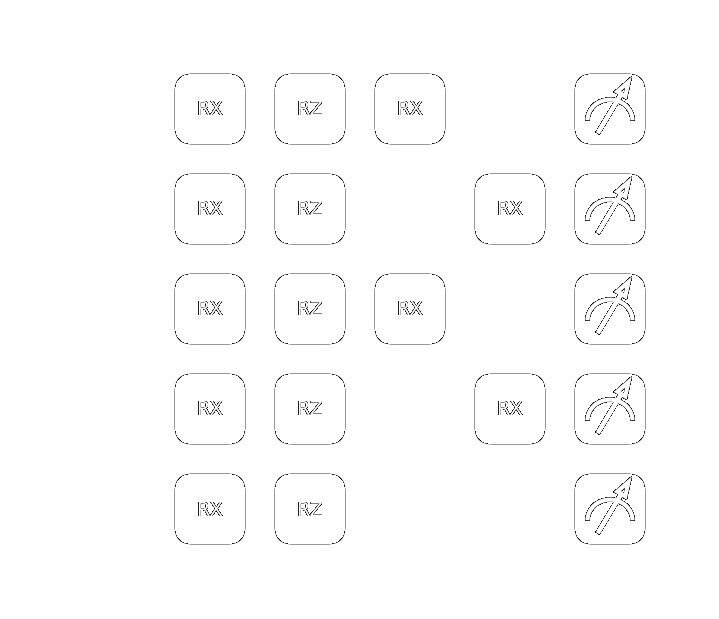

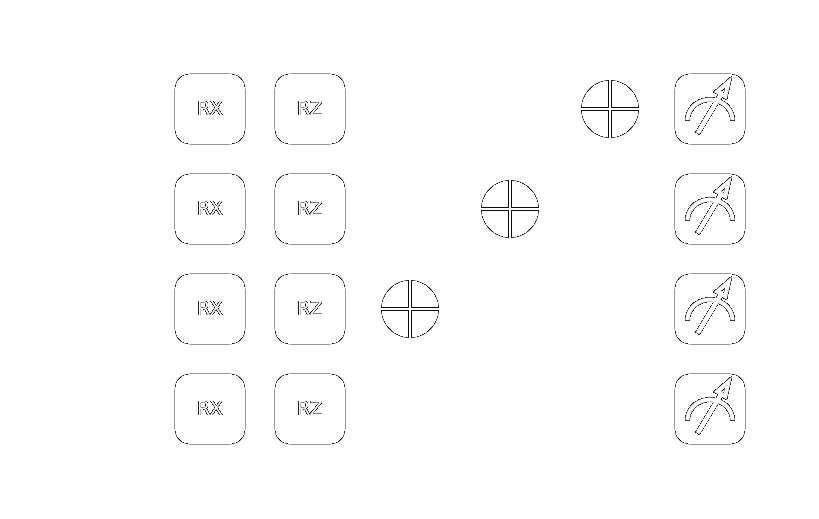

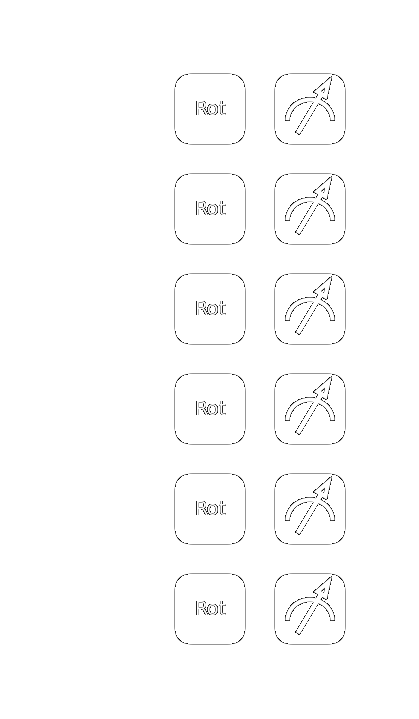

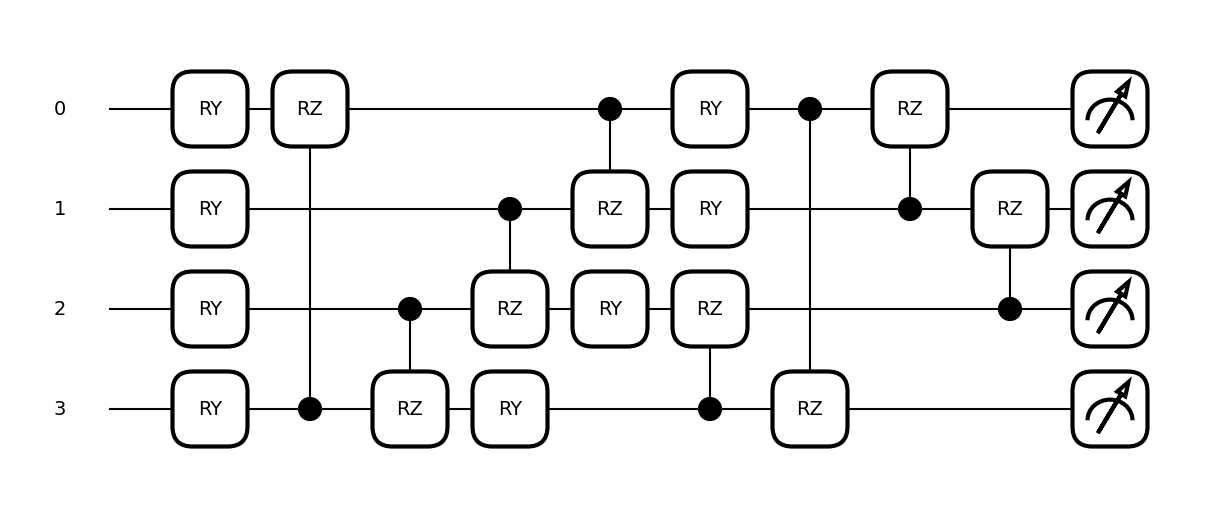

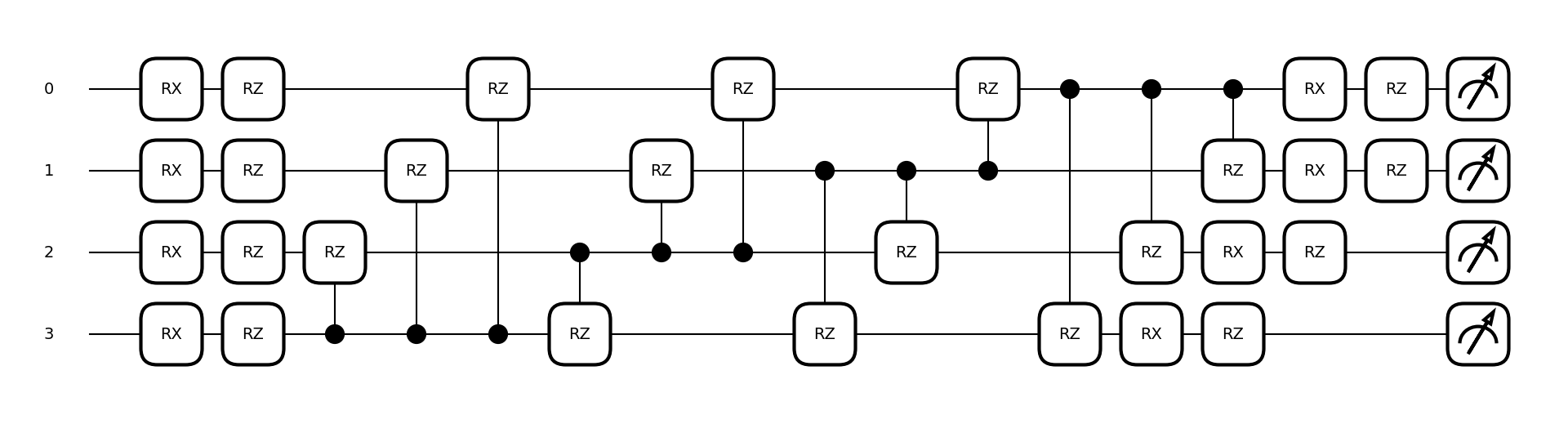

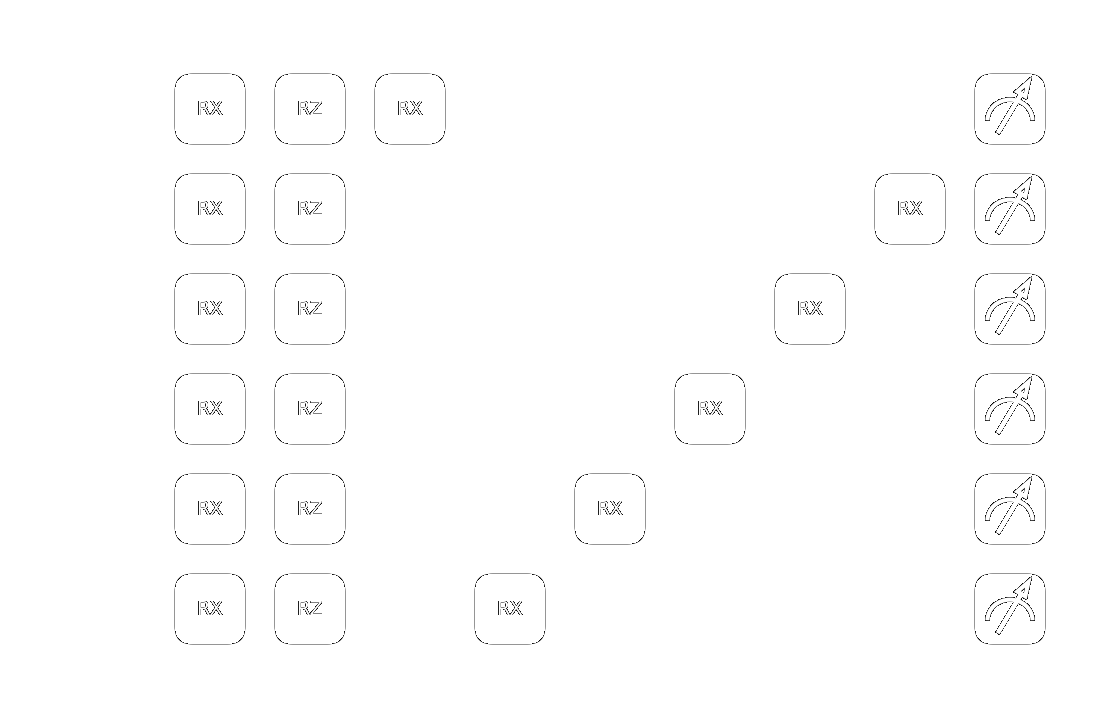

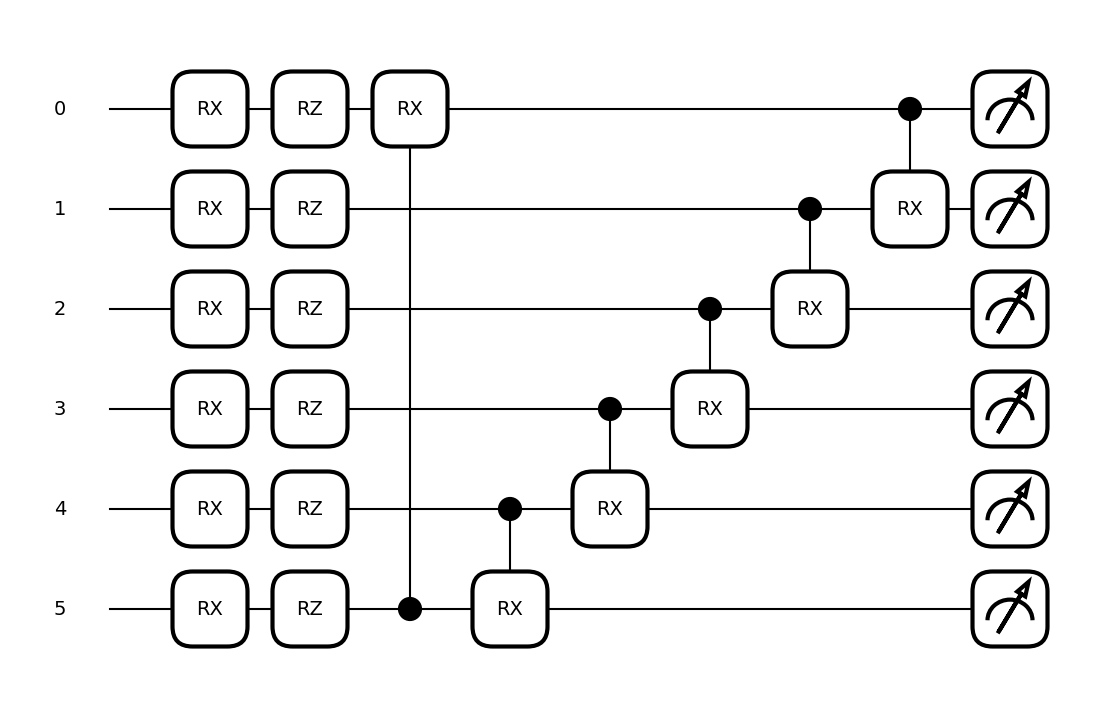

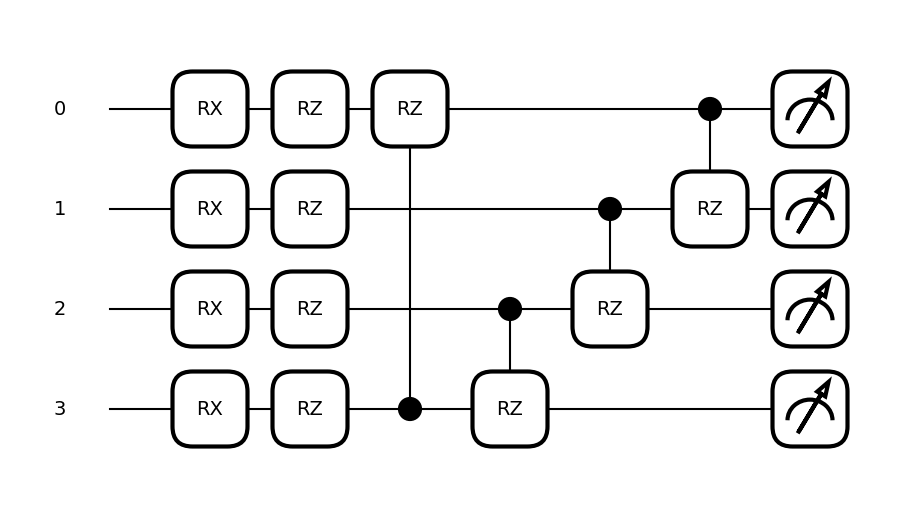

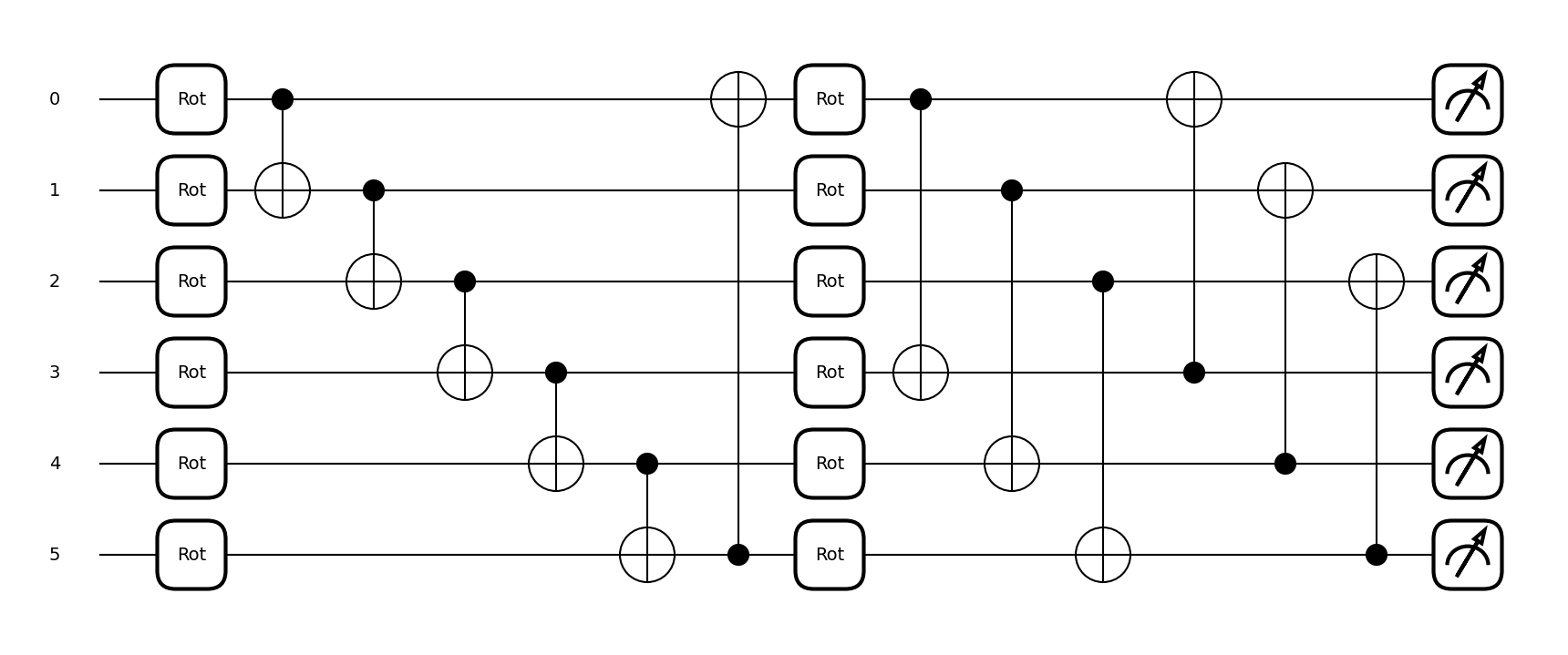

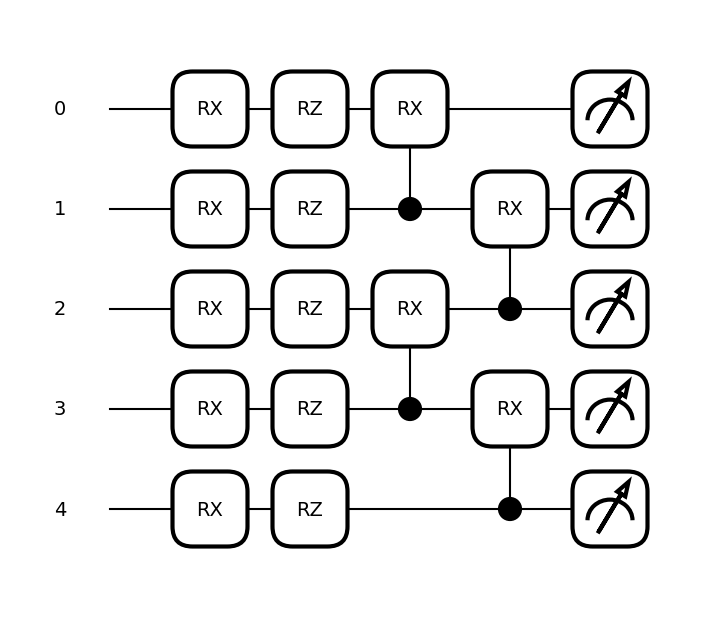

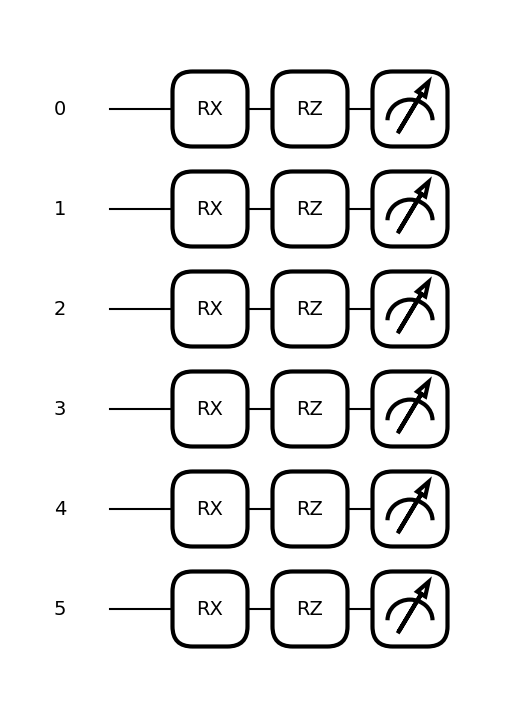

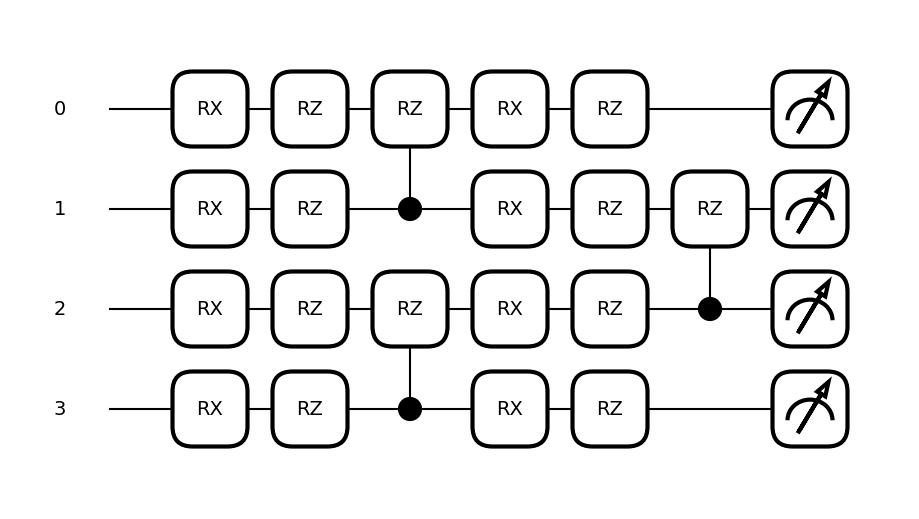

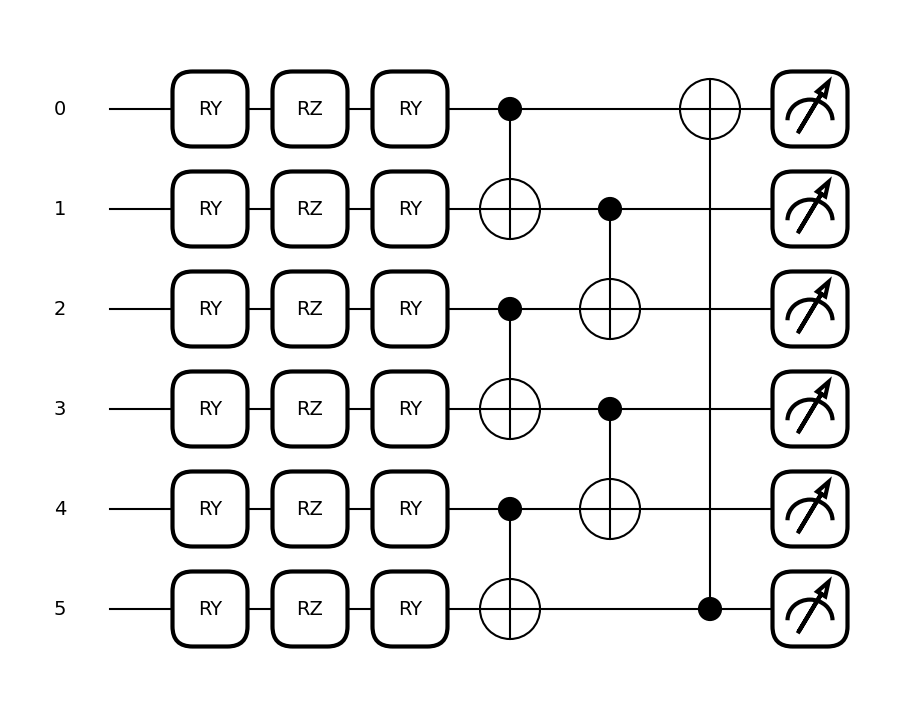

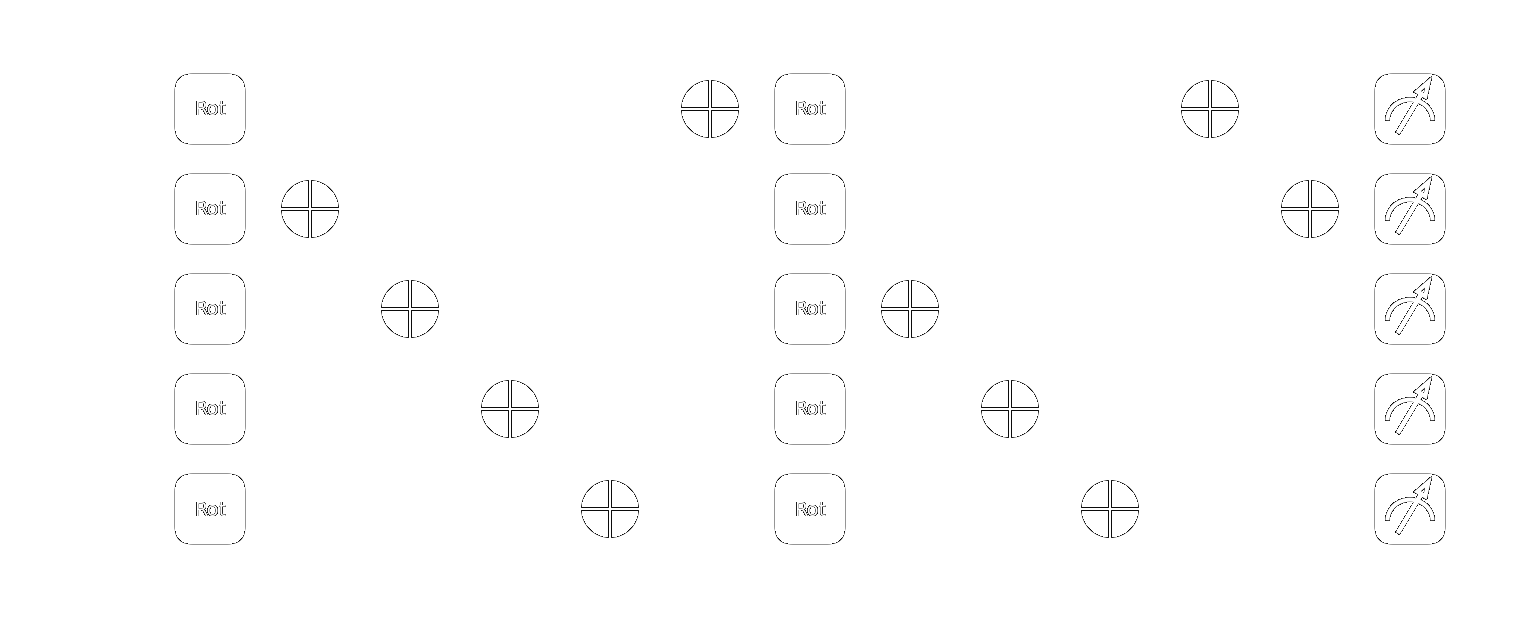

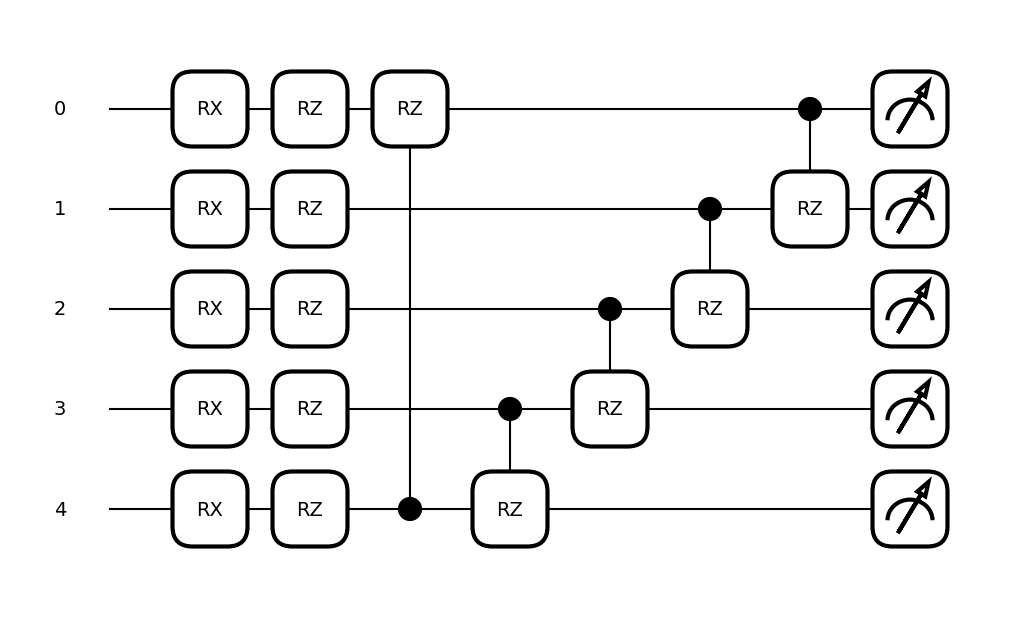

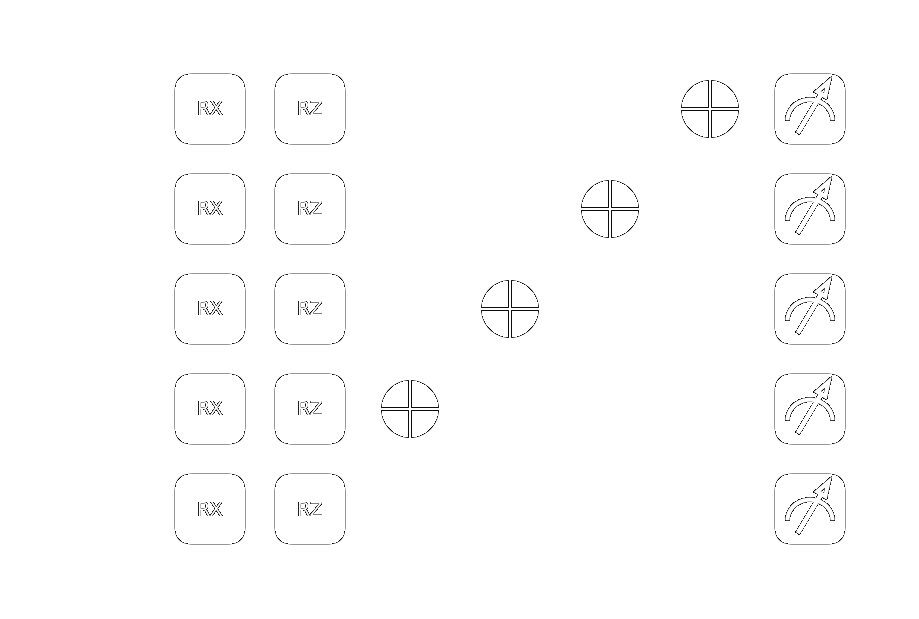

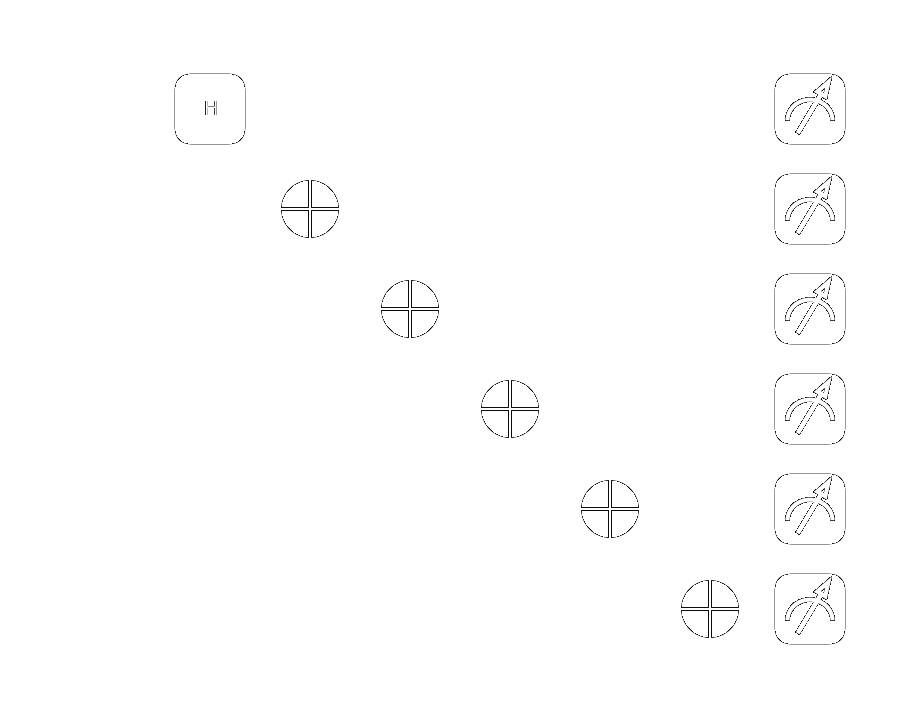

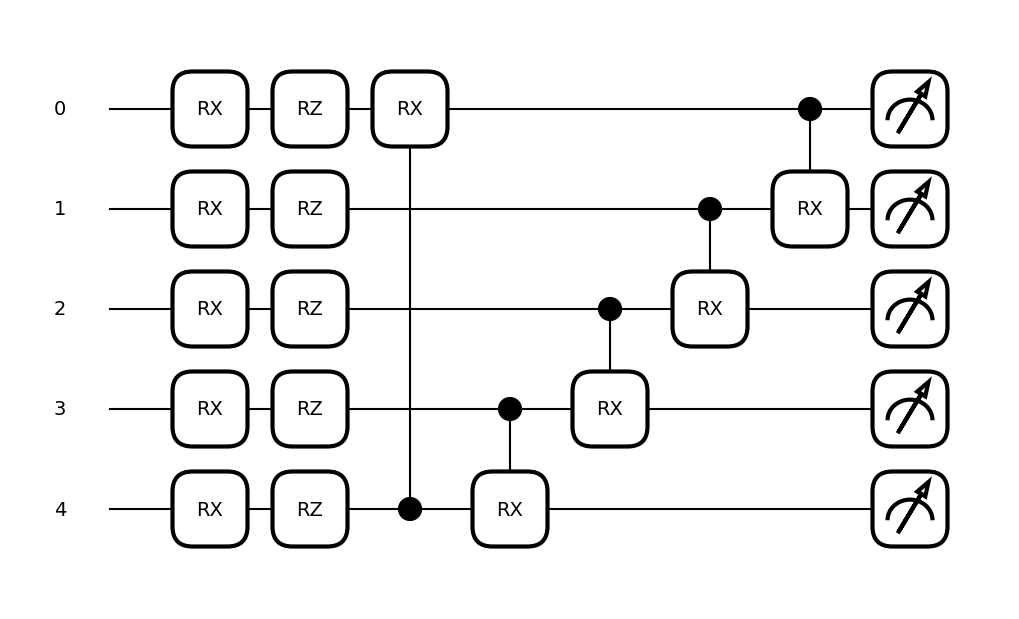

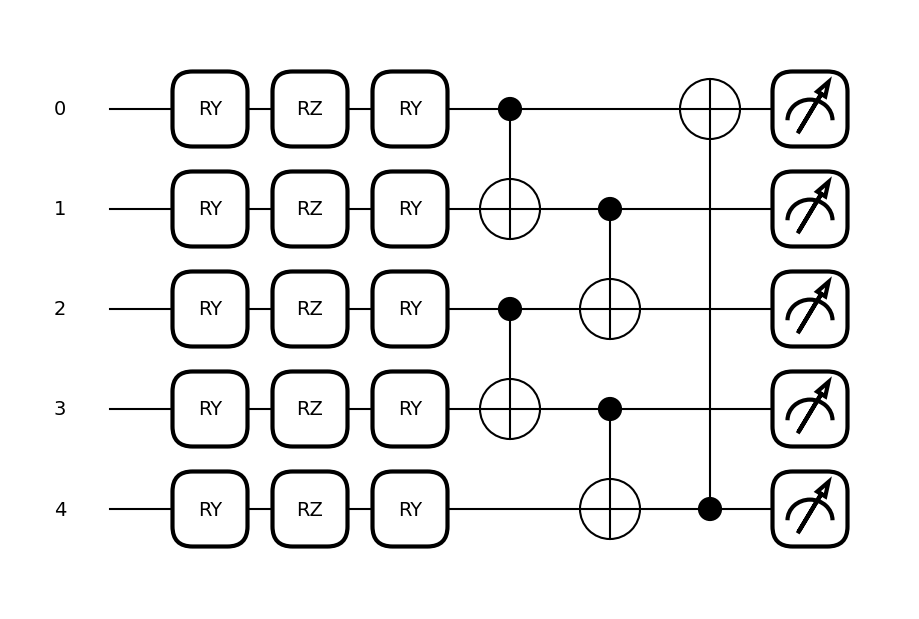

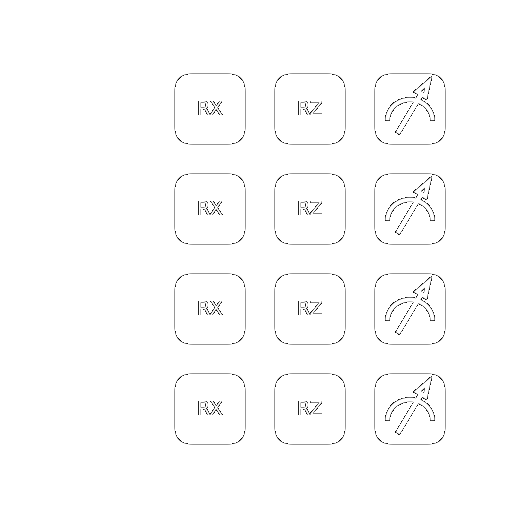

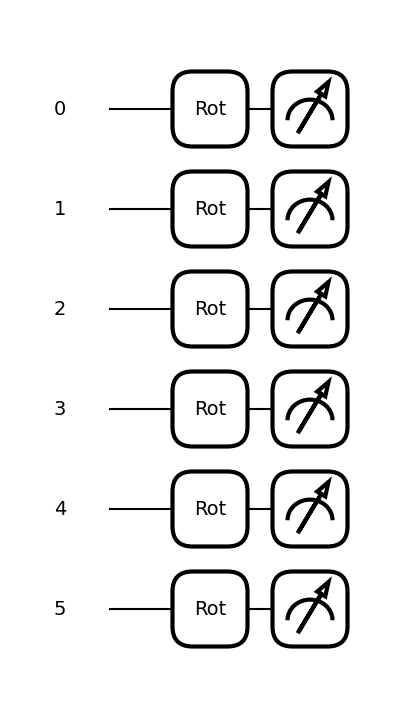

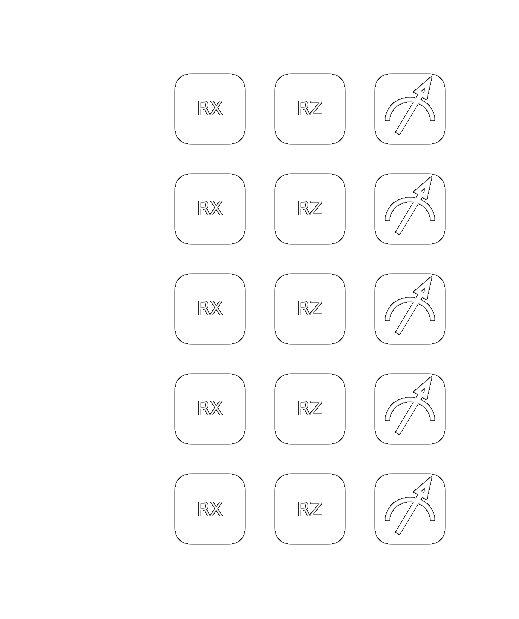

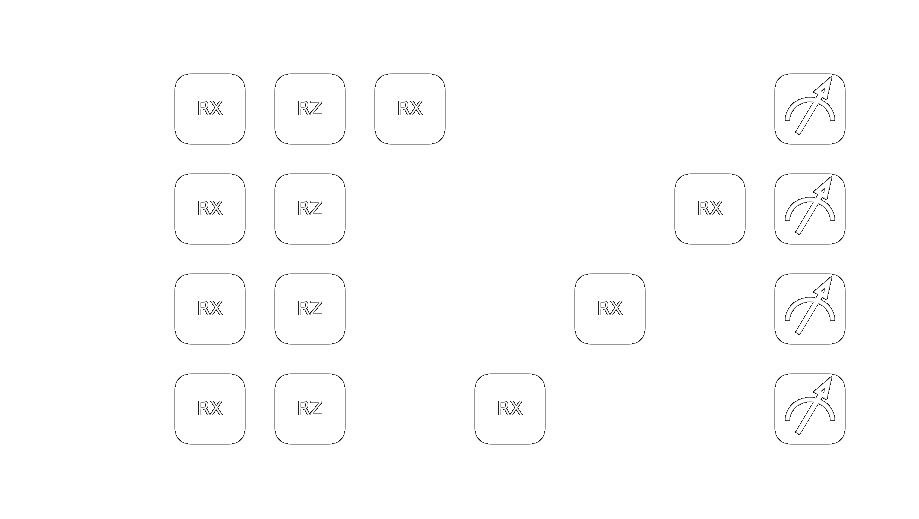

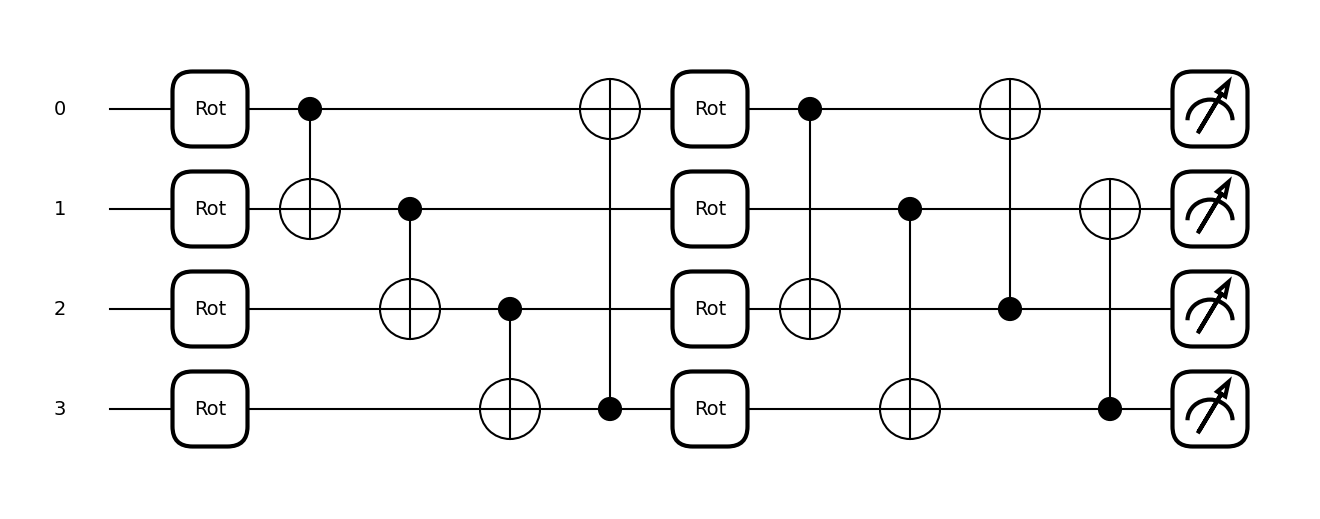

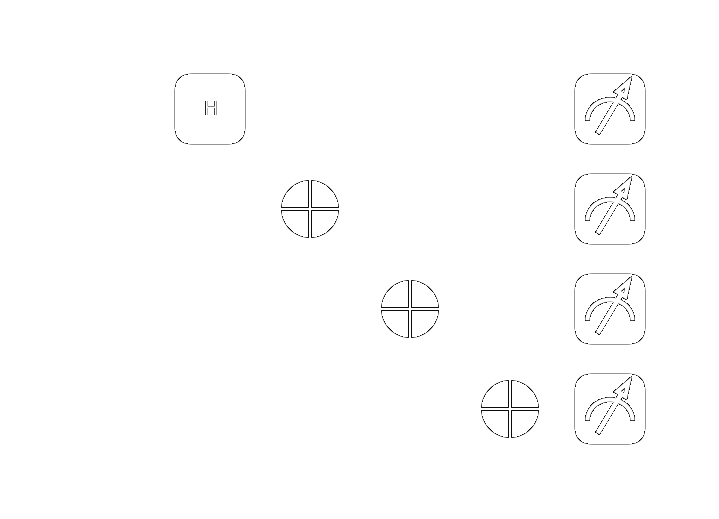

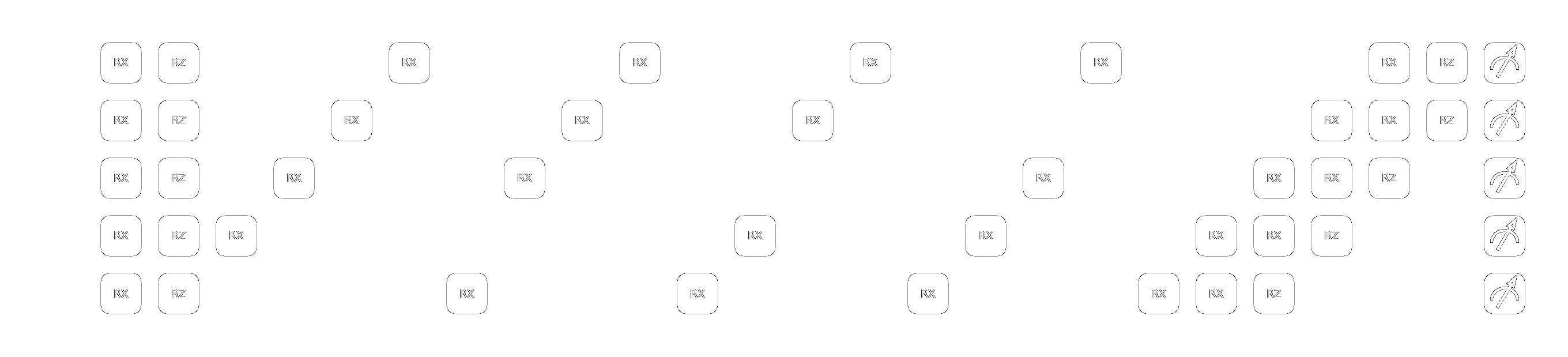

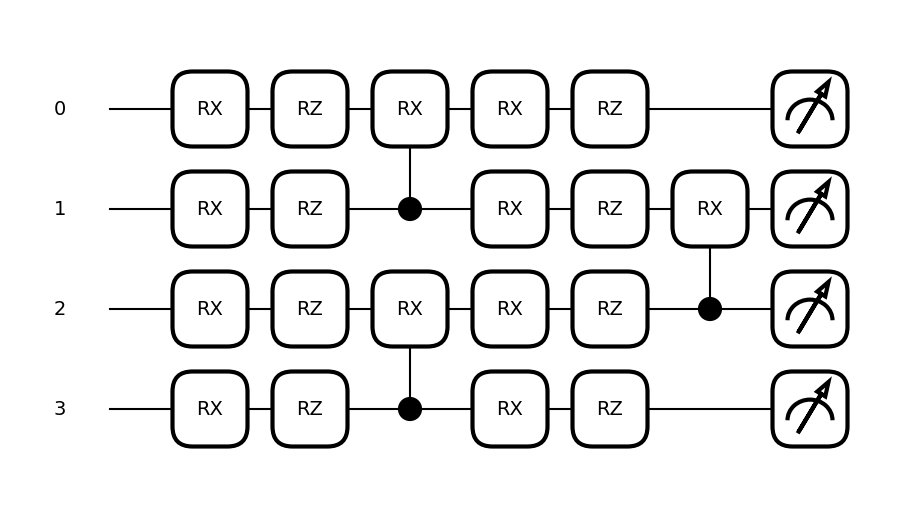

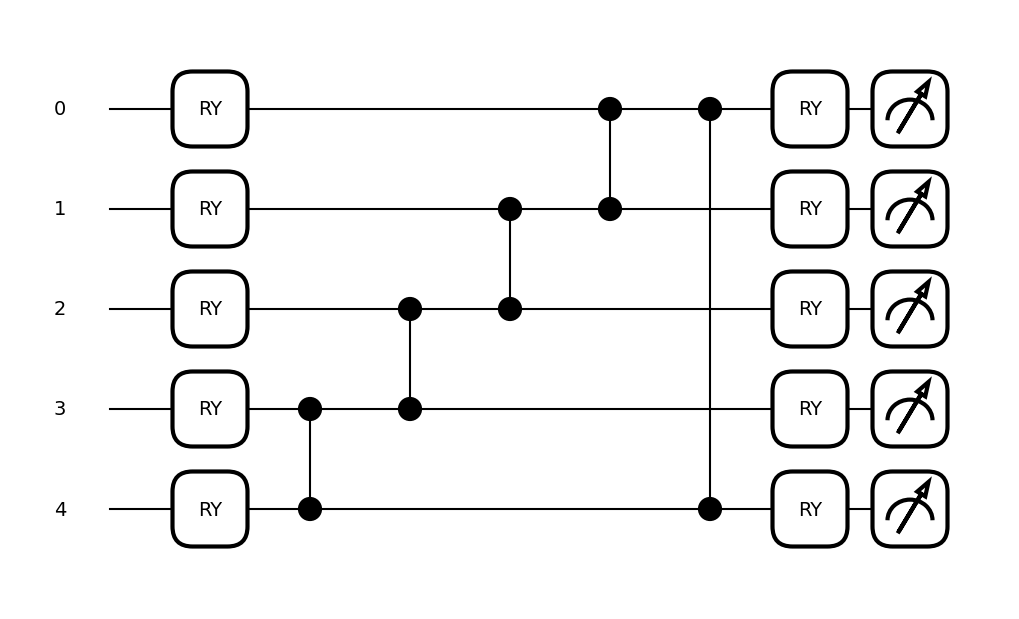

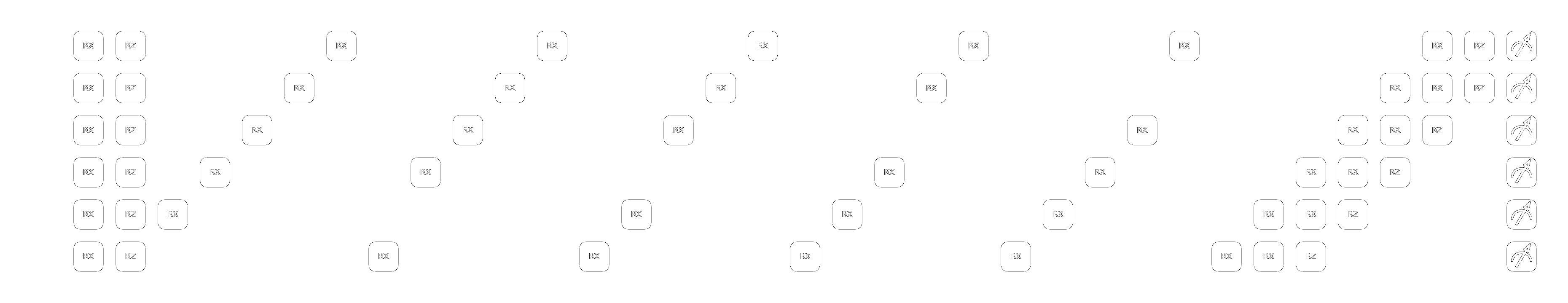

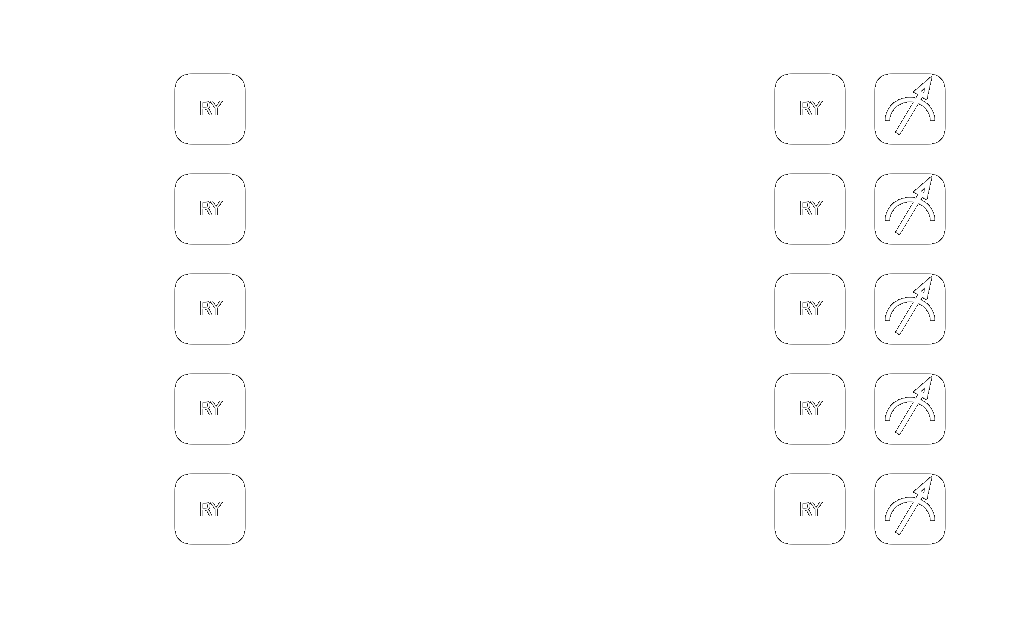

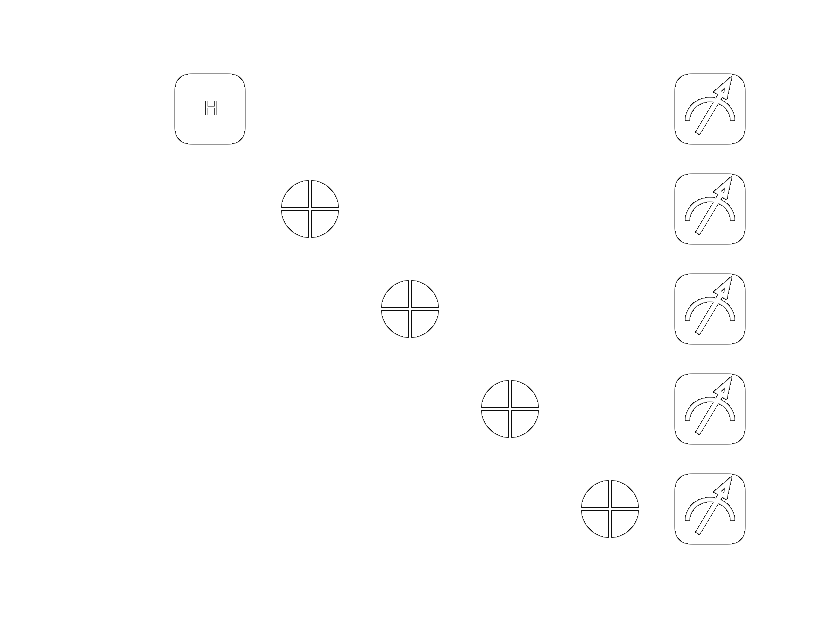

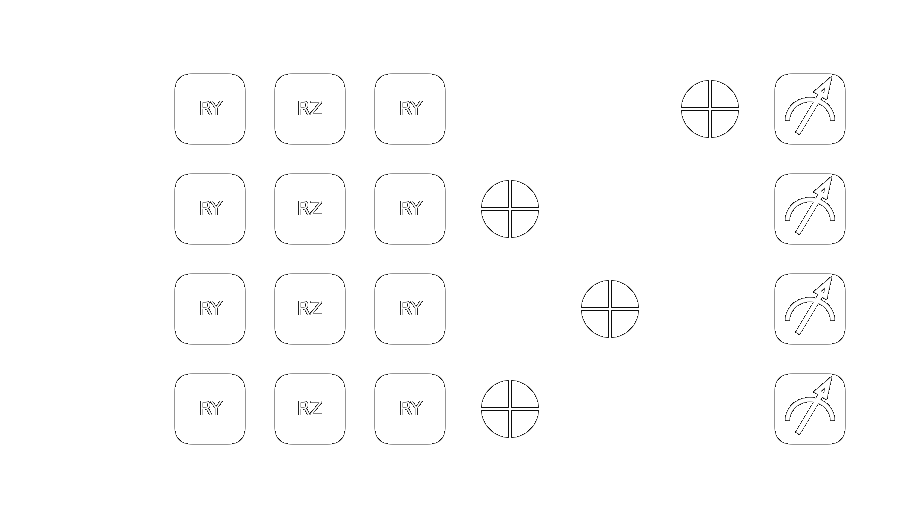

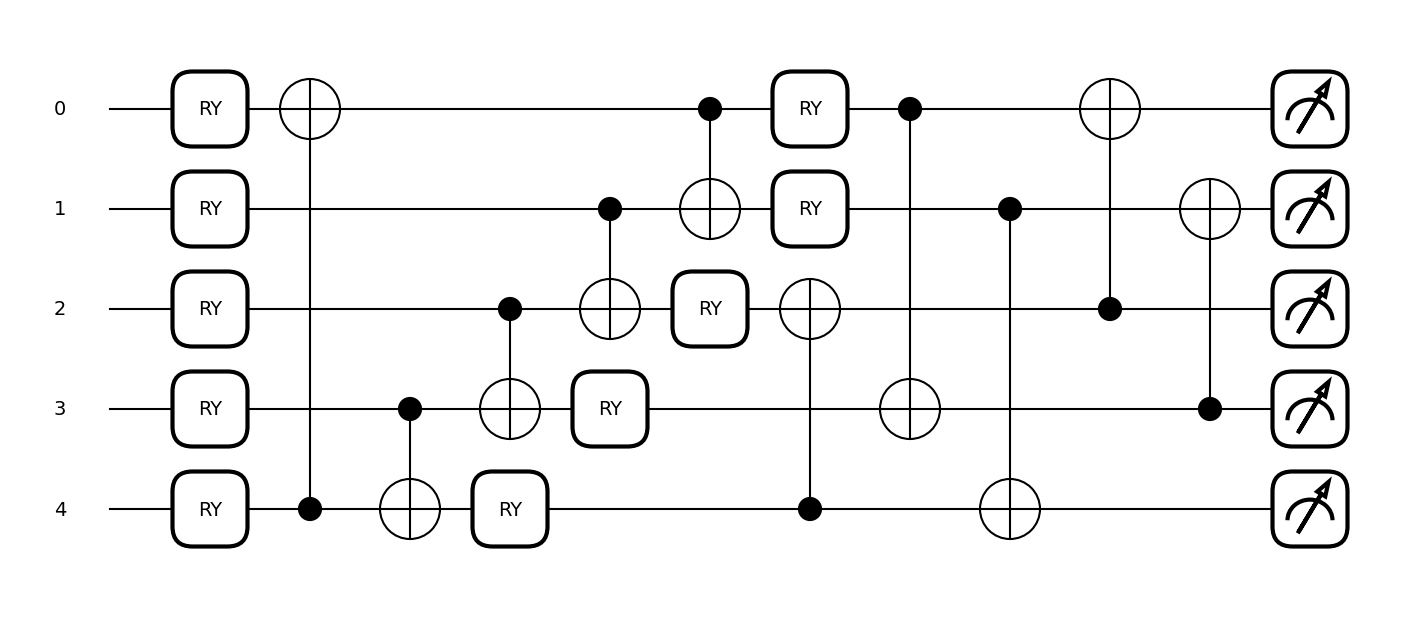

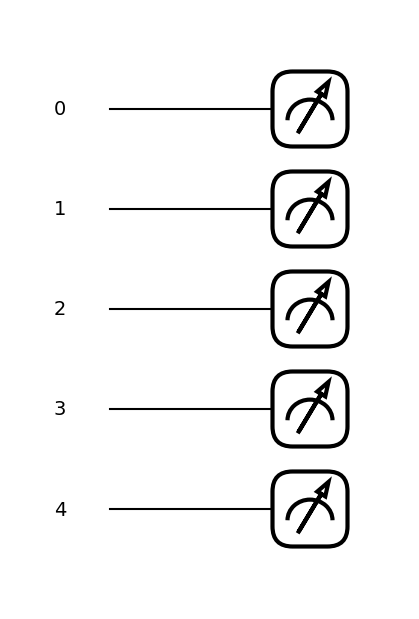

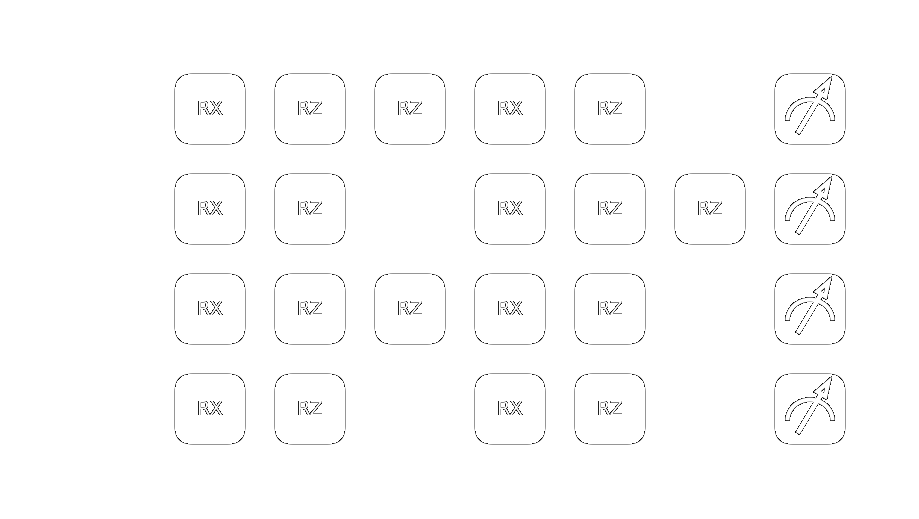

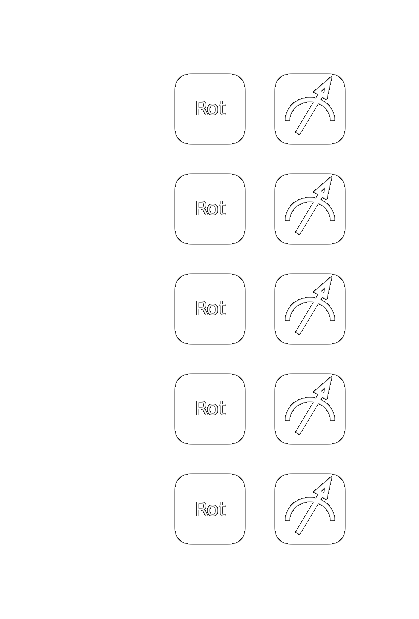

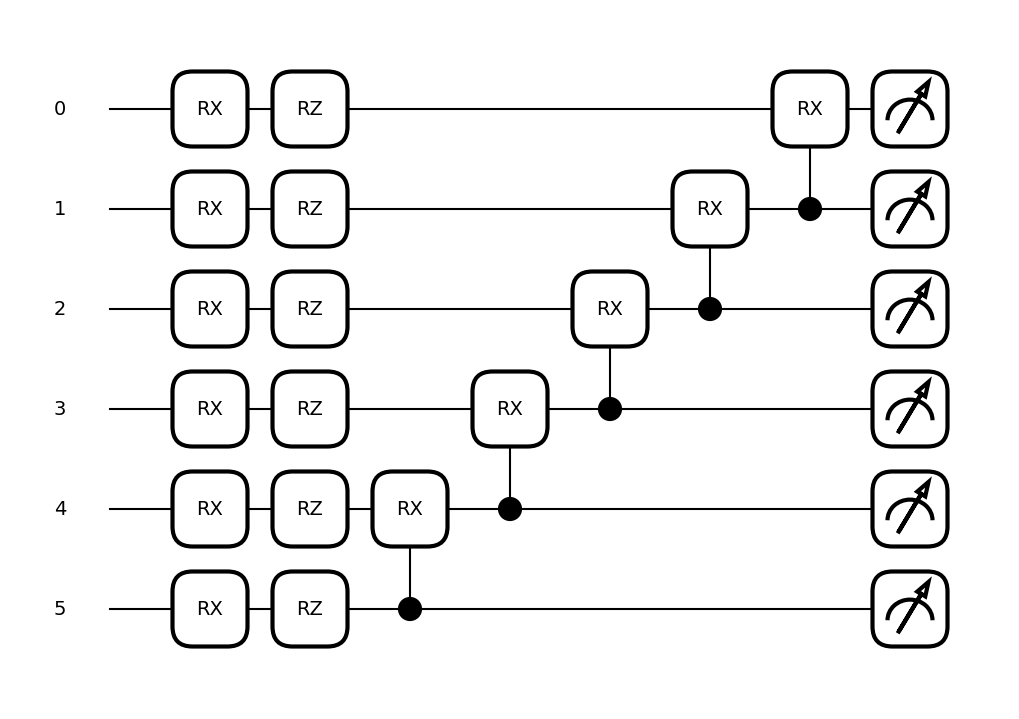

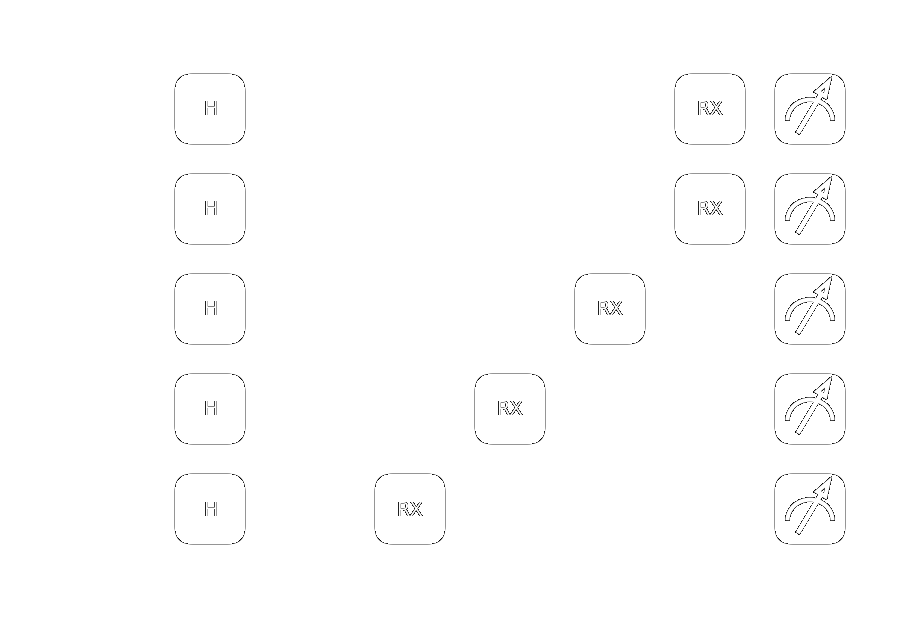

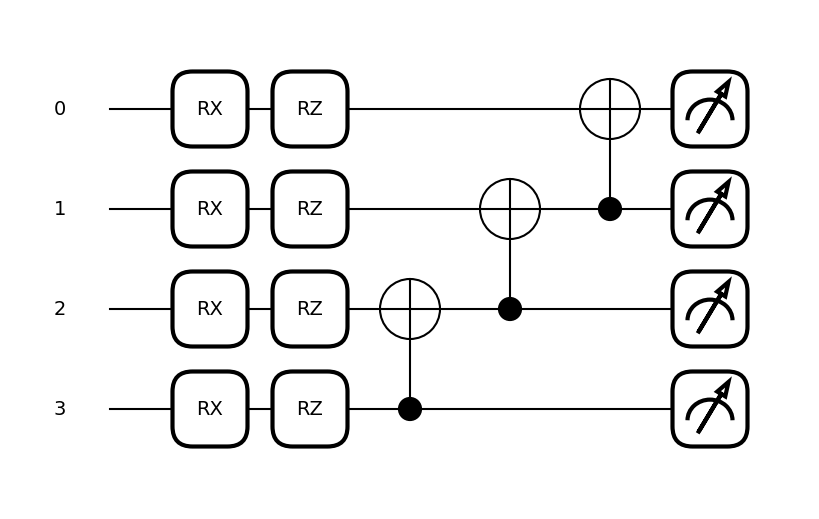

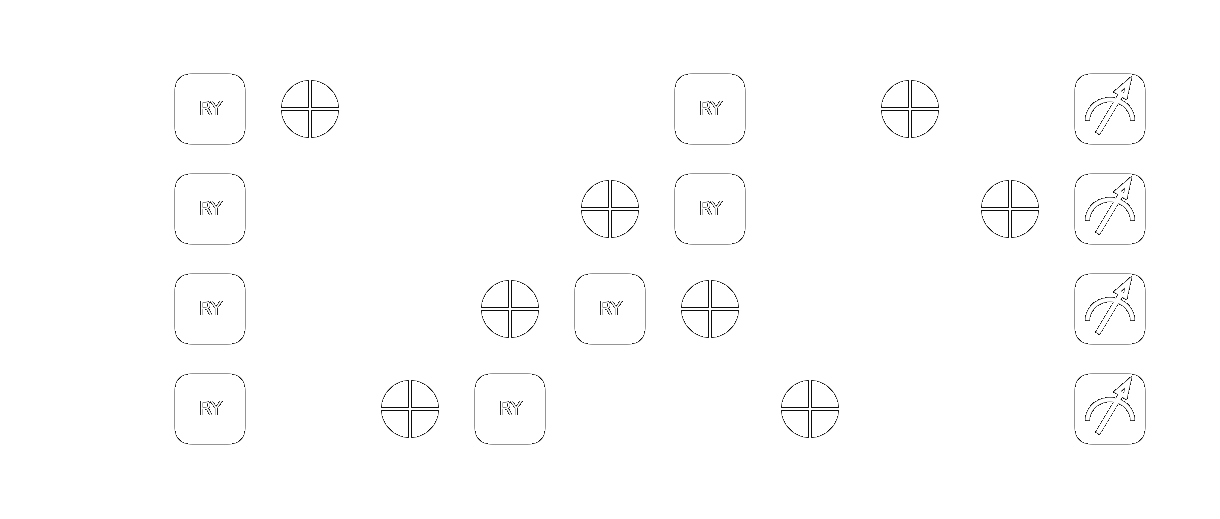

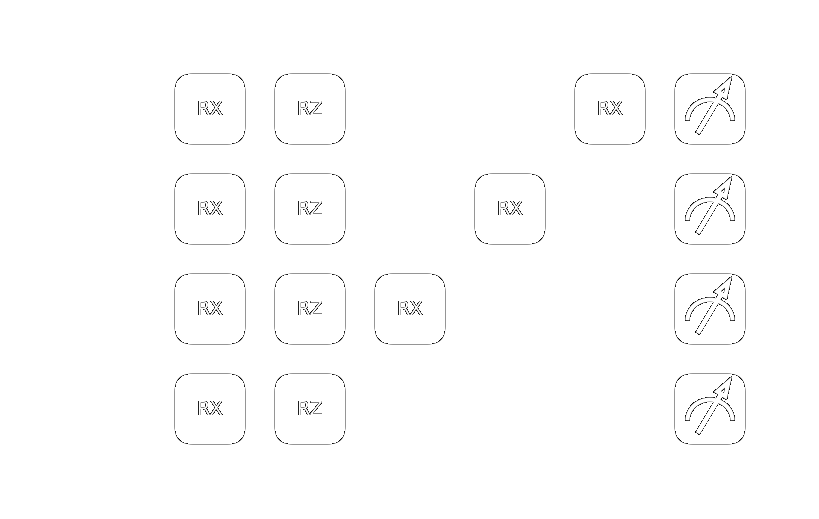

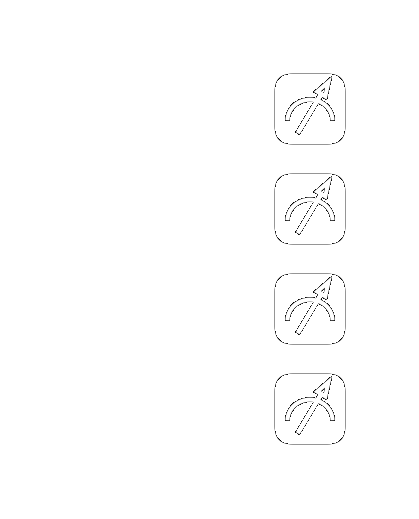

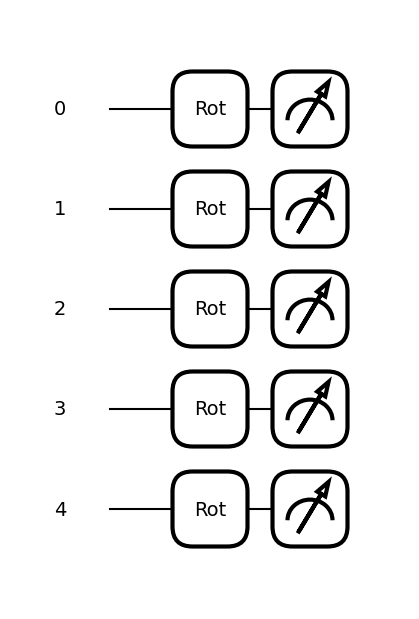

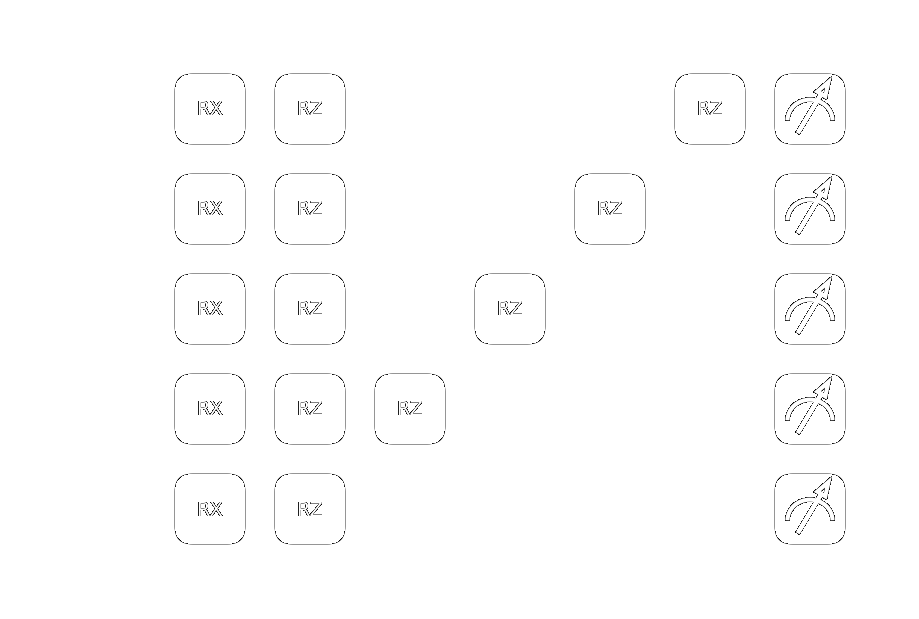

This section shows an overview of all the available Ansaetze in our package. Most of the circuits are implemented according to to the original paper by Sim et al.. Note that Circuit 10 deviates from the original implementation!

Oh and in case you need a refresh on the rotational axes and their corresponding states, here is a Bloch sphere :
