Training#

Mean Squared Error#

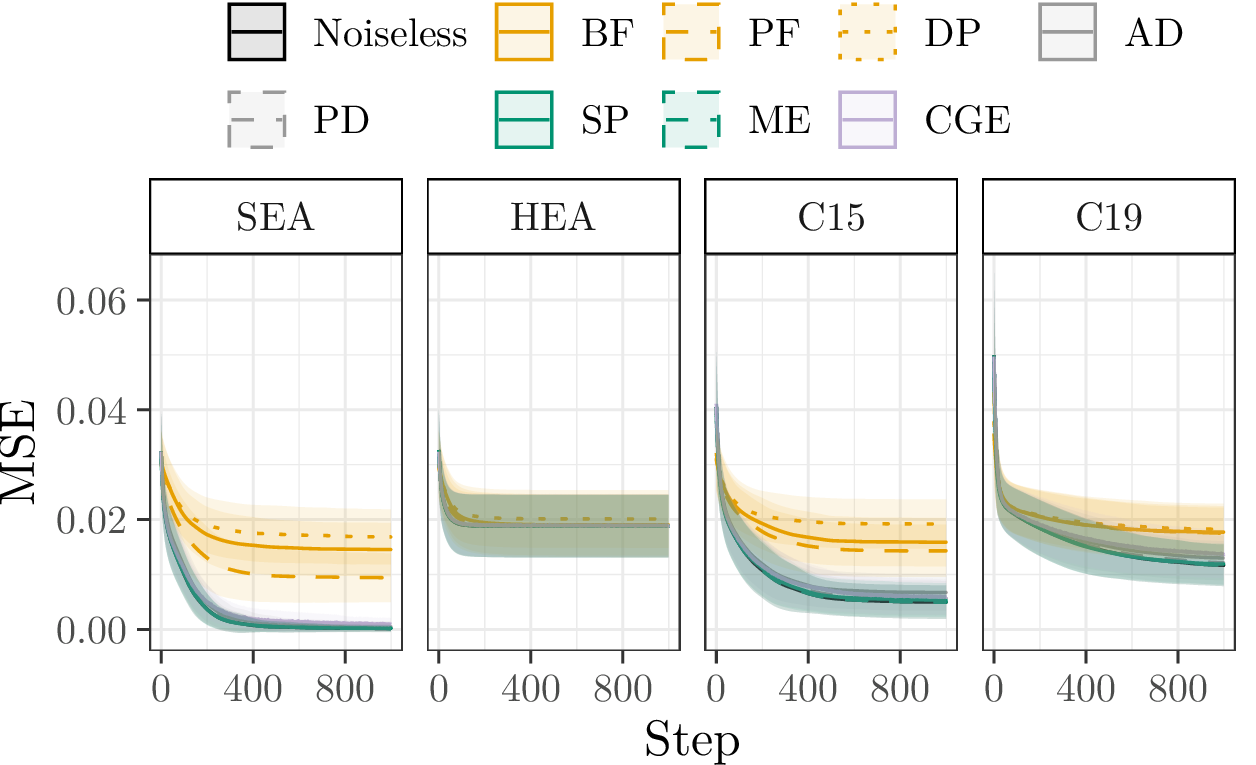

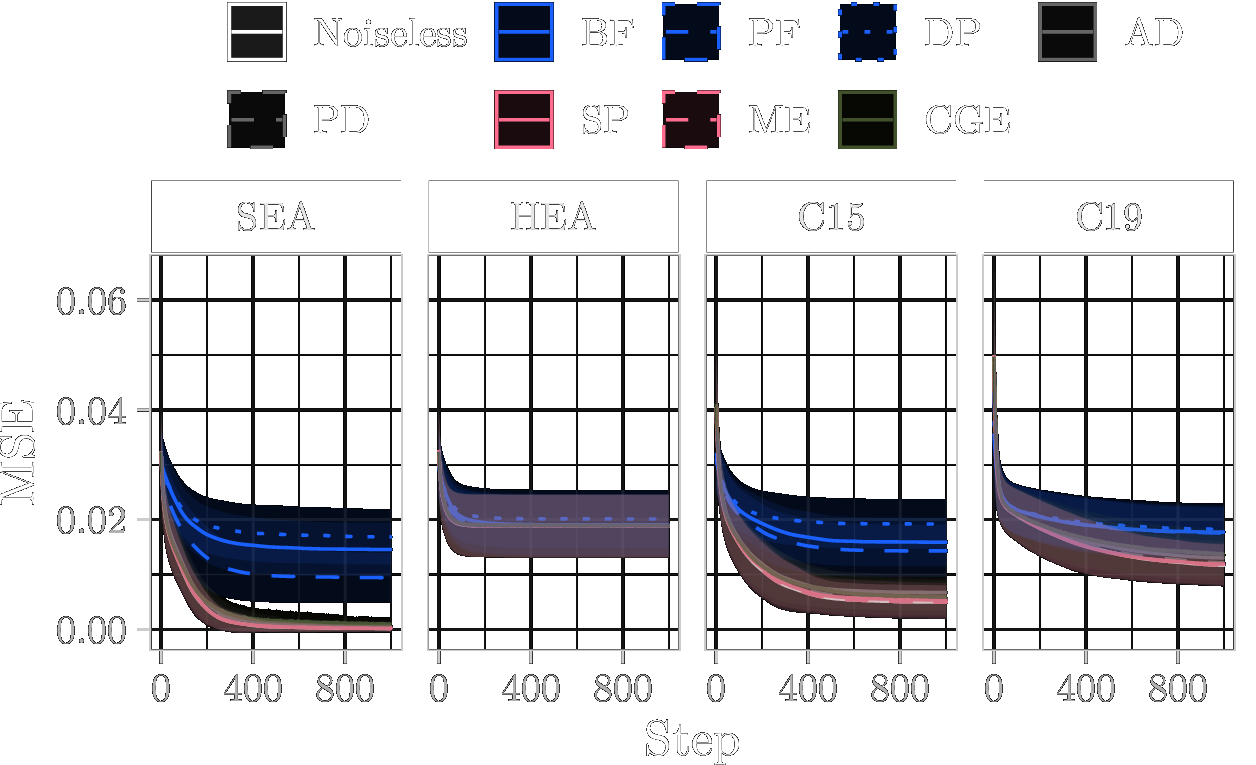

Our Figure 9 in the paper: Training MSE Training MSE

The Mean Squared Error (MSE) over ten parameter initialisation seeds and ten randomly generated problem instances during training. Lines represent the mean, and shaded areas show the standard deviation over the 10 × 10 configurations.

Coefficient Difference#

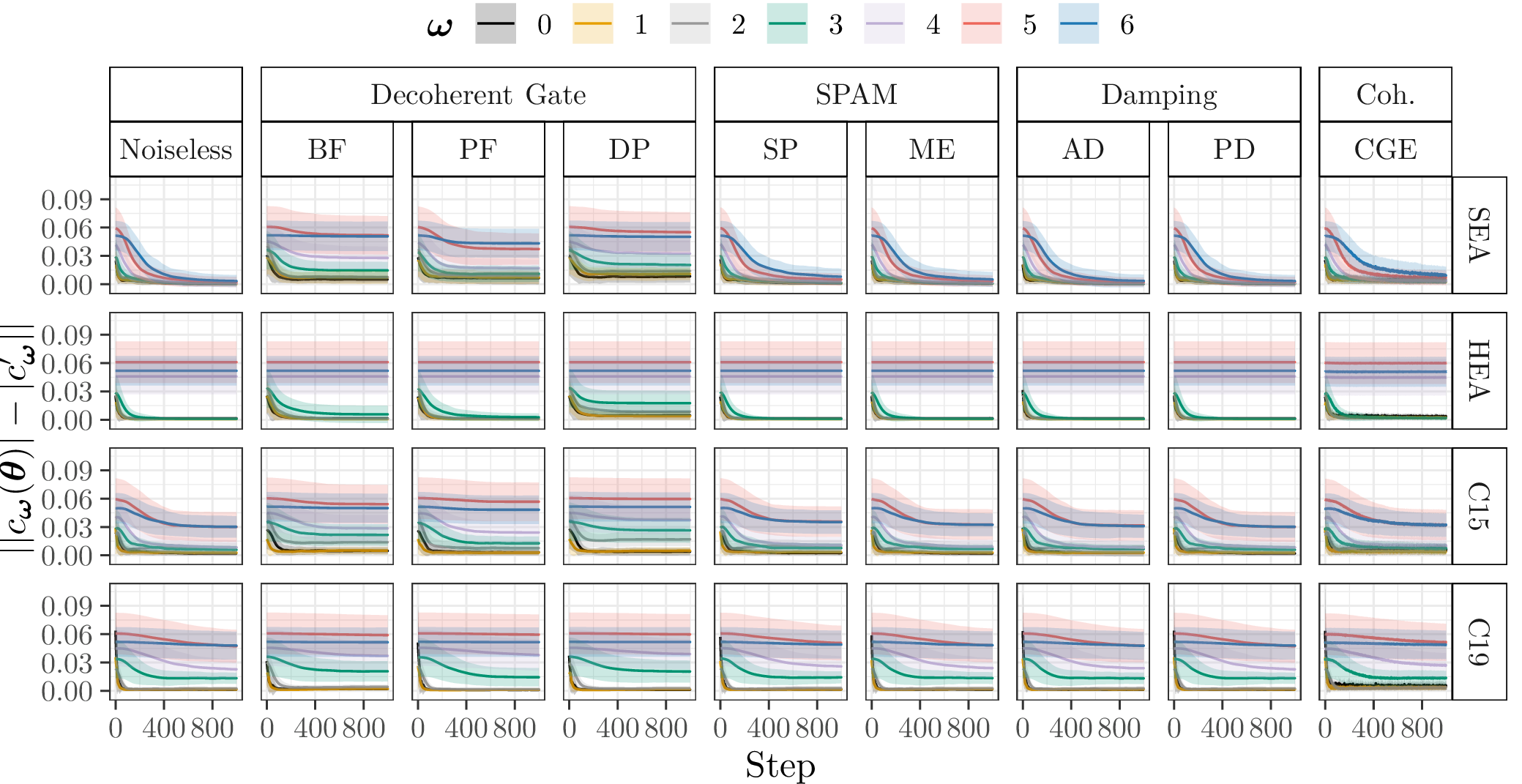

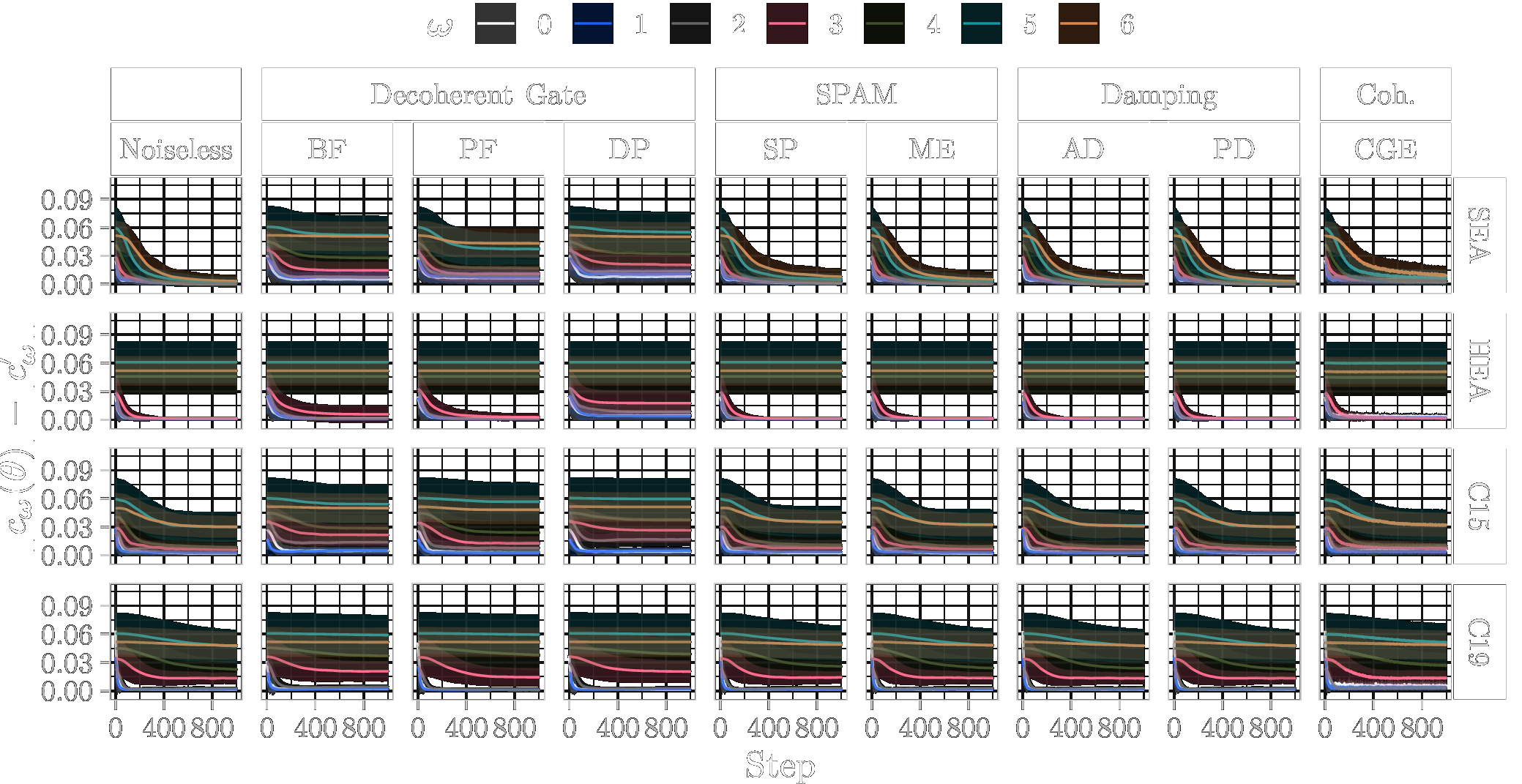

Our Figure 10 in the paper: Training Coefficient Difference Training Coefficient Difference

The difference \(\Delta_{c_{\boldsymbol{\omega}}}\) between the target and learned coefficients \(c_{\boldsymbol{\omega}}(\boldsymbol{\theta})\) and \(c'_{\boldsymbol{\omega}}\) respectively of the QFMs averaged over ten model parameter initialisation seeds and ten randomly generated problem instances during training. Lines represent the mean, and shaded areas show the standard deviation over the 10 × 10 configurations.

Coefficients during Training for Problem Instances#

In the following, we show the learned absolute coefficients of the QFMs averaged over ten parameter model initialisation seeds for each single randomly generated probelm instance with seeds \([1000\dots 1009]\) and different types of noise (3%) during training of 1000 steps. In the figures the shaded areas correspond to the standard deviation across the parameter initialisation seeds from the mean. The coefficients of the objective Fourier series are marked with dashed lines.

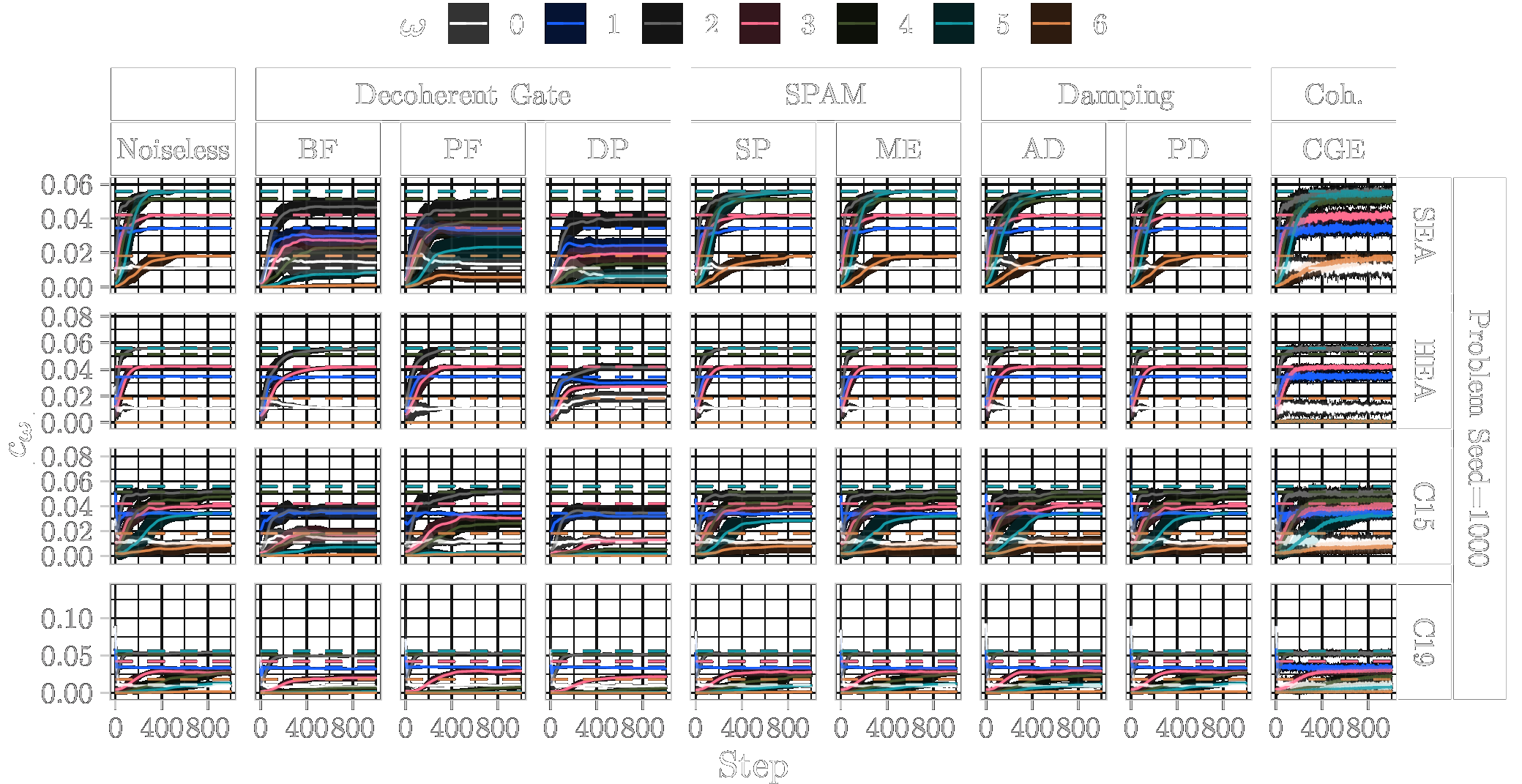

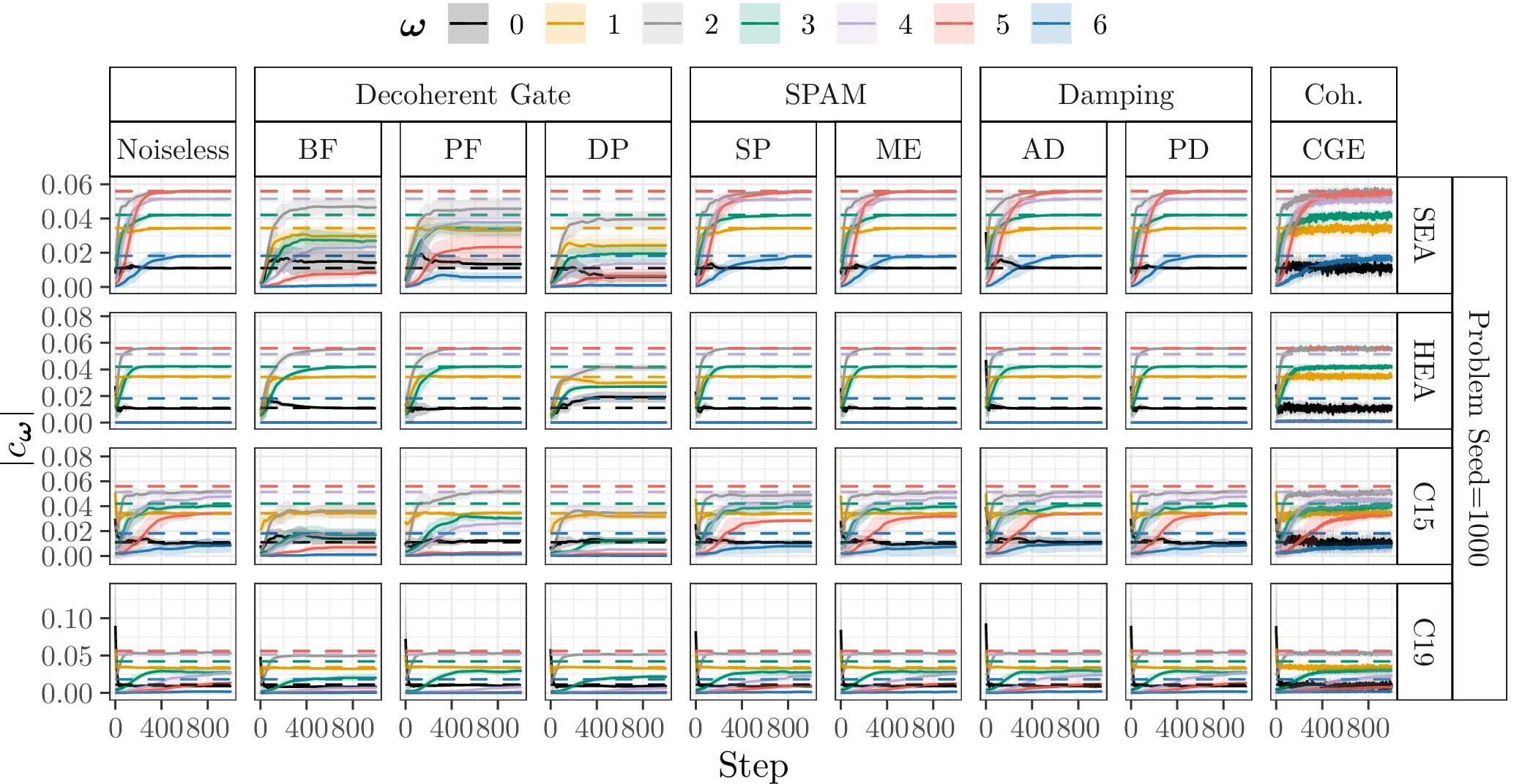

Problem instance seed 1000 (Our Figure 18 in the paper): Training Coefficients seed 1000 Training Coefficients seed 1000

Problem instance seed 1001: Training Coefficients seed 1001 Training Coefficients seed 1001

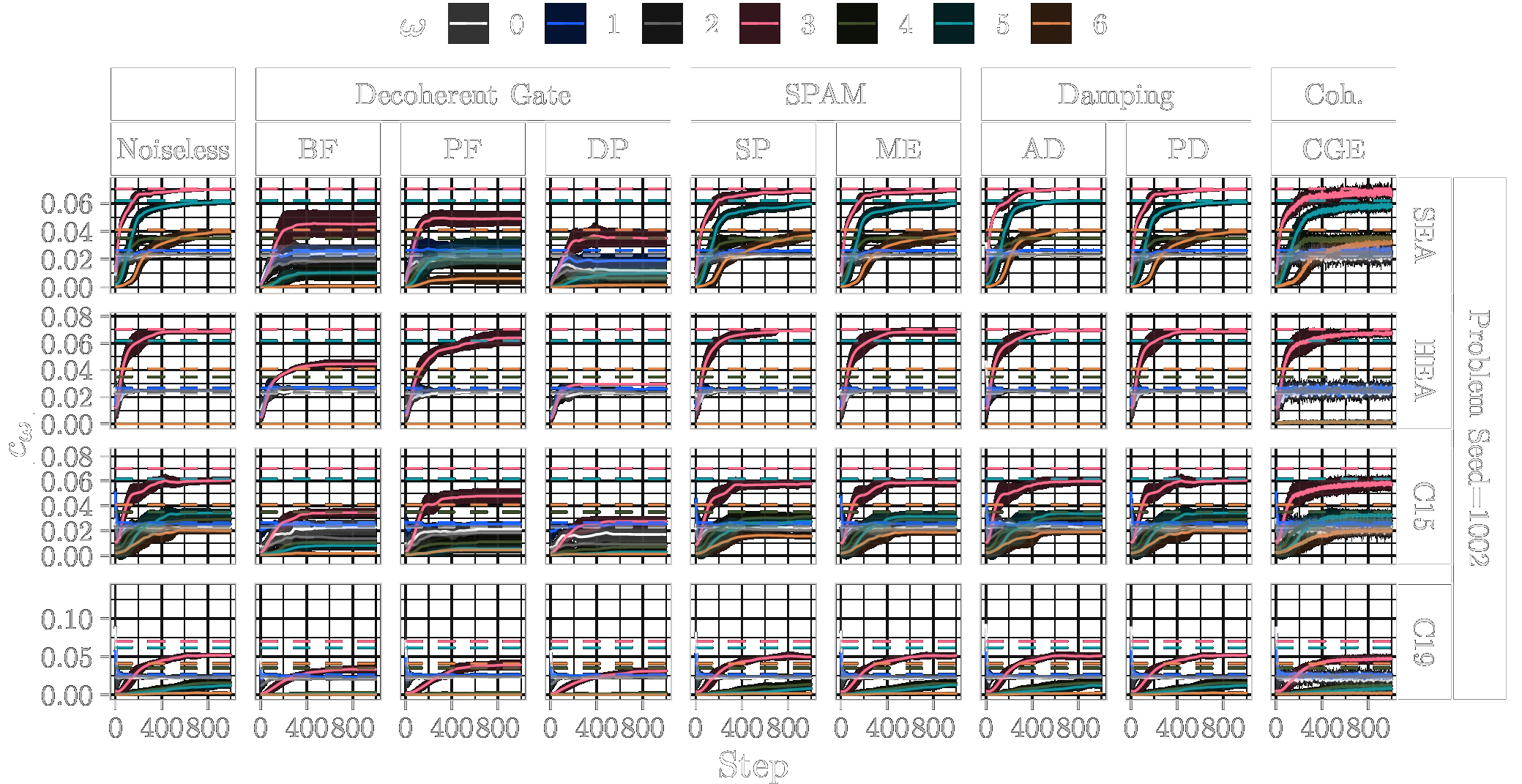

Problem instance seed 1002: Training Coefficients seed 1002 Training Coefficients seed 1002

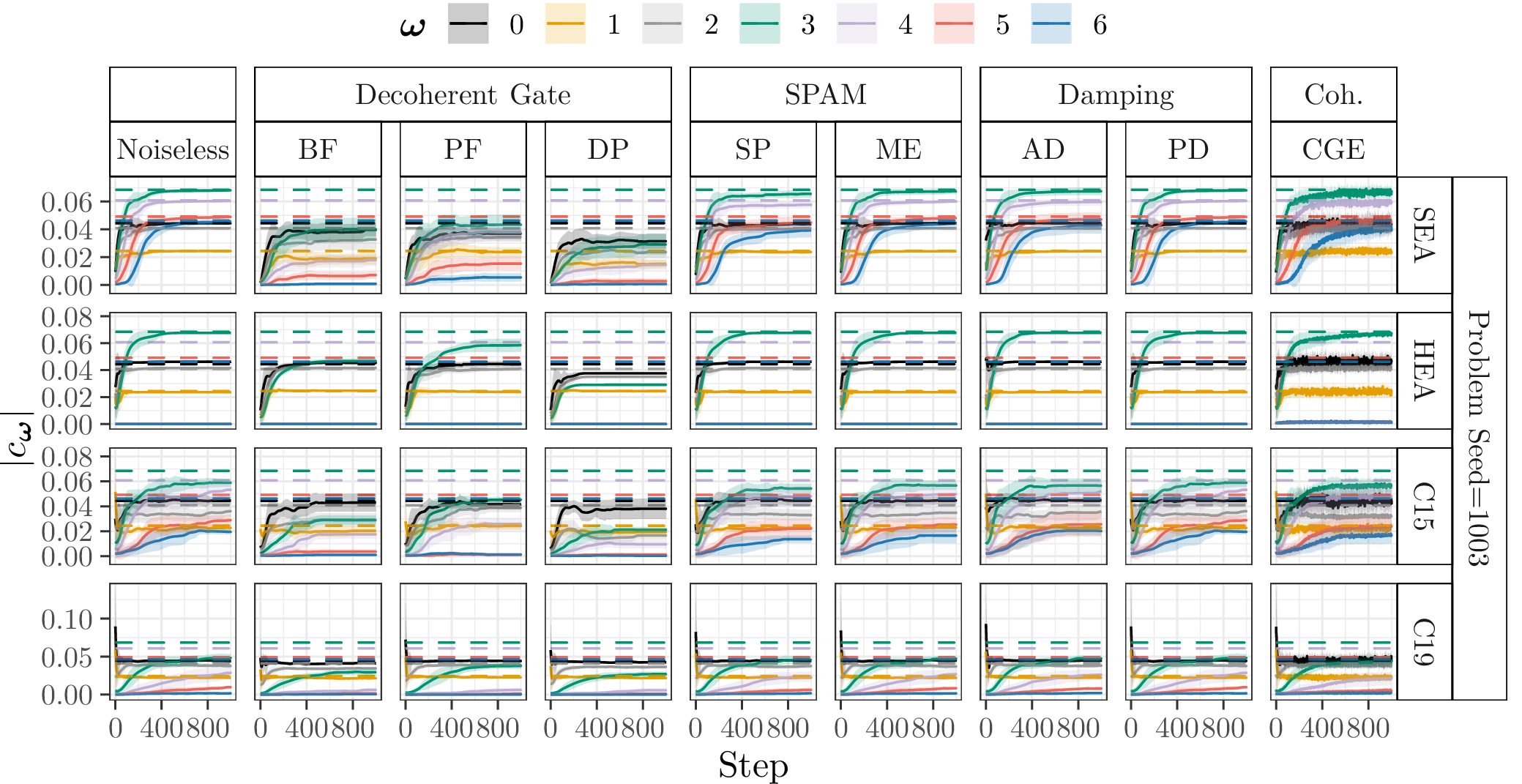

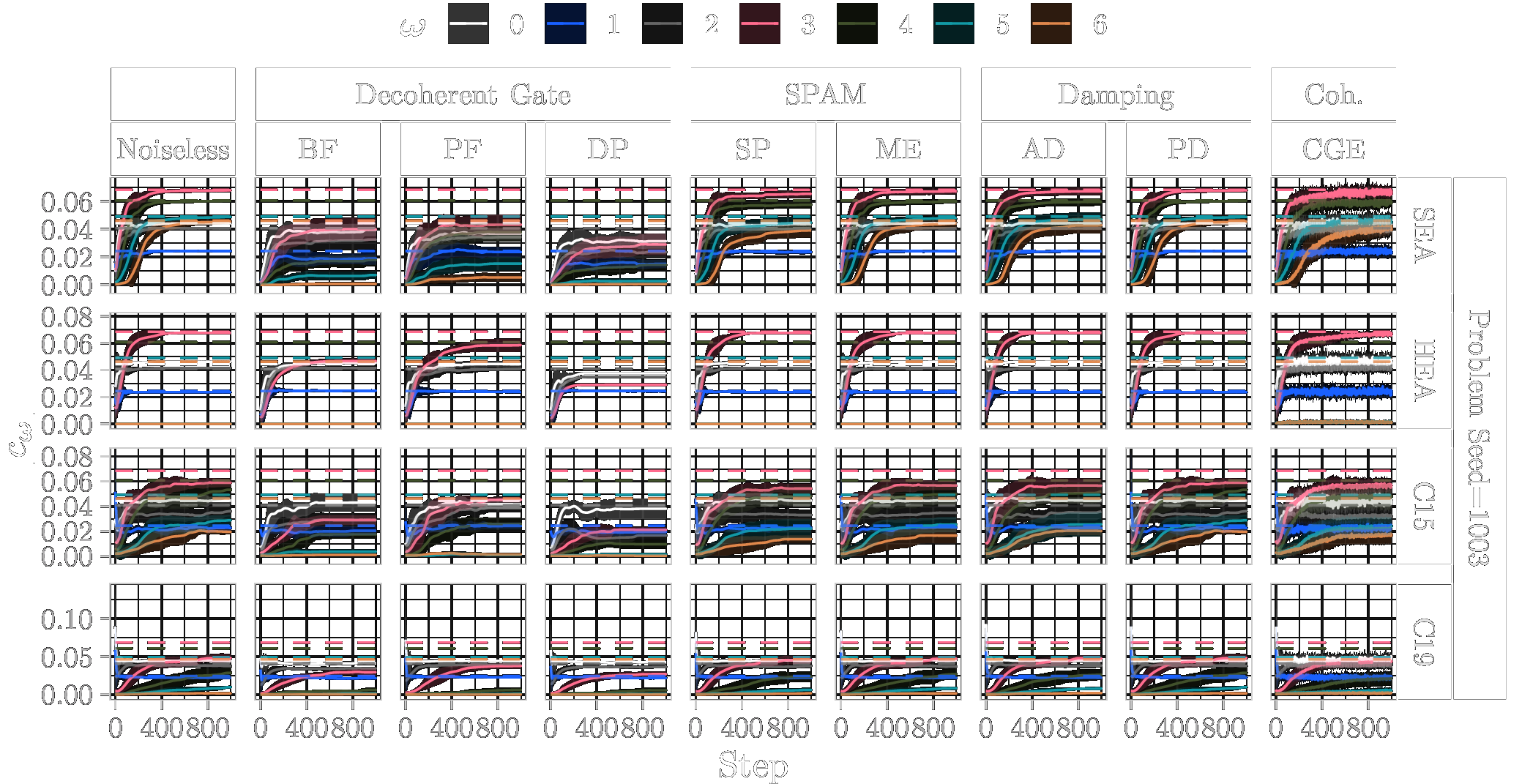

Problem instance seed 1003: Training Coefficients seed 1003 Training Coefficients seed 1003

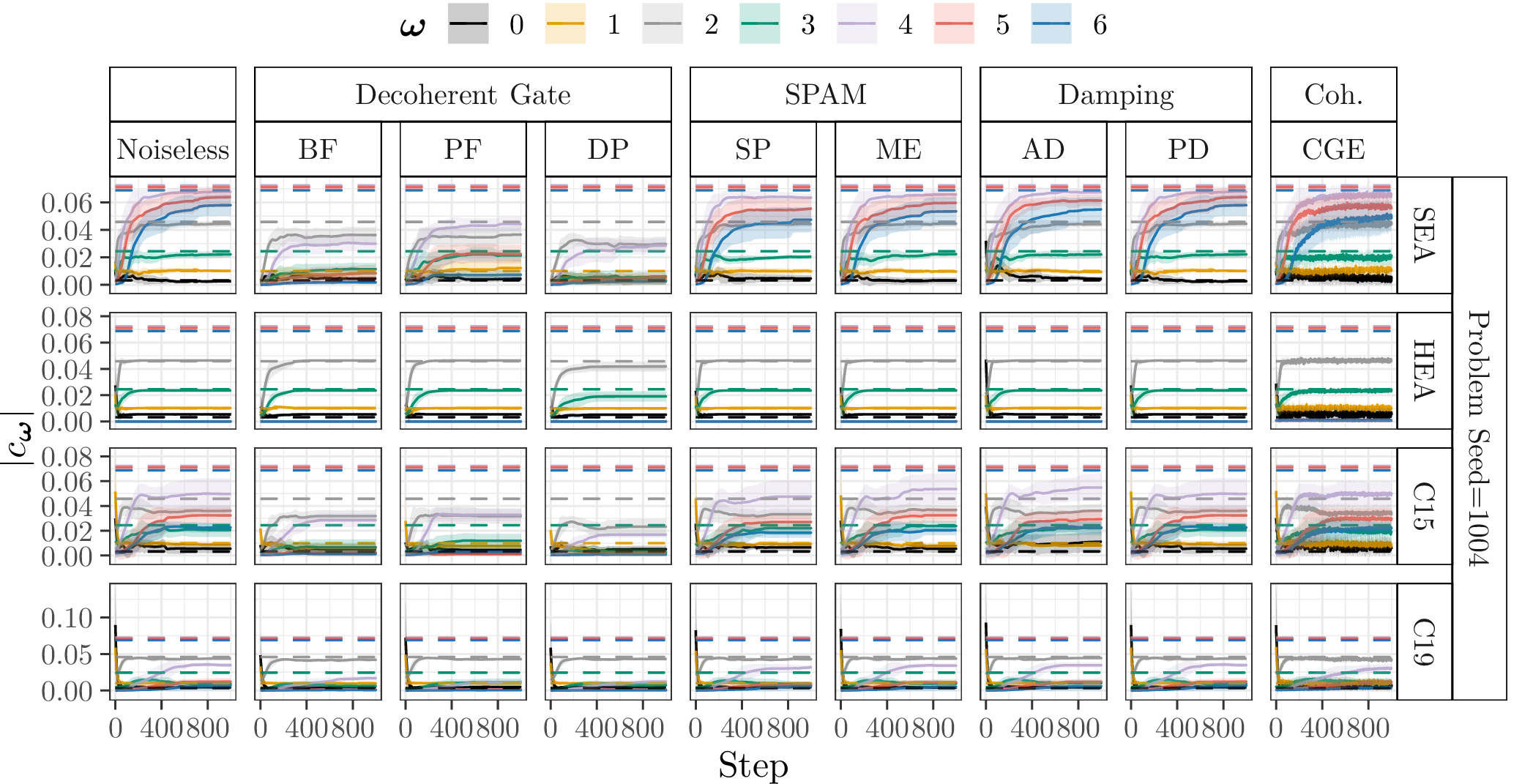

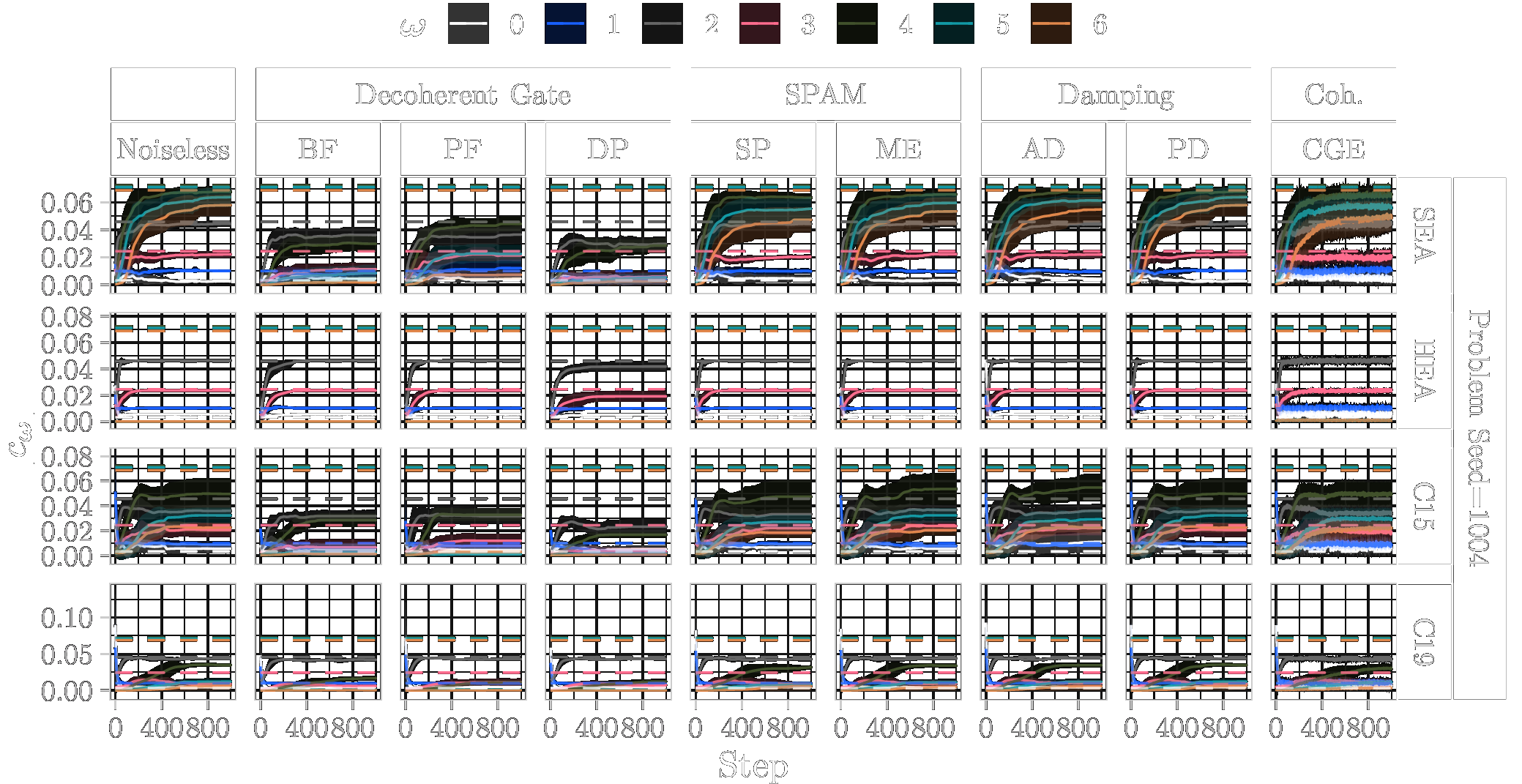

Problem instance seed 1004: Training Coefficients seed 1004 Training Coefficients seed 1004

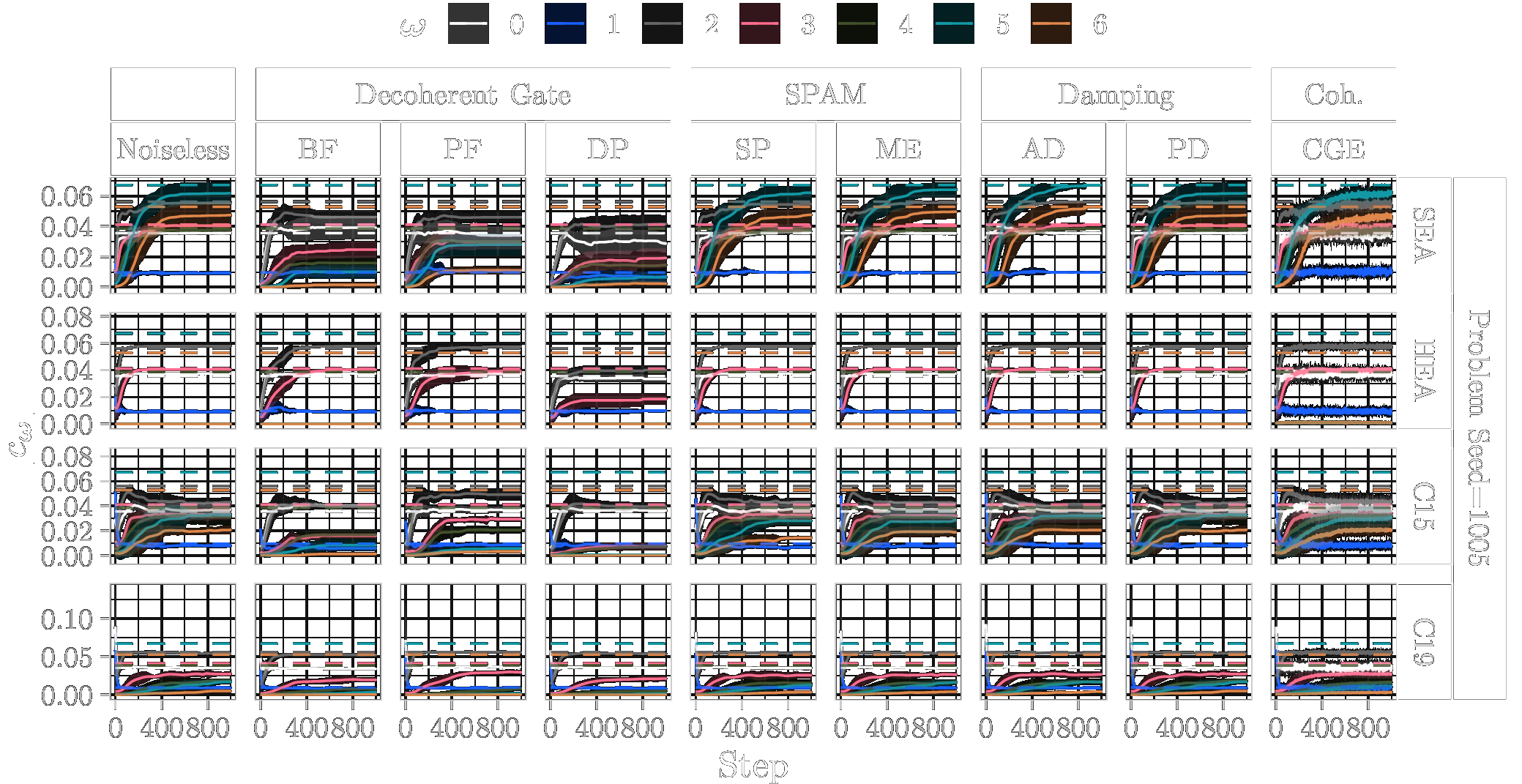

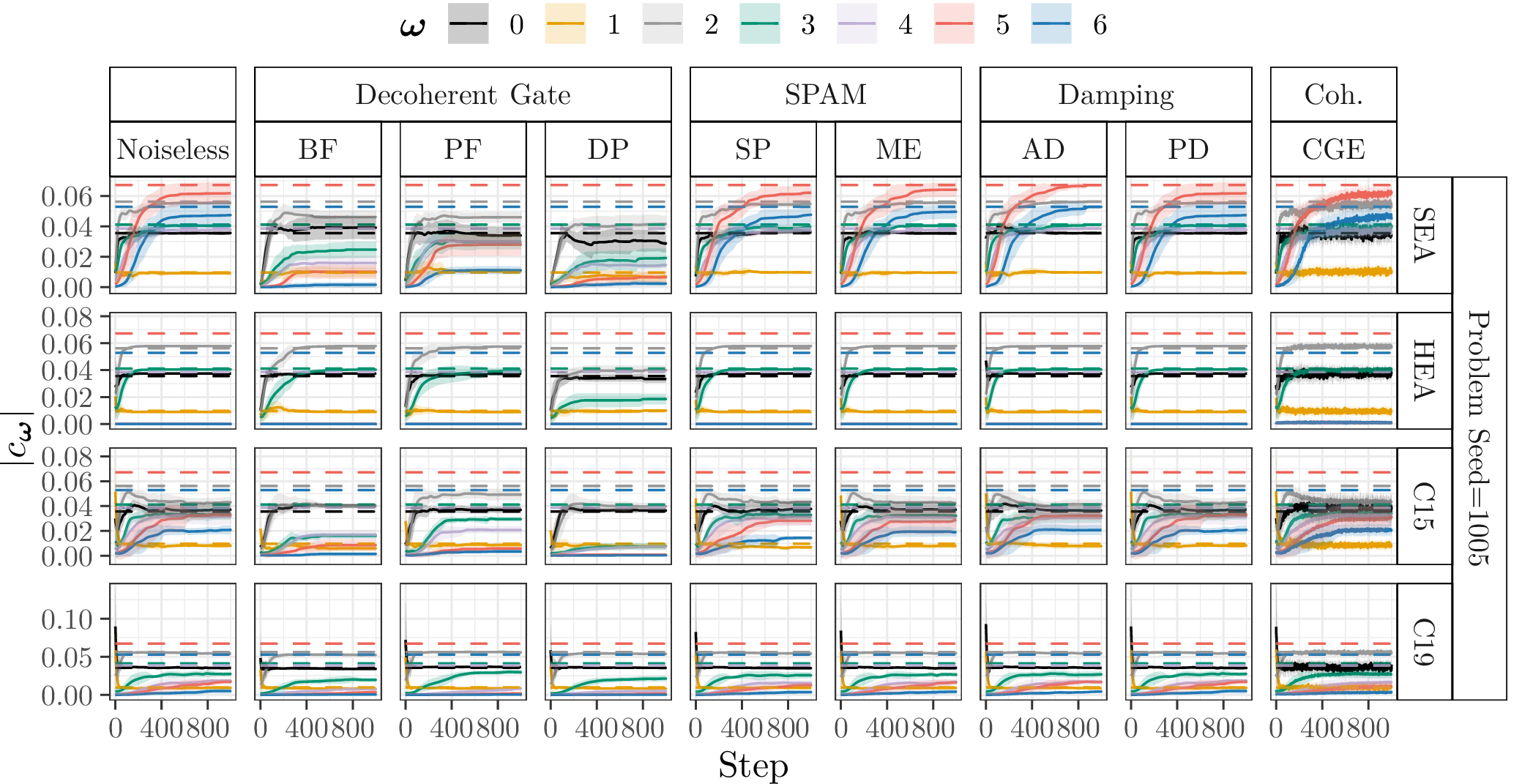

Problem instance seed 1005: Training Coefficients seed 1005 Training Coefficients seed 1005

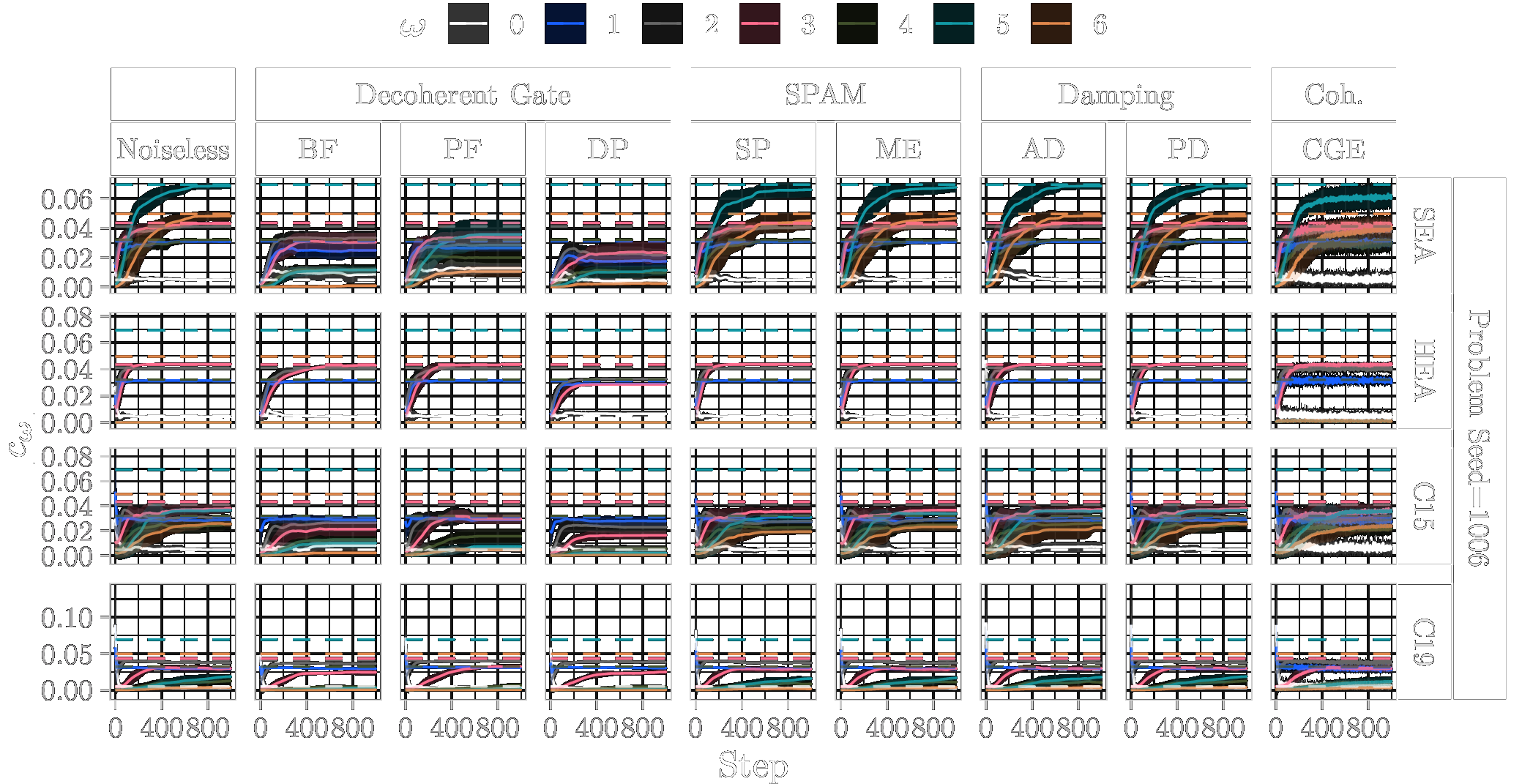

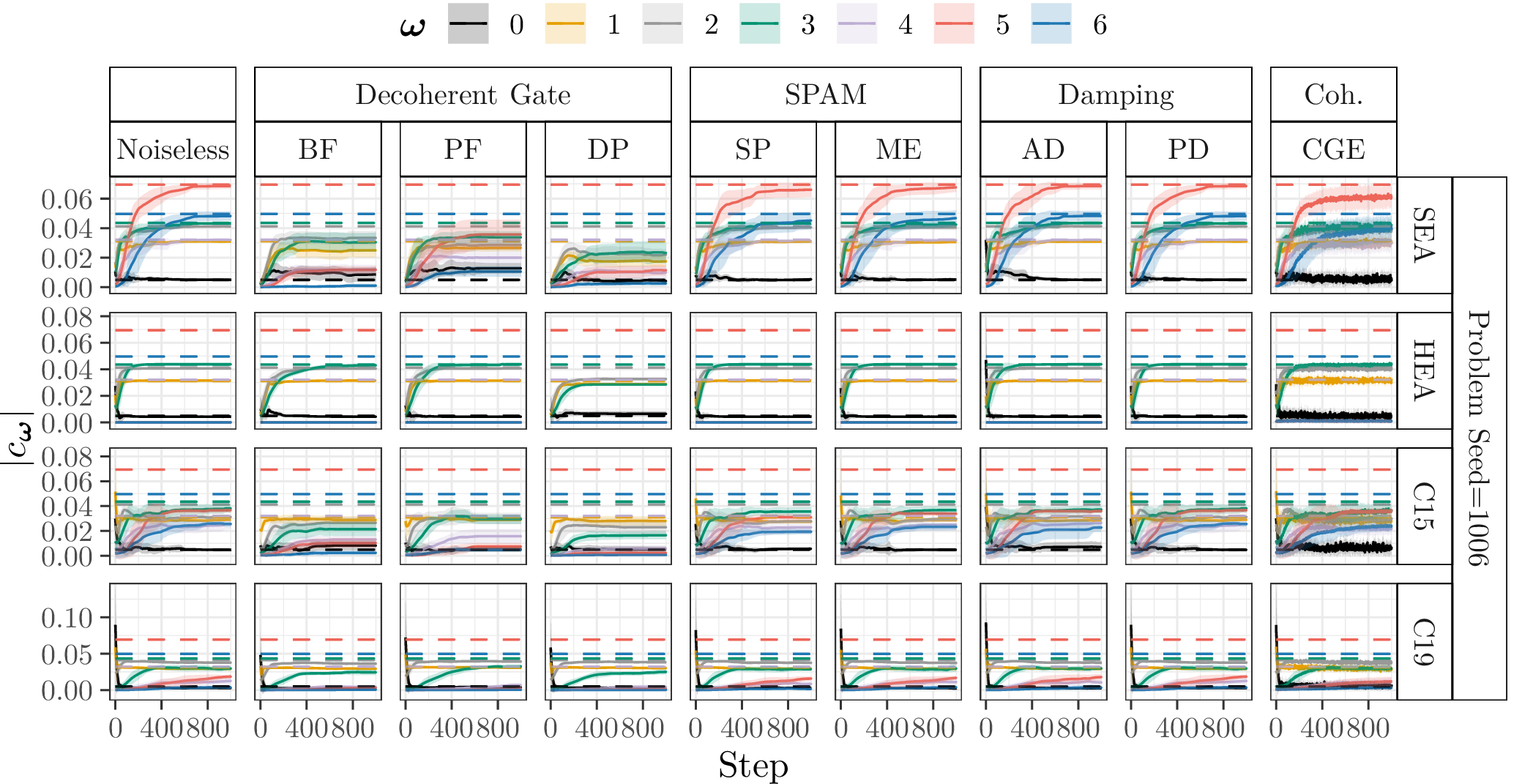

Problem instance seed 1006: Training Coefficients seed 1006 Training Coefficients seed 1006

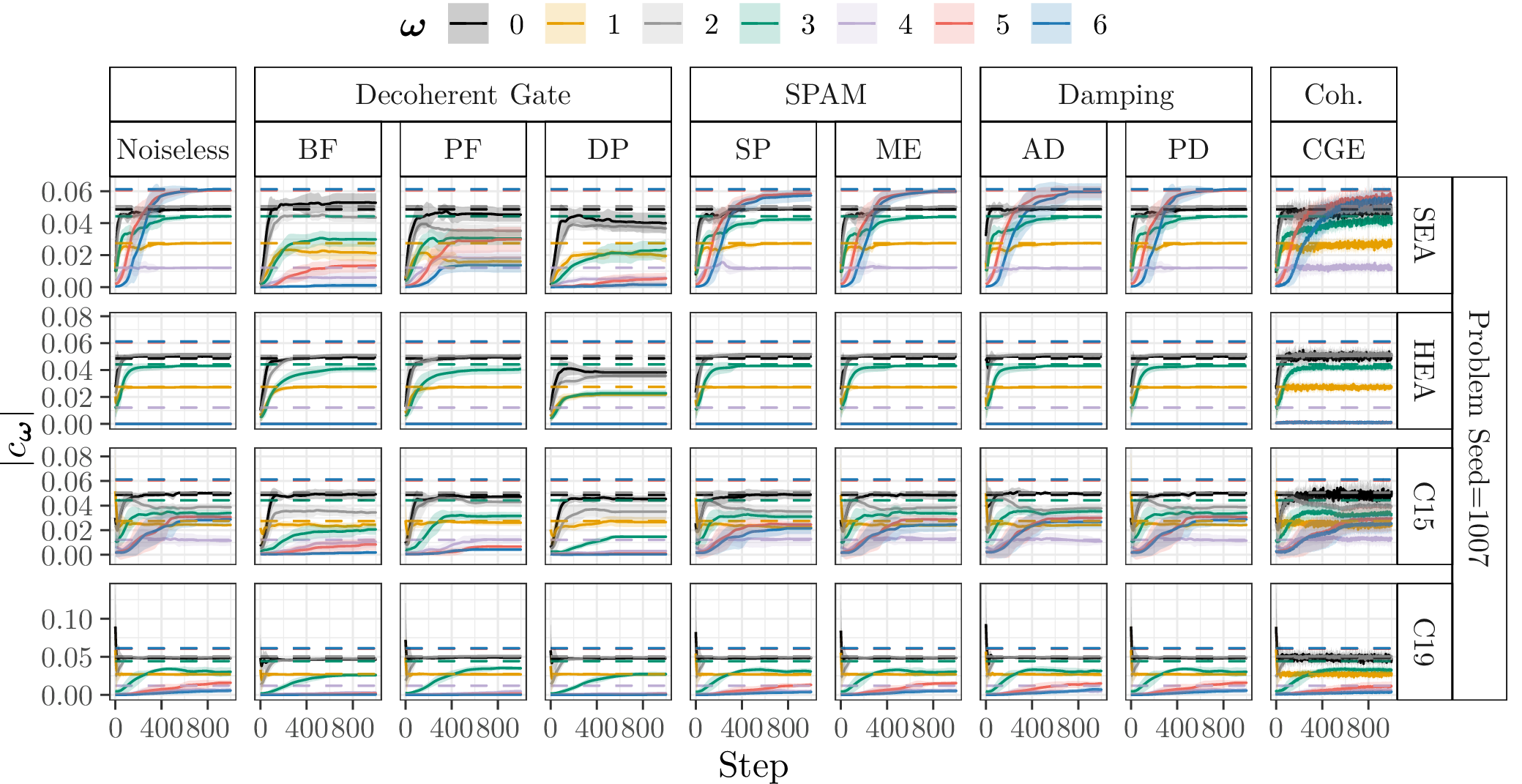

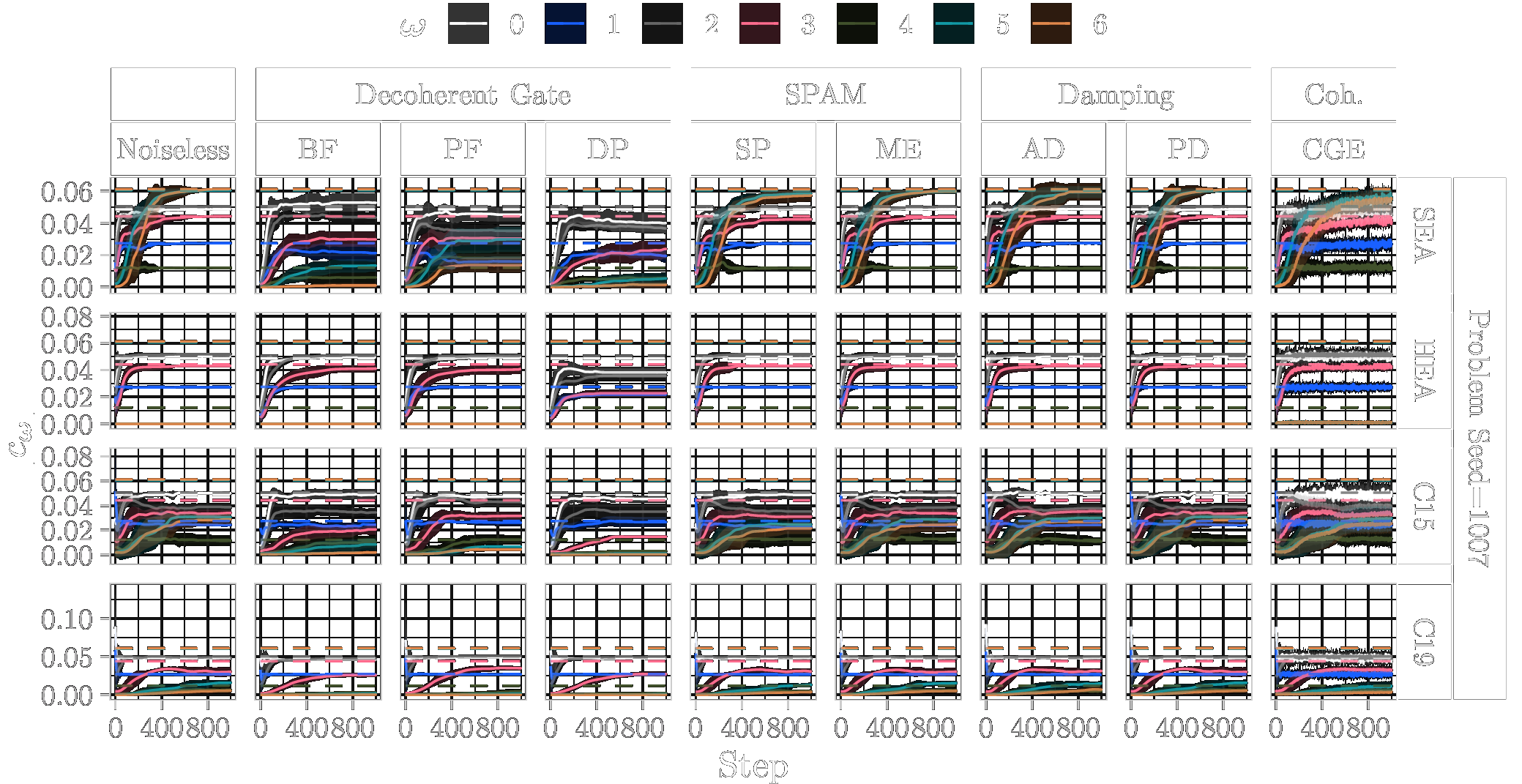

Problem instance seed 1007: Training Coefficients seed 1007 Training Coefficients seed 1007

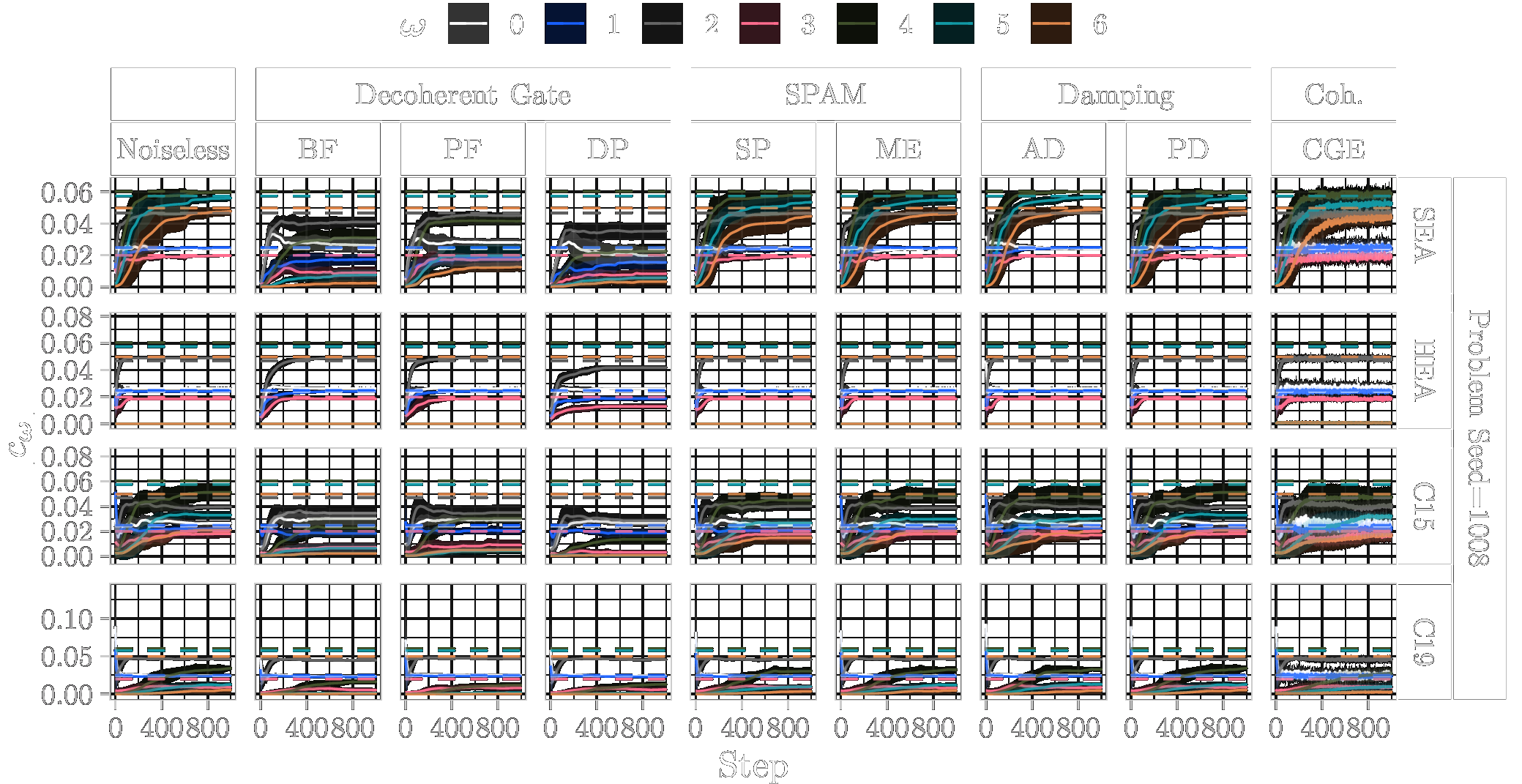

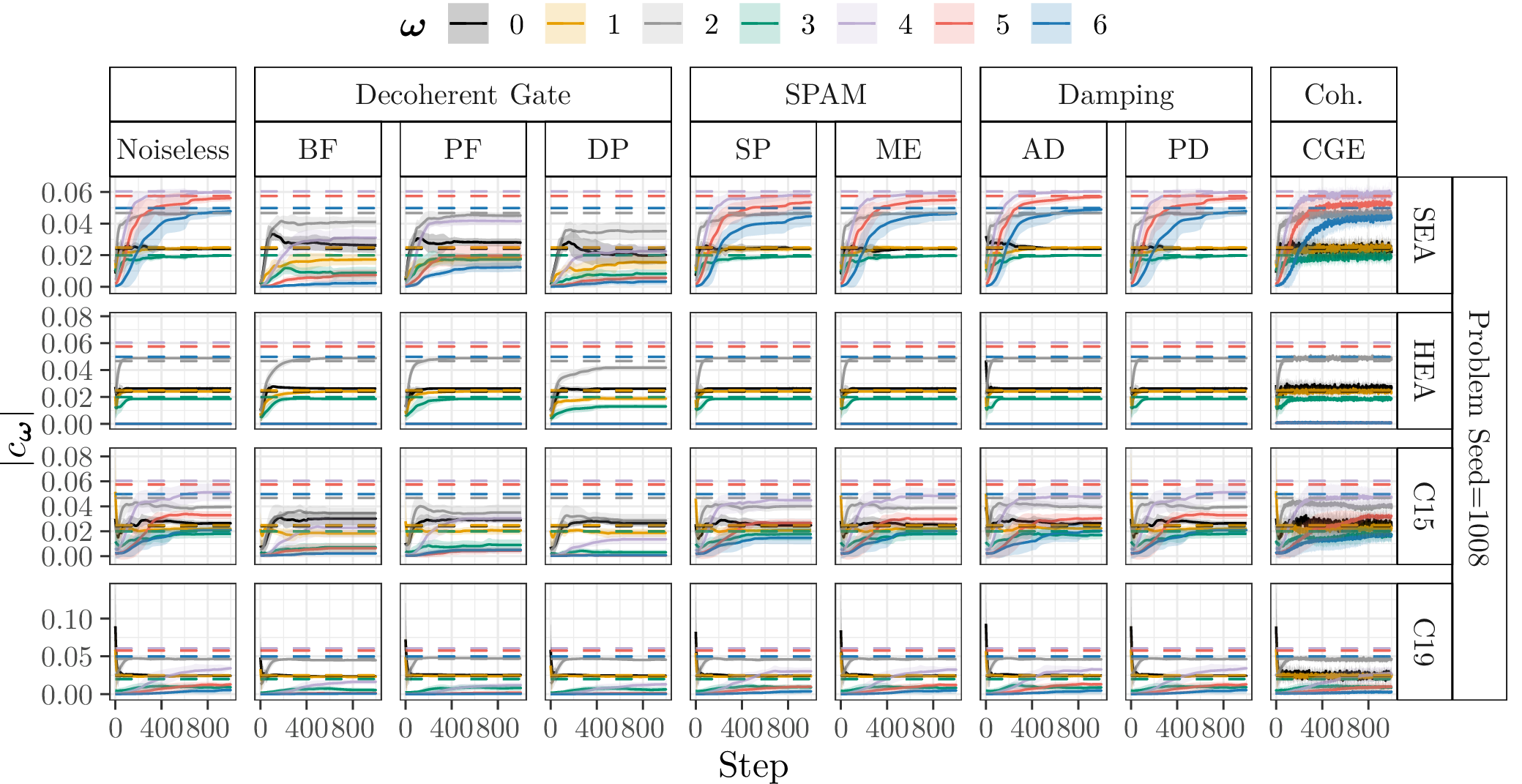

Problem instance seed 1008: Training Coefficients seed 1008 Training Coefficients seed 1008

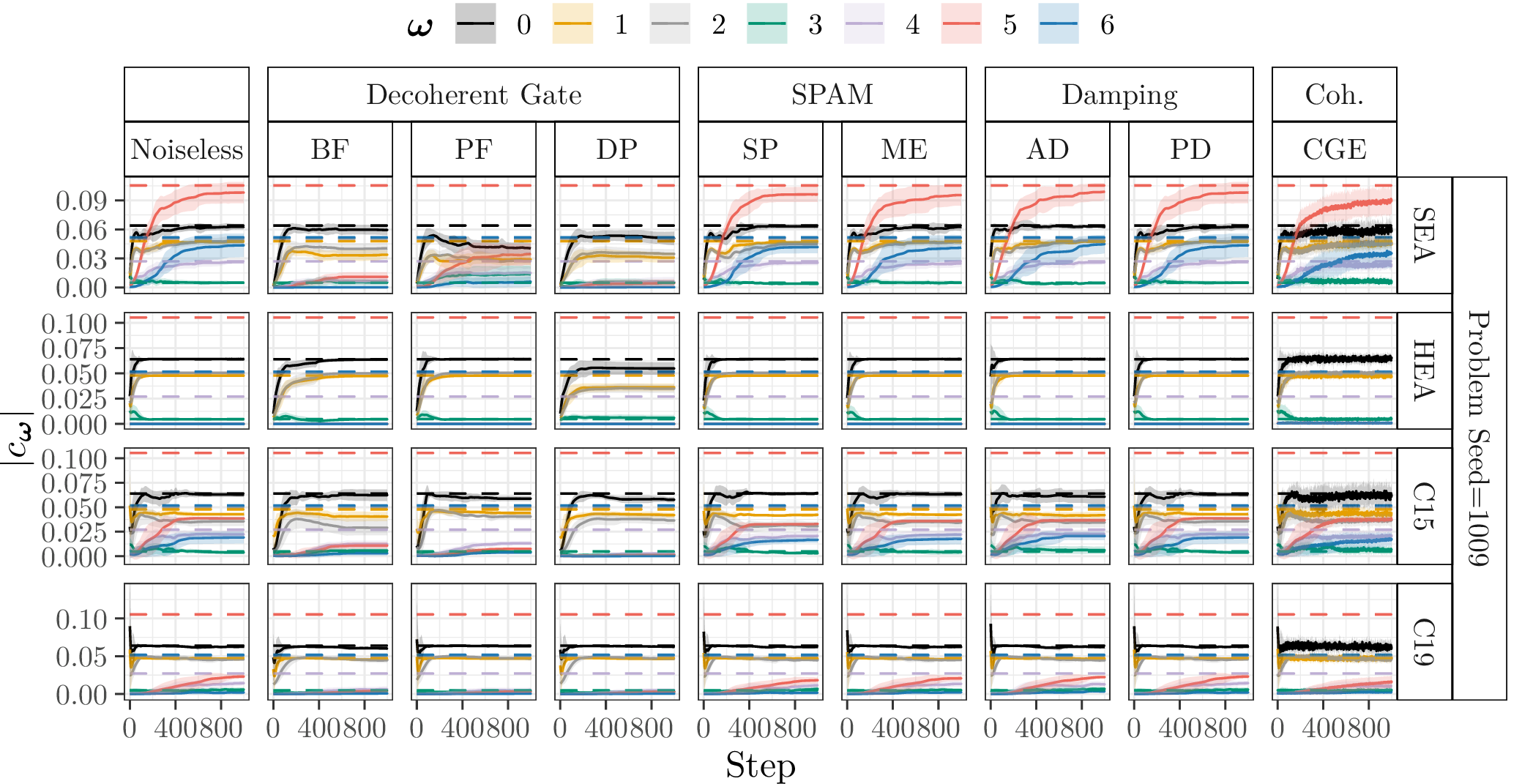

Problem instance seed 1009: Training Coefficients seed 1009 Training Coefficients seed 1009

Entanglement during Training#

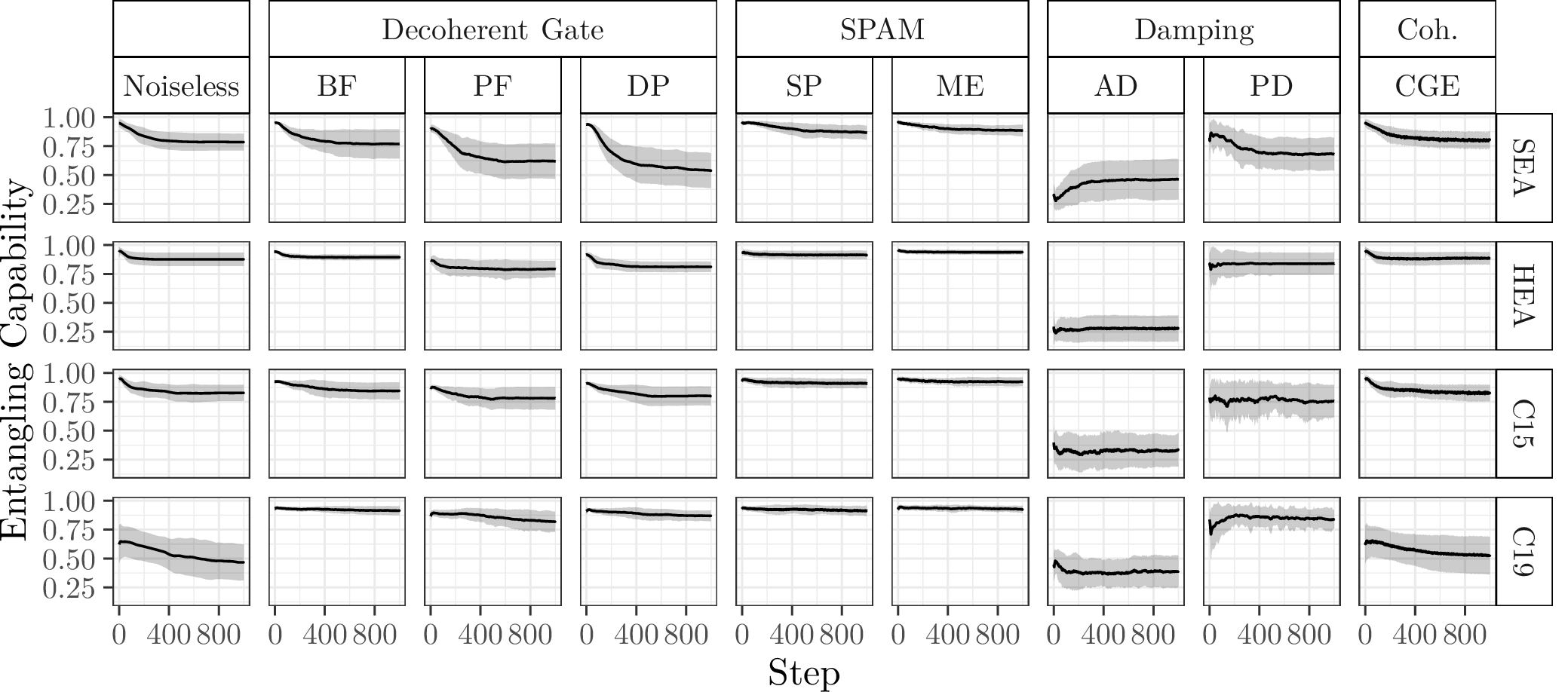

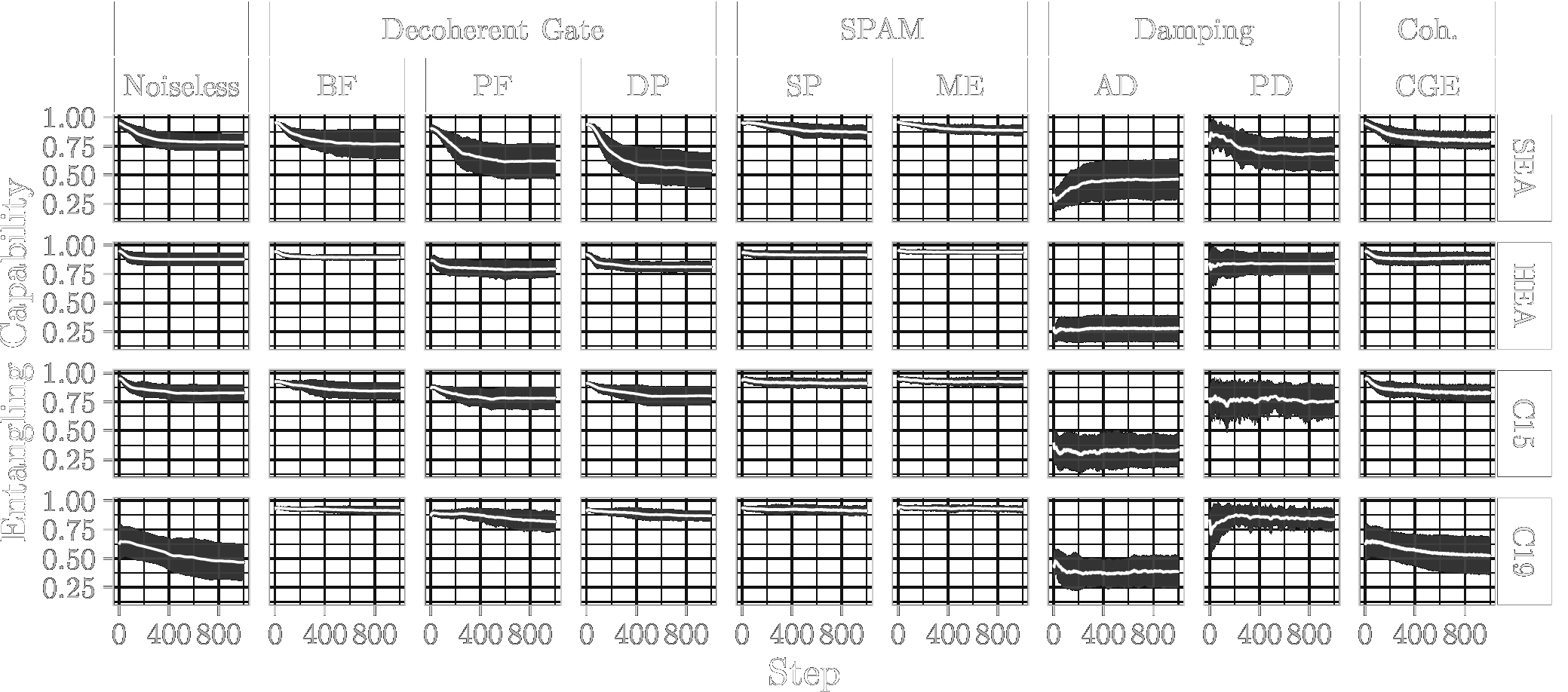

Our Figure 19 in the paper: Entanglement during training Entanglement during training

Entangling capability, assessed with the Meyer-Wallach measure for pure states (noiseless and coherent gate errors) and entanglement of formation for mixed states (decoherent-, SPAM- and damping errors) during training. Lines represent the mean over ten parameter initialisation seeds and ten problem generation seeds. Shaded areas represent the standard deviation.
